iConnectivity mioXM
UPC/EAN #888680992620
MPN #mioXM
$329.95
Save 23.3%, MSRP $430.00

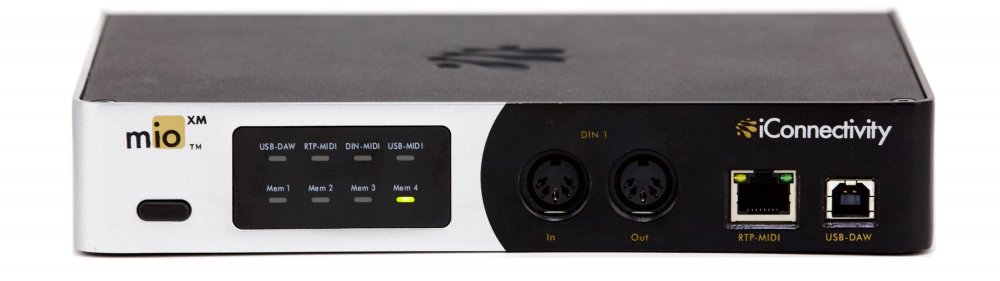

4x4 USB-MIDI interface with 12 networked MIDI ports over Ethernet, 4x 5-pin DIN Connections and 4x Class Compliant USB Ports
More connectivity than you can shake a stick at.
With mioXM? it's never been easier to get all of your MIDI gear talking to each other. Harness the power of our advanced computer and network connectivity and experience why mioXM redefines what a MIDI interface can and should do.
Connect all your MIDI devices (USB-MIDI, DIN-MIDI, RTP/Network-MIDI) and let this rugged, versatile interface put you in control of your MIDI devices and workflow.
On stage or in the studio, RTP/Network-MIDI capability means you are no longer constrained by cable length or limited USB ports. Stack multiple interfaces and computers on a network for ultimate scalability and flexibility.
With mioXM, you're able to streamline and expand your MIDI setup, and do it faster, better, and in creative and exciting new ways.
Powerful network MIDI capabilities:
Network connectivity means MIDI wherever you need it. Regular USB connectivity limits you to keeping your interface within 15ft of your computer. Network / Ethernet connectivity gives you up to 330ft / 100m connection between you and your interface.
Drop an interface in every room of your studio, or place an interface virtually anywhere in a venue.
RTP/Network-MIDI is not bound by some of the same restrictions as USB-MIDI.
Easy renaming of network ports - have them show up the way you want them to in your DAW.
Access to more than12 ports per interface.
Our unique network technology is as easy to use as USB! Enjoy your new-found MIDI power without extra headaches.
Use your 12 network MIDI ports anyway you want. Connect each of the 12 RTP-MIDI sessions to any combination of physical or virtual I/O ports. Almost any combination is possible.
Configuring mioXM:
Introducing a new version of our Auracle control software: taking the simplicity of workflow that the original Auracle introduced but now with the added deep configuration functionality that we've become known for. All the deep configuration options you asked for: MIDI merging, filtering, remapping, and deep routing are all there and super easy to use.
Presets onboard:
Need to configure your MIDI setup in multiple ways No problem!
Store and recall up to 4 presets directly on the interface, without even needing a computer!
Easily recall unique MIDI routing, filter and merging setups to preset scenes, all from the front of mioXM.
Features
4 in x 4 out 5-pin DIN-MIDI ports4x USB-MIDI Host ports support multiple USB-MIDI CLASS COMPLIANT devicesEthernet RTP-MIDI Network port - 12 virtual network ports can easily be assigned to onboard DIN and USB ports as well as any other connected computing devices. These make all MIDI devices accessible to Mac, PC, and mobile computing devices via a single cable.Connect multiple computers via expandable virtual network portsUSB Computer port supporting Mac & Windows connectivityPlug and Play - no drivers required thanks to class compliant connectivityCapacitive touch control panelUp to four user-definable presets can be stored and recalled from mioXM's control paneliConnectivity's Auracle 2.0? configuration software (downloadable for Mac & Windows) makes it simple to create and save filtering/routing/merging presetsConnect iOS devices via CCK to mioXM's USB device port, Wi-Fi (using 3rd party Wi-Fi ethernet hub), or wired ethernet connections
Specifications
Type: MIDI InterfacePorts: 4 x 4MIDI I/O: 4 x 5-pin DIN (In), 4 x 5-pin DIN (Out), 4 x USB Type A, 1 x Ethernet (RTP-MIDI)USB: 4 x Type A, 1 x Type BComputer Connectivity: USB, EthernetSoftware: iConnectivity Auracle 2.0 (Windows/Mac)Compatibility - Mac: OS X 10.11 or later, iOS (camera connection kit / Ethernet adapter required)Compatibility - Windows: Windows 7 SP1 or laterPower: 12V DC power supply (included)Height: 1.46"Width: 8.43"Depth: 5.51"Weight: 2.13 lbs.Manufacturer Part Number: mioXM
