Icon Pro Audio V1-M

UPC/EAN #4897022375720 MPN #IPA-V1M

$1399.00 (Special)

Save $76.00, Regular $1475.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

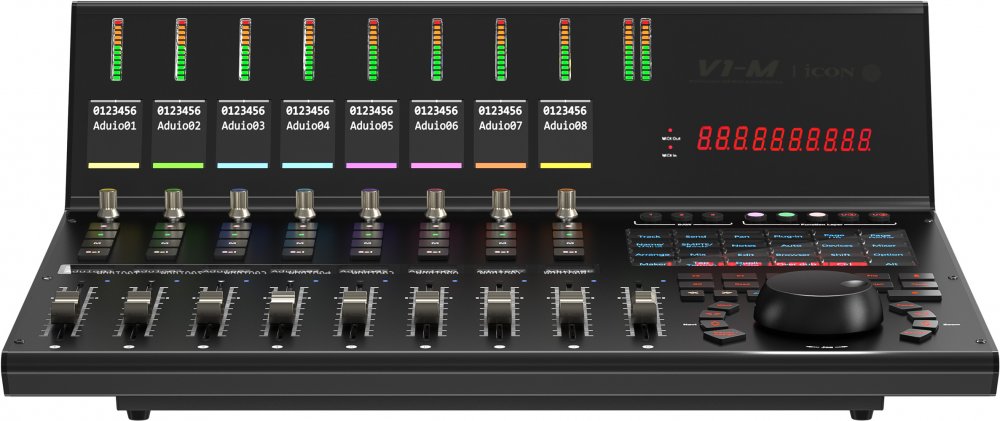

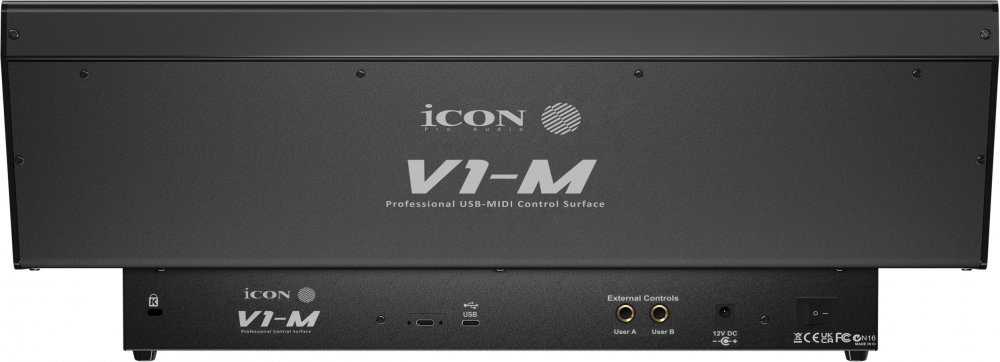

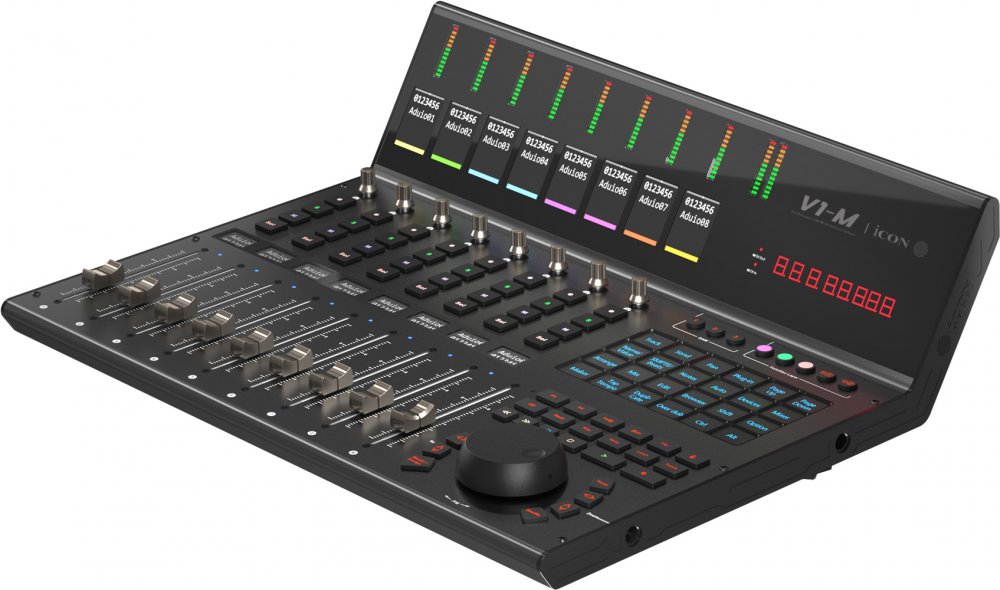

USB MIDI DAW control surface with motorized faders

The V1-M is a powerful DAW controller that gives you tactile control of your Digital Audio Workstation helping you streamline your workflow and get your projects done faster. Here are some of the features that will make the V1-M work for you:

Hands On Control: The V1-M has 8 channels of motorized faders, which can be expanded up to 64 channels (depending on your DAW) with the addition of optional V1-X DAW Control Expanders. This gives you plenty of control over your mix, even if you're working on a complex project.

Customizable Touchscreen: The V1-M has a large customizable touchscreen display with 5 color coded layers of commands that can be used to control your DAW and match your specific workflow. This makes it easy to quickly access the controls you need, without having to take your eyes off the mix.

OLED Display and Meter Bridge: The large OLED display and meter bridge show the current levels, pan positions, and other information. This makes it easy to see what's going on with your mix, even if you're not looking at the computer monitor.

Integration with popular DAWs: The V1-M is compatible with a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools. Additionally, you can run up to 3 DAWs at one time with no interruption to your workflow.

Features

9x touch-sensitive motorized faders with 12-bit resolution

Large, programmable 7 inch, 24 panel digital touch screen display showing DAW functions per 5 color modes " a potential total of 120 displayable and actionable functions

Organize DAW functions in the 24 panel touchscreen easily via ?drag and drop' in the iMAPTM " changes made in real time

Capability of connecting to 3 DAWs at one time via the DAW select buttons

Extremely hardwearing, durable and versatile

Onboard 2 inch TFT display showing channel name, control values, channel colors etc., (DAW dependent)

Attractive, modern meter bridge, featuring precise, clear and eye-catching LED meters

Additional lower 1.14 inch TFT display for each channel (some DAWs are equipped to display additional information on this screen)

Extremely high quality, large optical encoder jog wheel with very precise, smooth control for fast search, scrub etc.

8 smooth action dual-function encoder knobs (Rotate and Enter)

2-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats

Illuminated function buttons for ?Read', ?Write', ?Touch', ?Latch', ?Trim'; and ?Off' " activated/deactivated as required per DAW

Illuminated buttons for channel control including Mute, Solo and Record

6 illuminated transport buttons including Play, Stop, Record, Rewind, Fast Forward and Loop

Dedicated ?Master/Assign' button for quick switching the Master fader from the master channel to a pre-designated track

Illuminated "Zoom" button with 2 d directional keys (Left/Right & Up/Down), also used in combination with the jog wheel

Illuminated ?Focus' button which allows the user to "focus" in and adjust plug-in, EQ parameters etc. via the smooth-action jog wheel

2 illuminated "Track" buttons for selecting individual channels

2 illuminated "Bank" buttons for shifting 8-channels at a time

Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software

Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform

iMapTM software downloadable from the product page

USB C high-speed connectivity

Firmware upgrade available via USB C connection and iMap TM software

User A & User B 1/4 inch inputs for connecting footswitch pedals

Class-compliant with MacOS 10.15 or above & Windows 10 or above

Superior build quality and robust metal casing with Kensington lock port

Specifications

Connector: To computer: USB connector (standard type)
Power supply: 12V2.5A DC (Outside negative inside positive)
Current consumption: 2.5Aor less
Weight: 5.6kg (12.3lb)
Dimensions: 485(W) x384.5(D) x 178(H)mm
Dimensions: 19.09"(W) x 15.14"(D) x 7"(H)

What's in the package:
· V1 M Master MIDI Control Surface
· Type C USB Cable
· External Power Adapter
· Quick Start Guide
