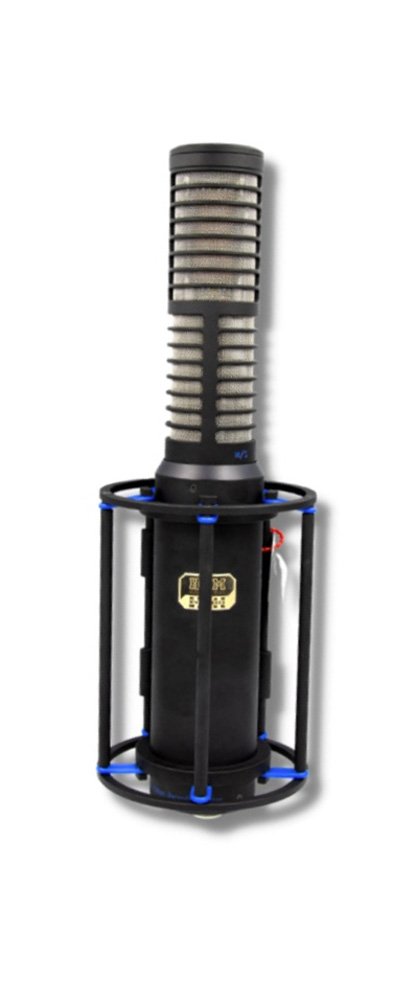

Hum Audio RS-2
MPN #RS-2
World's first remote-controlled, Stereo/M-S ribbon microphone with built-in High-End discrete microphone preamplifiers
HUM Audio Devices RS-2 is extraordinary, complete recording system with sound and features never before found in any of the top class ribbon mics. Huge, larger than life sound with a lot of depth and details, at the same time preserves classic ribbon sound flavour so much beloved by musicians and engineers.
Features
TWO MODES
Active and Passive
HIGH-END MIC PREAMPS
High End, discrete class-A mic preamps built into mic body
RIBBON MOTORS
Custom made 1,8 micron aluminium foil ribbon motors
REMOTE
CONTROLLED
It gives access to all functions via single XLR cable
LOW CUT FILTER
Switchable Low Cut Filter (50Hz, 80Hz and 120Hz)
AIR BOOST MODE
Air Boost mode gives you very smooth Pultec style HF boost
M/S MATRIX
Transformer based
M/S matrix
PHASE INVERT MODE
Phase Invert mode for both mic channels simultaneously
DIM OPTION
Very useful DIM option protects speakers during mic positioning
ROTATABLE MIC HEAD
Rotatable mic head for fast change between L/R to M/S position
HIGH GAIN & HUGE HEADROOM
High gain and huge headroom " no worry about high source SPL
ANTI-VIBRATION SYSTEM
Dual anti-vibration system (external and internal)
CUSTOM MADE CABLES
Custom made signal and power cables
LUNDAHL TRANSFORMERS
Lundahl mic and line output transformers
SHORT SIGNAL PATH
Extremely short
AUDIOPHILE QUALITY
Audiophile quality selected components
NO ELECTROLYTIC CAPACITORS
No electrolytic capacitors in signal path
Specifications
Ribbon elements: 2 x 2? long (1.8ยต aluminum foil)
Polar pattern: Figure-8
Supply: Phantom +48V (+/- 5V)
Frequency response: 30Hz " 14kHz (+/-3dB)
Sensitivity: -38dB (1V/Pa)
Max. SPL: 137dB
Output impedance: 22? (electronic)
Recommended load impedance: 150? or greater
HPF: 50Hz (6db/octave)
Dimensions:
Mic body
Length: 421.5mm
Diameter: 70mm (lower), 60mm (upper)
Suspension external diameter: 140mm
PSU Unit
Length: 245mm (incl. sockets)
Width: 128mm
Height: 44mm (without rubber feet)
Remote
Length: 123.5mm
Width: 154mm
Height: 59mm (with knobs but without rubber feet)

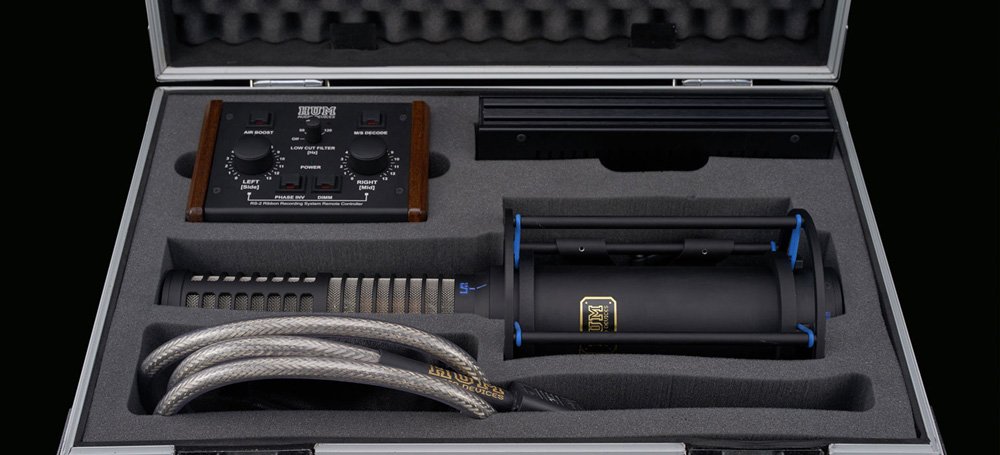

Flight Case
Length: 340mm
Width: 490mm
Height: 180mm
