Harrison Audio 32Cpre+
MPN #723501X1
500 Series mic preamp with Jensen transformer, 20"70dB gain, high/low-pass filters, 48V phantom, Hi-Z input, -20dB pad, classic warm and rich console tone.

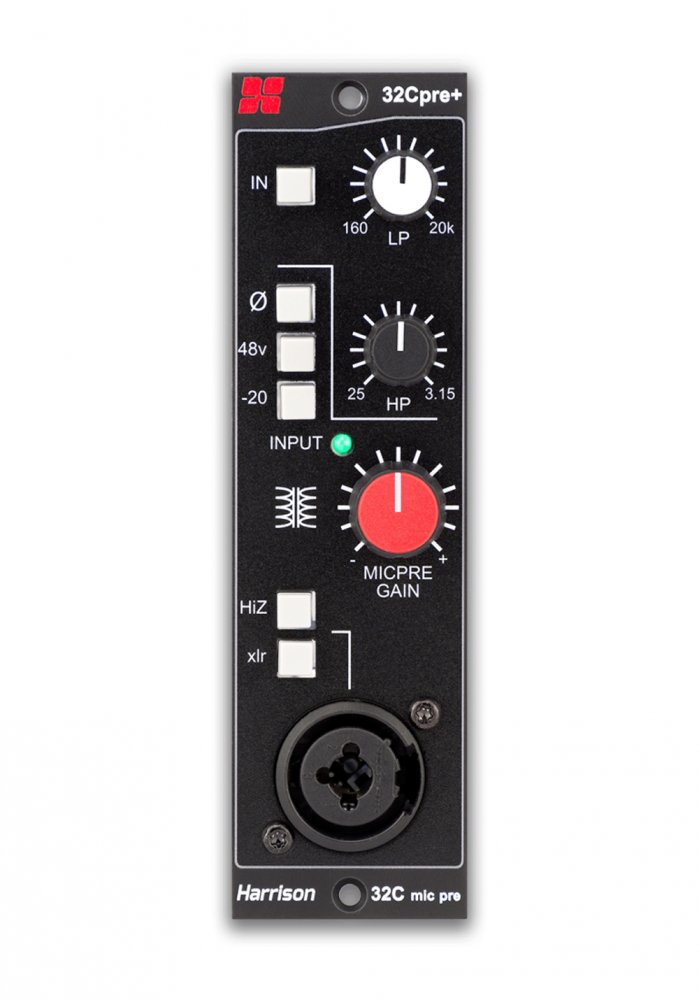

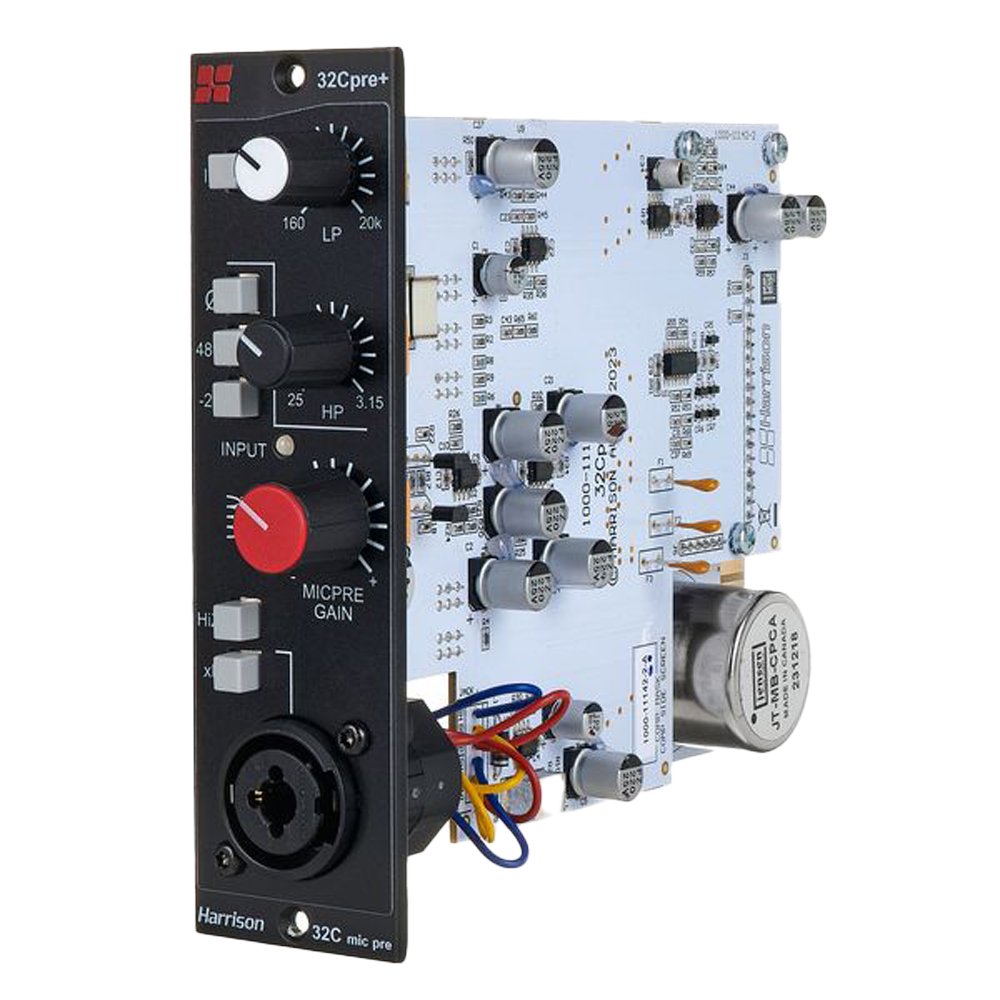

The Harrison Audio 32Cpre+ is a 500 Series microphone preamplifier that brings the renowned sound of Harrison's 32Classic studio console into a compact, modular format. At its core, the 32Cpre+ features a Jensen JT-MB-CPCA transformer-coupled mic preamp, delivering a warm, rich tone characterized by full low-end, open midrange, and smooth, natural highs.
This preamp offers a gain range from +20 to +70 dB, accommodating a wide variety of microphones, including ribbon mics. For added versatility, it includes a -20 dB pad, 48V phantom power, polarity reverse, and Hi-Z impedance switches. A front-mounted combo XLR and ¼" jack connector facilitate easy connections for both microphones and instruments without the need to access the rear panel of your 500 Series rack.
Incorporating Harrison's legendary high-pass and low-pass filters, the 32Cpre+ provides musical 12 dB/octave slopes, with the high-pass filter featuring a distinctive 3 dB resonant peak. The high-pass filter operates over a range of 25 Hz to 3.1 kHz, while the low-pass filter covers 160 Hz to 20 kHz, allowing for precise tonal shaping during recording or mixing sessions.
Features
Classic Harrison Sound: Features a Jensen transformer-coupled mic preamp, delivering the warm, rich tone characteristic of Harrison's renowned consoles.Versatile Gain Range: Provides +20 to +70 dB of smooth gain, accommodating a wide variety of microphone types, including ribbon mics.Integrated High-Pass and Low-Pass Filters: Includes musical 12 dB/octave filters, with a high-pass filter range of 25 Hz to 3.1 kHz and a low-pass filter from 160 Hz to 20 kHz.Front-Panel Connectivity: Combo XLR and ¼" jack on the front panel for convenient connection of microphones or instruments.Essential Control Features: Switches for 48V phantom power, polarity reversal, -20 dB pad, and Hi-Z impedance for flexibility in recording.Signal Monitoring: Equipped with an input overload LED to indicate signal presence and clipping for optimal levels.
Specifications
Microphone preamplifier: Jensen JT-MB-CPCA transformer-coupled designGain range: +20 dB to +70 dBHigh-Pass Filter (HPF)Frequency range: 25 Hz to 3.1 kHzSlope: 12 dB/octave with a 3 dB resonant peakLow-Pass Filter (LPF)Frequency range: 160 Hz to 20 kHzSlope: 12 dB/octaveFront panel input: Combo XLR with ¼" jack connector for microphone or instrument
