Grace Design m701
MPN #m701
Transparent preamp, ultra-low noise, wide bandwidth, balanced XLR outputs, high-pass filter, headphone amp, stereo imaging and gain control
The Grace Design m701 is a modular, high channel count audio interface designed for professional and commercial recording facilities. As our first foray into a complete interface design, the goal was to provide our very highest quality AD/DA convertion integrated into a powerful, configurable platform. The m701's modular design allows a wide array of configurations based on your needs. From simple in the box systems to large hybrid studios, the m701 is ready.
Modern Conversion
We have been building AD/DA conversion into our mic preamp and monitoring products since the early 2000's. During this time, digital audio converter chips have achieved a very mature state. Today it is hard to find a bad converter chip. But building a complete audio product around any converter still requires careful and expert audio design skills, which we have been honing for decades. Analog input and output circuitry, power supply, and clock design matter more than ever, and are what differentiates a great sounding I/O device from the rest. The m701 furthers our legacy of open and musical sounding audio hardware with a remarkably powerful studio I/O tool.
Massive I/O Capability

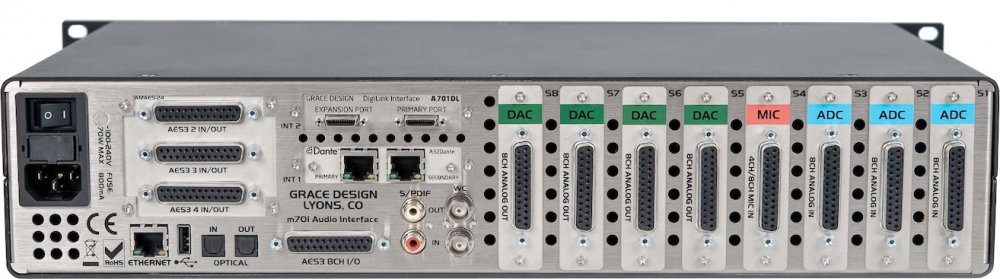

Individual 8 channel ADC and DAC modules can be installed in any combination into the 8 available card slots, allowing for a wide array of I/O combinations based on the customer's need. Digital I/O options include: two 32 channel module slots for Digilink, Dante, USB2 (upcoming), Ravenna/ AES67/ ST2110 and other future formats. A third option module slot is provided for expanding m701 digital I/O capabilities, such as an additional 24 channel AES3 I/O module, Word Clock distribution module, or future studio monitoring functionality. Included baseboard digital I/O connections are 8ch AES, 8ch ADAT and 2ch S/PDIF. Also, optional Grace Design high-quality 4ch microphone preamplifier modules can mounted in any of the 8 card slots.
GraceNet

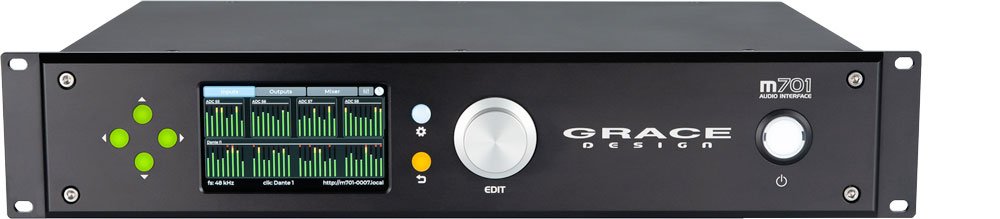

Configuring and operating the m701 is done at either the front panel or via our GraceNet web-based control software. GraceNet is built-in and automatically works with any browser " there is no software to install or update. The home screens for both the front panel hardware and GraceNet display comprehensive metering views for all inputs and outputs, as well as give access to all configuration and setup functions. GraceNet even includes an integrated control interface for Grace Design m108 microphone preamplifiers.
Cue Mixing Built-in
A built-in 32-8 mixer allows for multiple low latency cue mixes in a tracking environment, with individual mixers made available to the artist via GraceNet and a personal device (phone or tablet).
Grace Design Reliability

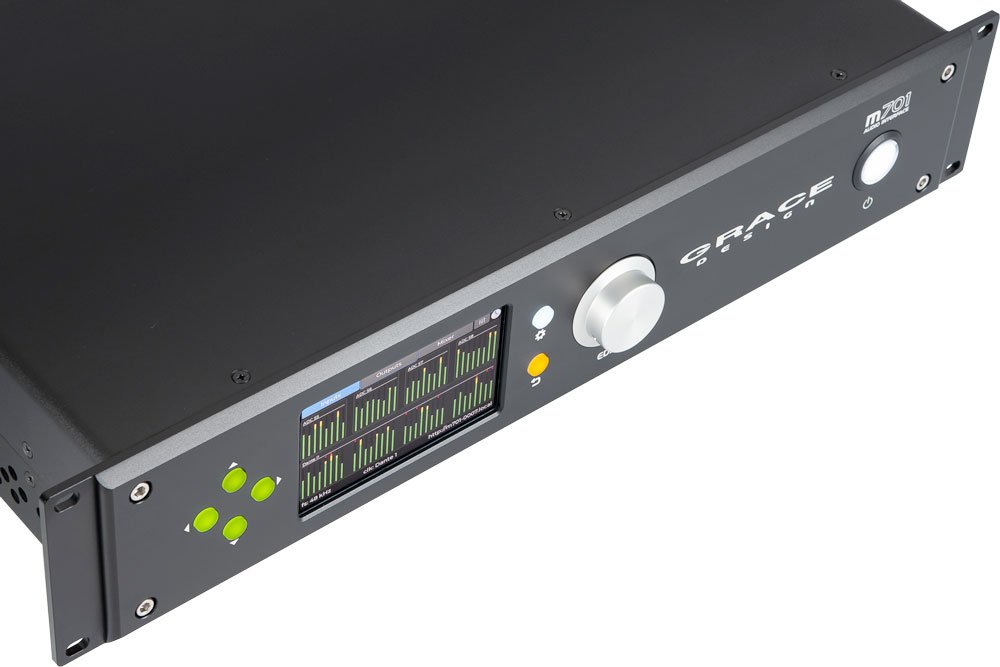

The m701 main unit is a single 2U chassis engineered with a high-quality dual redundant power supply and ultra quiet fan to maximize reliability for hardworking recording facilities. The m701 is backed by a 5 year transferrable warranty on all parts and labor.
Features
64 channel analog I/O116 channel digital I/OReference quality 8ch AD/DA modulesEight 8ch AD/DA option slotsDigilink & Dante option modulesRavenna /AES67/ ST2110 option module32-32 USB2 option module (upcoming)24ch AES3 I/O option moduleIncluded I/O: 8ch ADAT, 8ch AES3, 2ch S/PDIFHigh performance 4ch microphone preamp option moduleIntegrated control for Grace Design m108 mic preamplifiersGraceNet built-in Ethernet / web browser controlBuilt-in 32-8 low latency cue mixerSystem workflow load, edit, save, and recall
