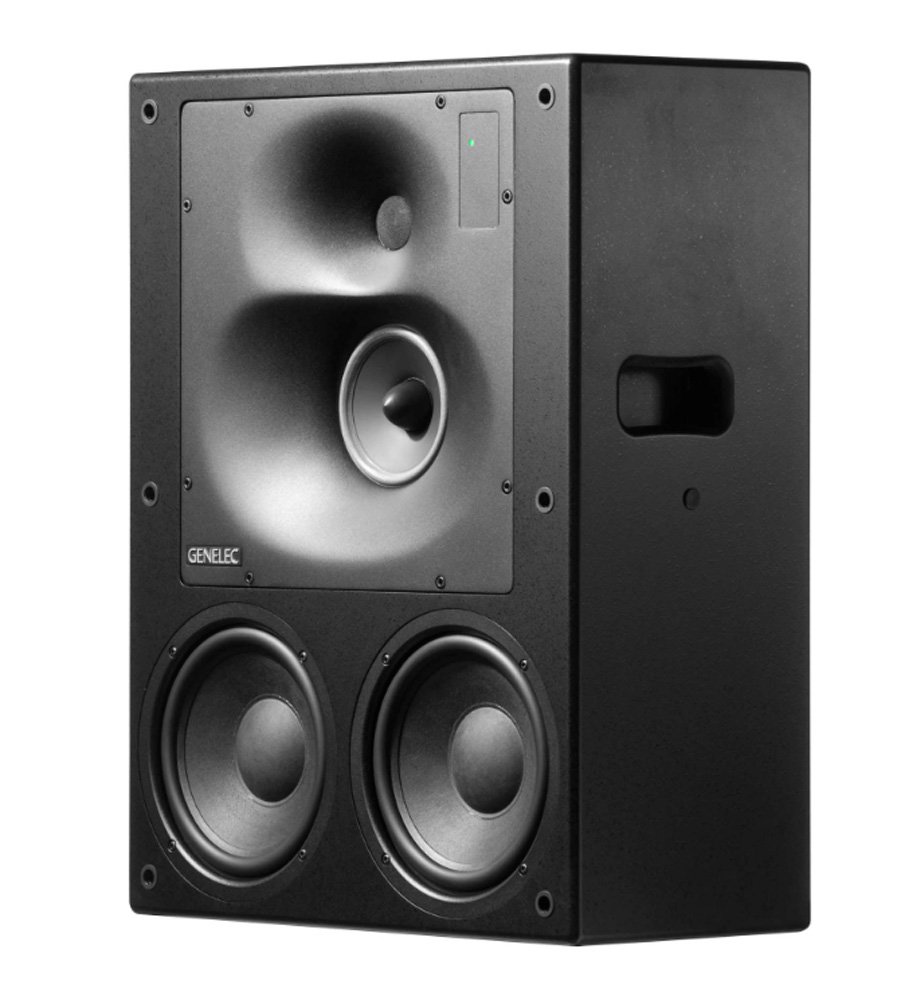

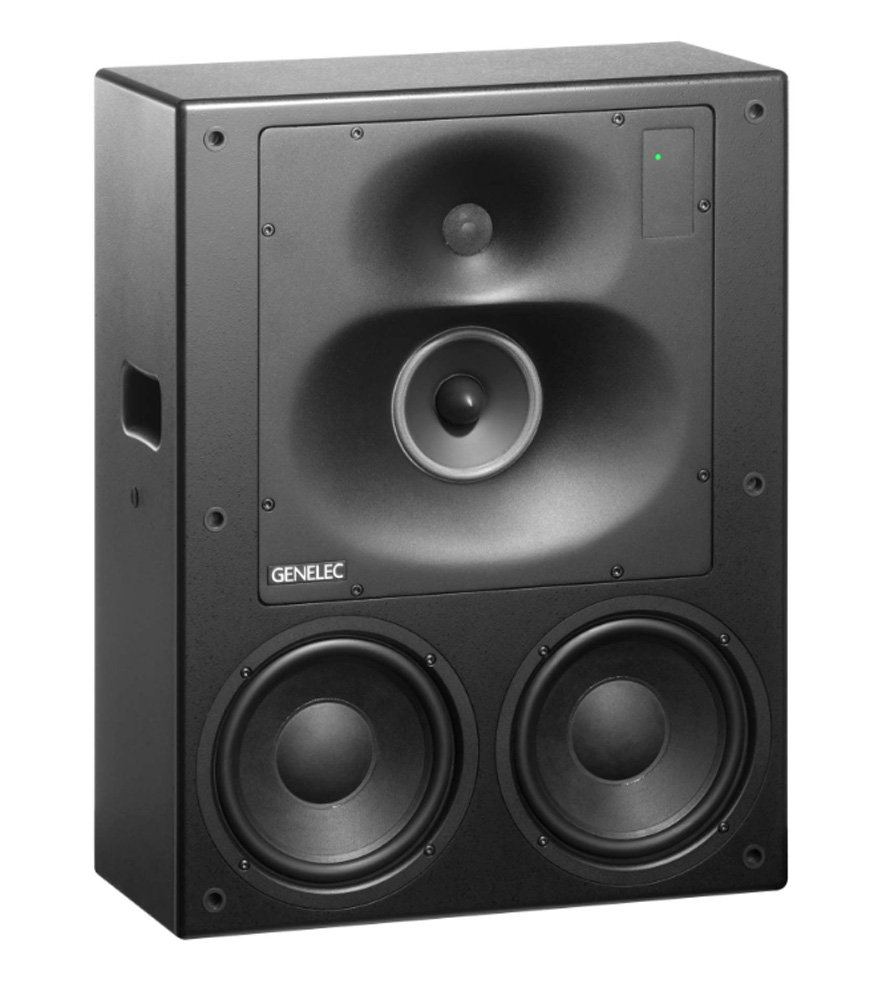

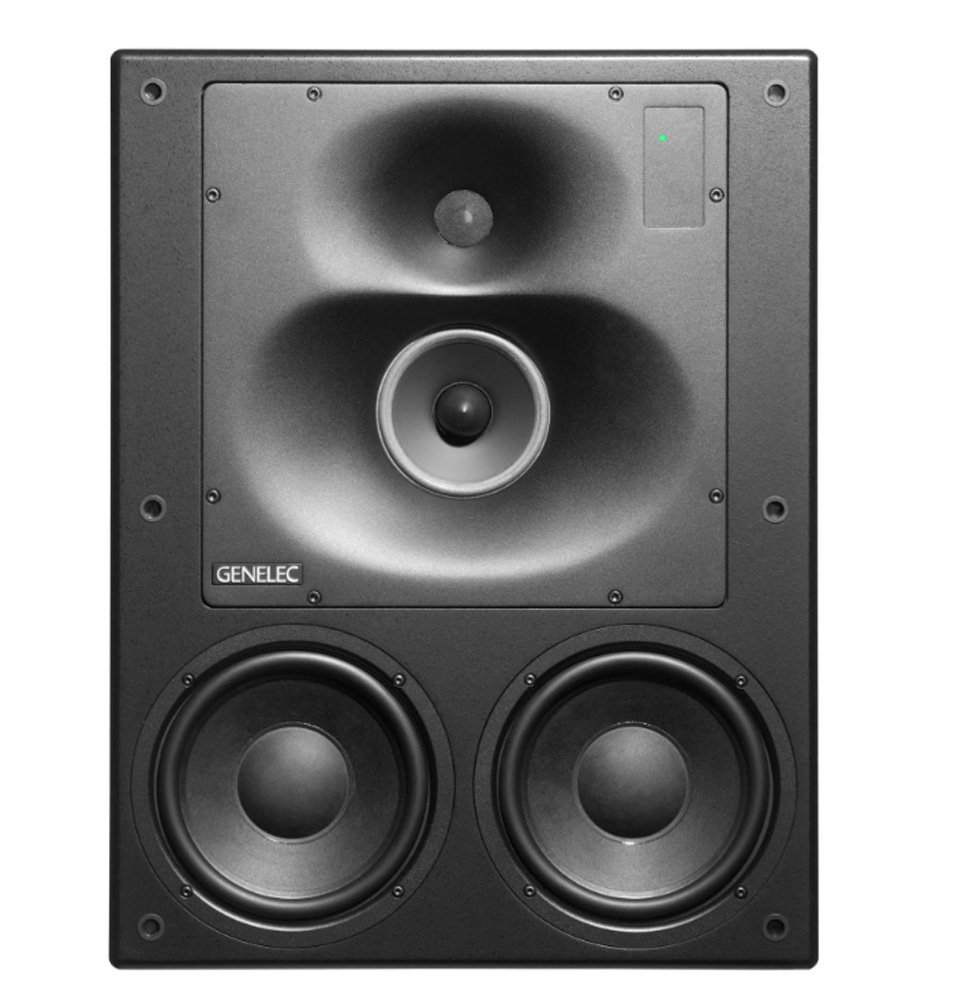

1238DFM

Neutral and uncoloured

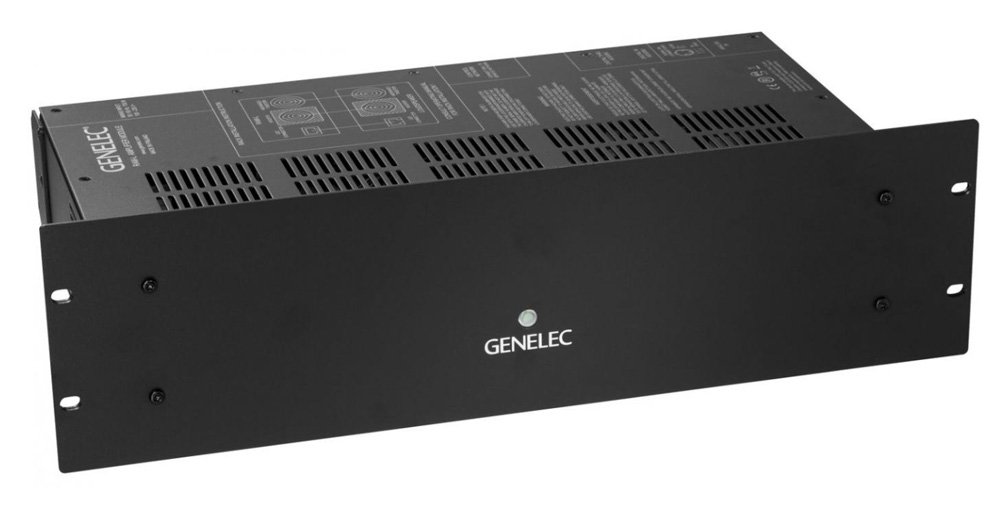

Ideal for music recording, post-production, broadcast and mastering, the 1238DF is the perfect blend of adaptable amplification, contemporary technology and classic design. With its controlled directivity, it offers all the neutrality and uncoloured performance of a large format Genelec monitor - but with a remote rack-mounting RAM-L amplification module that enables its amazingly modest and slimline cabinet size.

Configure, calibrate and control

The 1238DF is designed to partner with a complementary Genelec smart subwoofer, and integrates closely with our GLM software via which the whole system can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. From simple stereo to complex immersive formats, the 1238DF and GLM combine seamlessly to help you produce mixes with exceptional translation to other rooms and systems.

SPL

117 dB

Amplifier Power

500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB)

Frequency Response

50 Hz - 20 kHz ("-6 dB")

Accuracy of Frequency Response

± 2 dB (57 Hz - 20 kHz)

Driver Dimensions

2 x ⌀ 210 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble (view in inches)

Dimensions

H 610 x W 470 x D 235 mm, (view in inches)

Weight

36 kg / 79.4 lb

Connections

1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control

Package contains:

1 x 1238DF monitor
1 x individually calibrated RAM-L amplifier unit
1 x mains cable 1,8 m
1 x RJ45 cable 5 m
1 x RJ45 cable 10 m
2 x 4-pole Speakon cable 10 m
1 x operating manual

GLM Calibration:

Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
