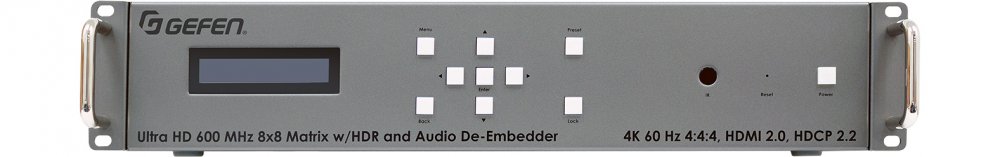

Reinforcing its commitment to provide commercial integrators with cutting-edge audio/video signal processing solutions, Gefenâ??s 4K Ultra HD 600 MHz 8-8 Matrix for HDMI supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the EXT-UHD600A-88 to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 content protection algorithms are supported. The Gefen 8-8 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution).

In addition to its full HDMI 2.0 and HDR compliance, this product incorporates new features that enhance the commercial integratorâ??s experience. Recognizing that audio is just as important as video, it features analog and digital audio outputs that break out the audio stream (2 channel analog, 2 channel PCM, and up to 5.1 channel Bitstream) from each HDMI source, allowing the de-embedded audio content to be sent to external amplifiers and music distribution systems for added impact in bars, restaurants, clubs, venues, and corporate offices. In addition, highest performance mult(more...)

Routes eight 4K sources to eight 4K displays

Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920-1200)

Supports HDCP 2.2 and 1.4

Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4

Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)

3DTV pass-through

Lip Sync pass-through

EDID Management for rapid integration of source and displays

Supports uncompressed LPCM digital audio up to 7.1 channelsÂ

Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby AtmosÂ, Dolby TrueHD, DTS:Xâ?¢, and DTS-HD Master Audioâ?¢

Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920-1200), with Gefen CAB-DVI2-HDMI-LCK DVI-to-HDMI cables (not included)

Built-in Audio De-Embedders break out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream digital audio from each HDMI output, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact.

Enhanced API facilitates added functionality with third-party control systems.<(more...)

TMDS: Maximum TMDS Clock: 600 MHz
Data Rate: Total Signal Bandwidth/Data Rate: 18 Gbps
HDMI Input Connectors: 8 x Type A 19-pin female, locking
HDMI Output Connectors: 8 x Type A 19-pin female, locking
Audio Output Connectors Digital: 8 x TOSLINK optical, 8 x RCA coaxial
Analog Audio Output Connectors: Analog L/R Audio Output Connectors: 8 x 3.5 mm mini-stereo jack
RS-232 Serial Port: 1 x DB-9, female
Ethernet: IP Control Port: 1 x RJ45
Display: OLED, 2 rows, 20 characters per row
Power Button: 1 x tact-type, bi-color blue/orange backlight
Control Buttons: 9 x tact-type
Reset Button: 1 x tact-type, recessed
IR Sensor: 1, located on front panel
IR Input / Output: 1 x 3.5 mm mini-stereo jack
IR Extender: EXT-RMT-EXTIRN (not included)
Power Connector: DC: 1 x 4-pin, locking
Power Supply: 24 VDC
Power Consumption: Not specified by the manufacturer
Operating Temperature: 32 to 122°F (0 to 50°C)
Operating Humidity: 5 to 90% RH, non-condensing
Storage Temperature: -4 to 185°F (-20 to 85°C)
Storage Humidity: 0 to 95% RH, non-condensing
MTBF: Not specified by the manufacturer
Rack Compatibility: Standard 19" (482.6 mm) rack, 2 RU high
Dimensions: 17.5 x 3.5 x 15.75" (440 x 89 x 400 mm)
Weight: 21.6 lb (9.6 kg)
