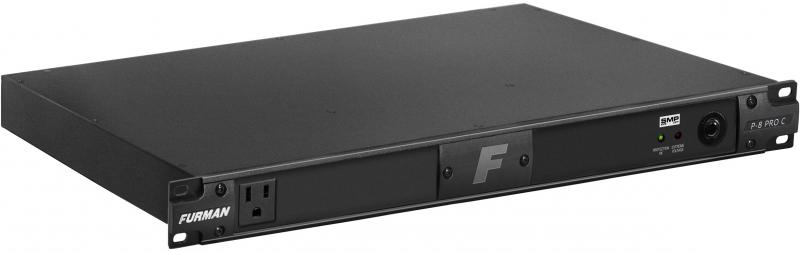

Furman P-8-PRO-C
UPC/EAN #654061041122
MPN #P-8-PRO-C
$865.00
Save 4.1%, MSRP $902.00
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.
The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.
Features
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
Wall Wart Spacing
Three widely spaced outlets accommodate bulky AC power transformers.
20 AMP Rating
20 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
Nine Total Outlets

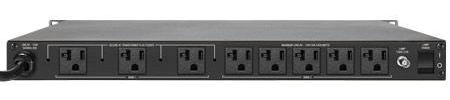

Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Specifications
Maximum Output Current: 20 ampsBNC Socket w/Switch: Rear rack lamp, 12VAC 500MA max (lamp not included)Operating Voltage: 90 to 140 VACOver Voltage Shutdown: 140 VAC typicallySpike Protection Mode: Line to neutral, zero ground leakageSpike Clamping Voltage: 188 Vpk @ 3,000 Amps (133 VAC RMS)Maximum Surge Current: 6,500 AmpsFrequency: 50/60HzNoise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10MHz. Linear attenuation curve from 0.05 - 100 ohms line impedanceDimensions: 19" W x 10.5" D x 1.75" HWeight: 11 lbs.Power Consumption: 12 wattsSafety Listing: CSA UL1449, CE, NRTL-C
Write a review about the Furman P-8-PRO-C
![]()
5.0
Cheerskie
Toronto, ON
April 23, 2020
Furman P-8-PRO-C - Great On-Stage and Home Studio
My Furman P-8-PRO-C does dual duties as a 20 Amp power conditioner on-stage as needed and also as a 15A conditioner at home. It's a sturdy and heavy built unit.
IMPORTANT - in order to use this unit with a 15A home outlet , you will need to purchase the Furman ADP-1520B 15A-20A Adapter Cord.
Read more ( 20 Amp to 15 Amp Adapter ) Otherwise you will not be able to use it with your regular home 15 amp outlet. Approx cost for adapter is $40.
