2 surge-protected outlets, 1350J energy rating, 15A, Decora faceplate, LED indicators, fits single gang box, CSA certified, protect-or-disconnect circuitry

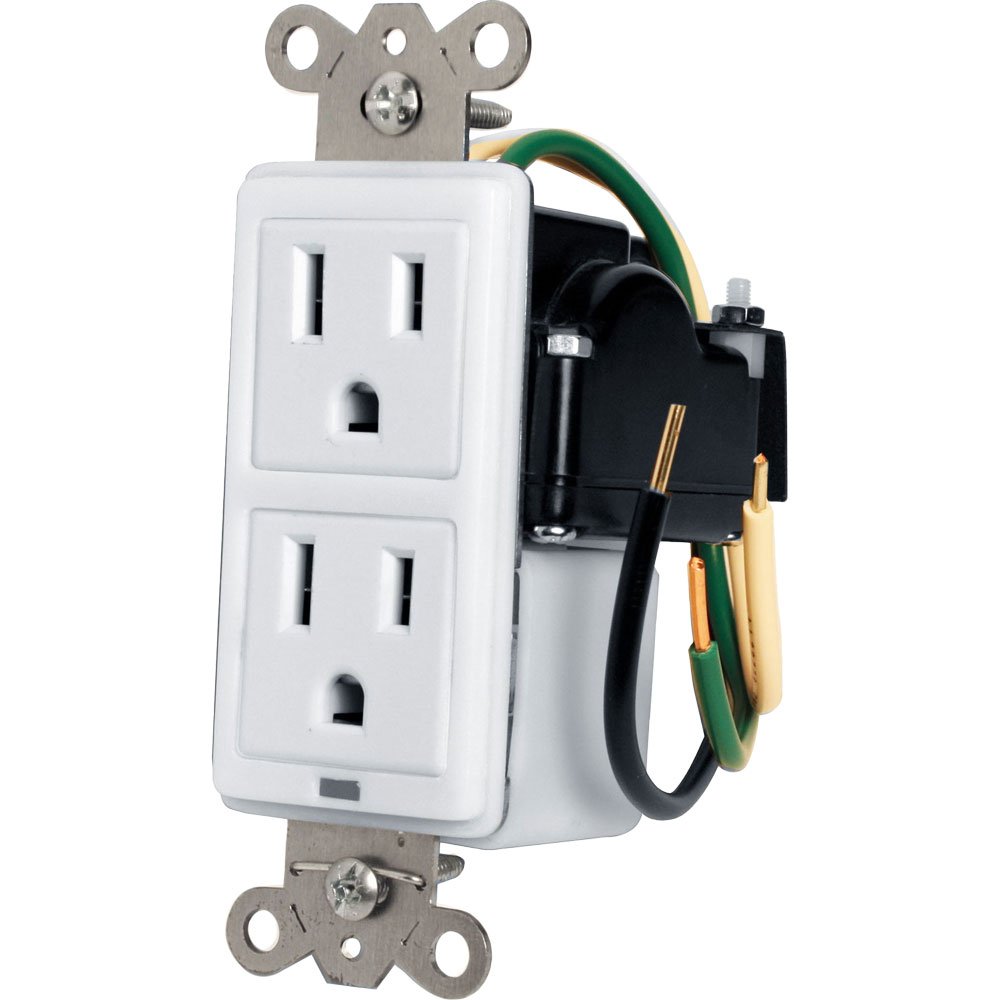

The Panamax MIW-SURGE-1G is a compact in-wall surge protection solution designed to power and protect remote electronics such as TVs, projectors, and AV equipment. It features two AC receptacles housed in a single-gang format, ideal for behind-wall mounting in standard electrical boxes-perfect for clean, code-compliant installations.
This unit offers 1350 joules of energy dissipation and includes Protect-or-Disconnect circuitry across all three protection modes (L-N, L-G, N-G), ensuring robust defense against damaging power surges. A bi-color LED indicator makes status checks simple: green confirms power, while red warns of a line fault. The Decora-style faceplate interface allows seamless integration with standard wall plates.
Caractéristiques
Two Surge-Protected Outlets: Delivers safe power to wall-mounted or remote devices using standard AC plugs.
In-Wall Installation: Mounts behind electronics using a standard single gang box for a clean, hidden setup.
Visual Status Indicators: Bi-color LED shows power status (green) and line fault (red) for easy monitoring.
Decora-Style Design: Blends into standard wall plates for a sleek, low-profile appearance.
Reliable Protection Circuitry: "Protect or Disconnect" feature safeguards against power surges across all three protection modes.
Durable Build and Safety Certified: CSA certified for code-compliant installations; includes thermal fusing for added protection.
High Surge Absorption: 1350-joule rating to protect connected equipment during power spikes.
Complete Mounting Kit Included: Ships with wire nuts and screws for easy installation.
Spécifications
General Specifications
Product Name: MIW SURGE 1G
Product Type: In wall duplex surge protector
Family: In Wall Series
Line Voltage: 120 Volts
Number of Outlets: 2
Outlet Type: 2 surge protected outlets
Mounting: Fits standard single gang plastic or metal boxes
Faceplate: Decora style interface
Dimensions: 1.375 in W x 2.25 in D x 4.25 in H
Weight: 0.36 lbs
UPC: 050616008853
Compliance: CSA certified
AC Protection Specifications
AC Protection Technology: Protect or Disconnect
Protection Modes: Line to Neutral Line to Ground Neutral to Ground
Voltage Protection Rating at 3000 Amps: 400 Volts
Energy Dissipation: 1350 Joules
Maximum Current Rating: 15 Amps
Thermal Fusing: Yes
Undervoltage Shutoff: Not applicable
Overvoltage Shutoff: Not applicable
Indicators and Controls
LED Indicator: Bi color, Green = Power On, Red = Line Fault
Installation Details
Mounting Hardware Included: 3 wire nuts and 2 pre installed mounting screws
