MPN #BAT1500-EXT

$1270.00

Save 37.1%, MSRP $2020.00
Financing available
Free shipping in Canada. Conditions

BAT1500-EXT, extends F1500-UPS runtime 4x, 8-12V 9Ah batteries, 2U rack/tower mount, rugged metal case, rear fuse, manual power switch

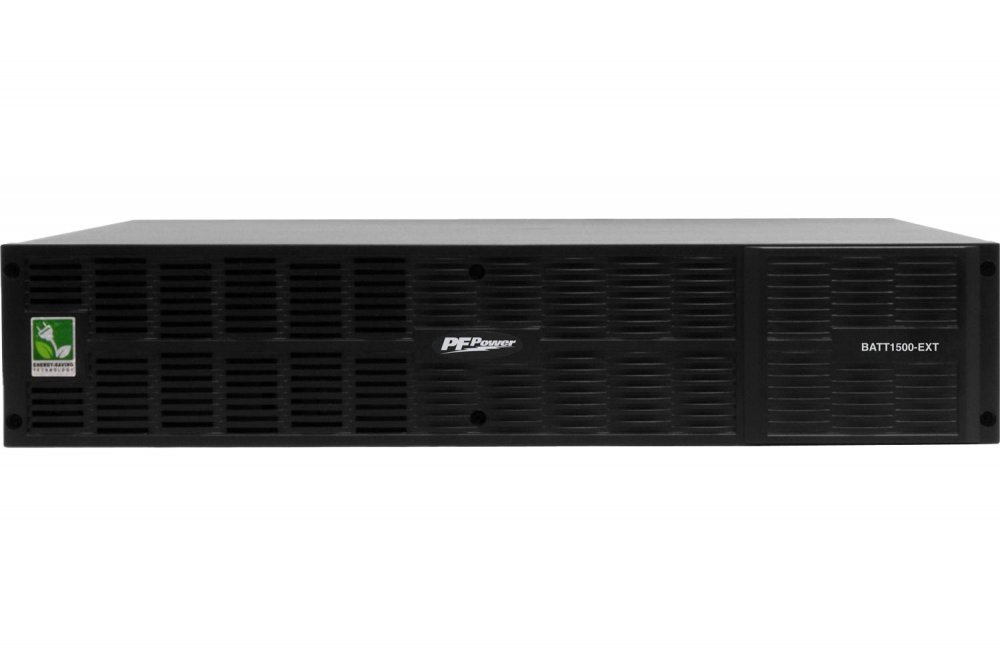

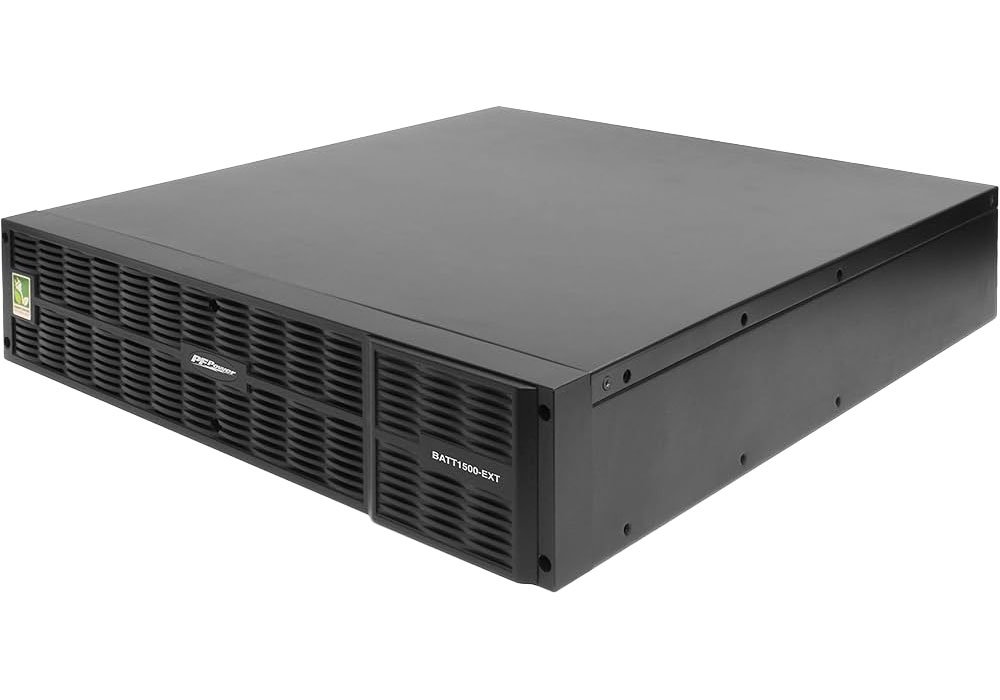

The Furman BAT1500-EXT is a high-capacity external battery pack engineered to significantly extend the runtime of the Furman F1500-UPS power conditioner. Equipped with eight 12V 9Ah batteries arranged in two serial strings, it boosts backup duration by up to four times, providing critical peace of mind during extended power outages.

Designed for flexibility and durability, the BAT1500-EXT features a 2U form factor that supports both rack and tower installations. Its robust metal housing is suited for demanding environments, while a convenient rear-panel power switch and user-replaceable fuse ensure straightforward maintenance and control. Whether in a studio, live rig, or broadcast setup, this battery pack is a reliable power extension solution.
  • Boosts Backup Runtime: Extends the battery life of the Furman F1500-UPS by up to four times.
  • Flexible Mounting: 2U design supports both rack and tower installations.
  • Durable Metal Enclosure: Built with a sturdy housing ideal for challenging environments.
  • Easy Manual Control: Includes a front power switch for quick resets and control.

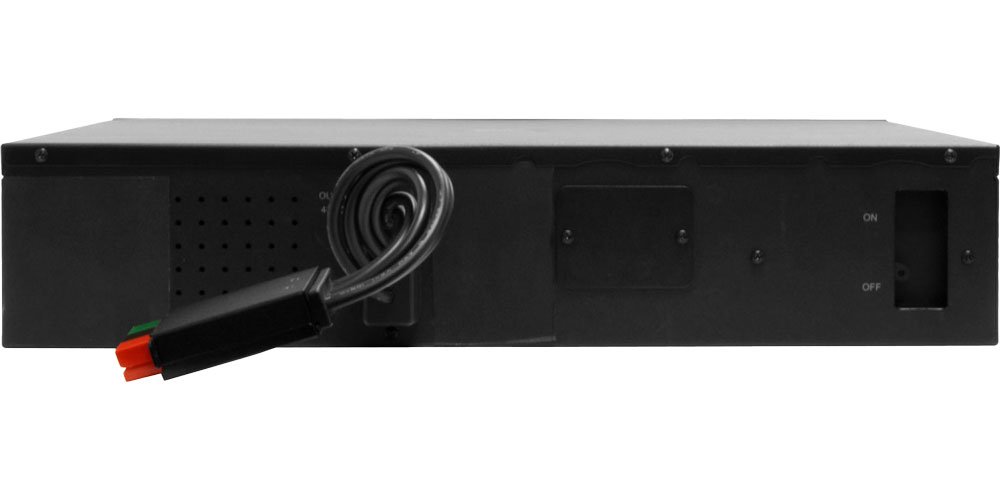

  • Convenient Fuse Access: User-replaceable fuse is located on the back panel for easy maintenance.
  • Plug-and-Play Installation: Uses simple DC connectors for fast setup with the F1500-UPS.
  • General Specifications:
  • Product Name: Furman BAT1500-EXT
  • UPC: 050616008570
  • SKU: BAT1500-EXT
  • Compatible UPS Model: Furman F1500-UPS
  • Use Case: External battery pack for extended runtime

  • Electrical Specifications:
  • Battery Type: Sealed lead-acid (SLA)
  • Battery Configuration: 8 - 12V 9Ah
  • Battery Arrangement: 2 strings of 4 in serial
  • Runtime Extension: Up to 4- runtime when used with F1500-UPS

  • Physical Specifications:
  • Form Factor: 2U rackmount/tower convertible
  • Enclosure Material: Rigid metal housing
  • Mounting: Supports both rack and tower configurations

  • Controls and Interface:
  • Power Switch: Local power switch for manual reset and control
  • Fuse: User-replaceable, located on the rear panel
  • Connections: Plug-n-play DC connectors for seamless integration with F1500-UPS
