FOSTEX  |  SKU: 11848

6301NE

Active Monitors

The Tascam 6301NE is simple active monitor featuring a newly designed 4" full range driver in a die cast aluminum enclosure. Robust and durable, the perfect talk-back solution.

$1,375.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving "auto stand-by" function. The electrically balanced version used to be offered only in North America, but now worldwide.

Features

20W D-class power amplifier for higher output level and less power consumption with no heat sink

Dedicated 4-inch full range driver for clear audio reproduction

Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series

Flat panel design to avoid inadvertent power-off or level change

Auto Stand-by mode (compliant to ErP directive) for energy saving

Detachable IEC type power inlet with multi-voltage power handling

Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments

Specifications

SPEAKER SECTION

Enclosure type:

closed

Unit:

4" full range

Frequency response:

70 Hz - 15k Hz

Sound Pressure Level:

85dB / W (1m)

Maximum SPL:

98dB

AMPLIFIER SECTION

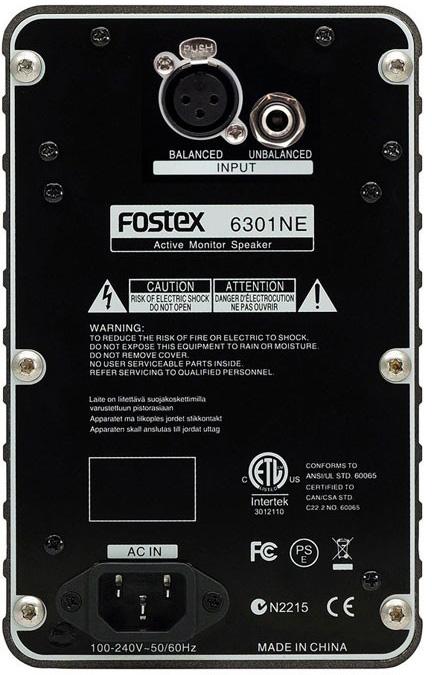

Inputs

Connector

1/4" TS Phone (unbalanced)

6301NE Connector: XLR-3-31 (electrically balanced)

Input Impedance: 10k ohm or more

Output (Thru)

6301ND Connector: XLR-3-32 (IEC 60958 AES/EBU)

Rated output: 20W

Distortion (T.H.D.): 0.05% (1kHz / 1W output)

Residual Noise:

-70dBV or less (NB/NE/NX)

-65dBV or less (ND)

Input Sensitivity

1/4" TS phone: -14dBV (0.2Vr.m.s.)

XLR: +4dBu (1.2Vr.m.s.)

XLR (Digital): -12dBFS

Auto Stand-by: active after approx. 25 min. of continuous input lower than the threshold level

GENERAL

Dimensions:

120 (W) x 189 (H) x 120 (D) mm

Weight

NB/NE/ND: 2.2kgs

NX 2.3kgs

Power Requirement:

AC 100 - 240V (50/60Hz)

Power Consumption:

10W (less than 0.5W in stand-by mode)
