Fostex 6301DT
UPC/EAN #636827308847
MPN #6301DT
$1029.00
Save 19.6%, MSRP $1280.00
Compact Dante-enabled monitor with 10cm full-range driver, 20W amp, aluminum enclosure, 70Hz"15kHz response, RJ45 and 1/4? input, 98dB max SPL

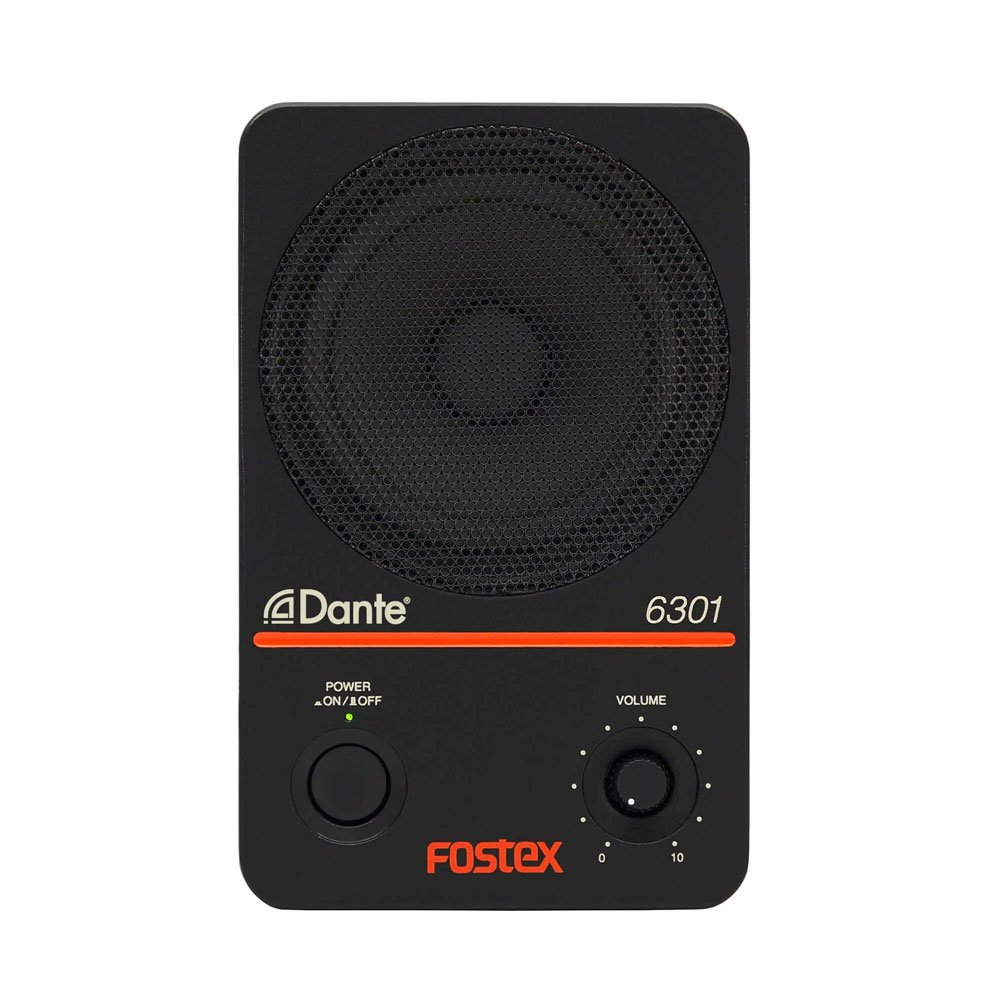

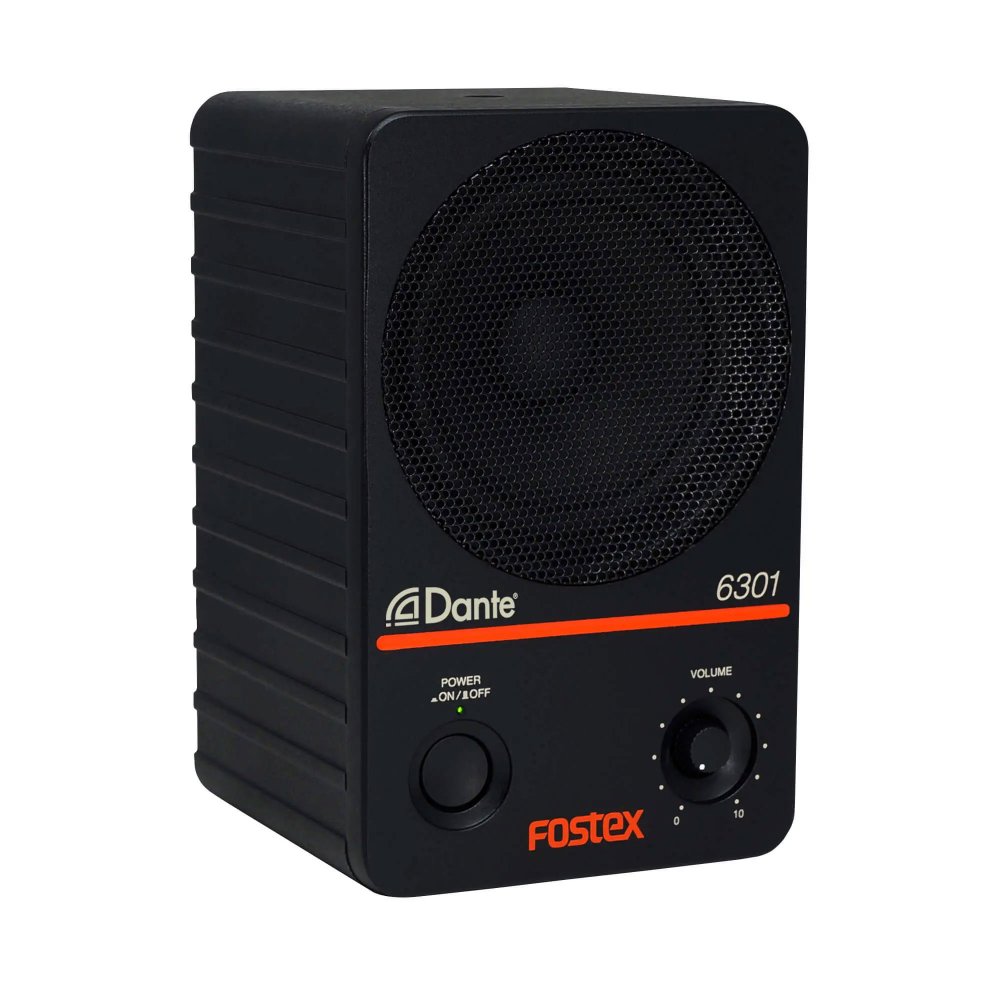

The Fostex 6301DT is a compact active loudspeaker designed to deliver professional-grade monitoring in environments where space and connectivity are critical. Building on a legacy of over 30 years in broadcast and small-scale production applications, this model introduces Dante audio network compatibility, making it ideal for modern IP-based setups. With its 10cm full-range cone driver and a robust 20W built-in amplifier, the 6301DT offers clear, reliable sound reproduction within a frequency range of 70Hz to 15kHz-perfect for close-field monitoring tasks.
Crafted from durable die-cast aluminum, the speaker features a sleek, flat design with minimal protrusions, reducing the risk of damage during transport or installation. It supports both analog and Dante inputs, allowing flexible integration into existing analog setups or all-digital audio-over-IP workflows. A built-in Dante Ultimo chip supports sample rates up to 96kHz, while power is handled through a universal 100-240V supply. With its compact size, versatile mounting options (via an optional wall bracket), and rock-solid performance, the 6301DT is a reliable solution for professionals seeking networked audio in a small, rugged form.
Features
Compact design ideal for tight spaces and broadcast setups.
Full-range 10 cm cone speaker delivers stable, clear sound.
Rugged aluminum die-cast enclosure for durability.
Flat surface with recessed controls to minimize damage from impact.
Supports global power input (100V to 240V AC).
Integrated Dante audio networking with support for up to 96 kHz.
Outputs one or both channels from Dante network signals.
20W amplifier with low distortion and low noise.
Optional wall-mount bracket available for flexible installation.
Designed for use in Japan; includes a 2-meter power cord.
Specifications
General Specifications:
Model: Fostex 6301DTEnclosure Type: Closed, aluminum die-castExternal Dimensions: 120 mm (W) - 189 mm (H) - 120 mm (D)Weight: Approx. 2.3 kgPower Requirement: AC 100 V to 240 V, 50/60 HzPower Consumption: 10 WAccessories: Power cord (approx. 2 m) - 1Design Features: Flat surface with recessed controls to minimize damage risk, Optional wall-mount bracket (EB-6301) supports tilt adjustment
Speaker Section:
Driver: 10 cm cone-type full-range speaker - 1Frequency Response: 70 Hz to 15 kHzSound Pressure Level: 85 dB/W (1 m)Max SPL: 98 dB
Amplifier Section:
Rated Output: 20 WTHD: 0.05% at 1 kHz, 1 WResidual Noise: "65 dBV
Input Options:

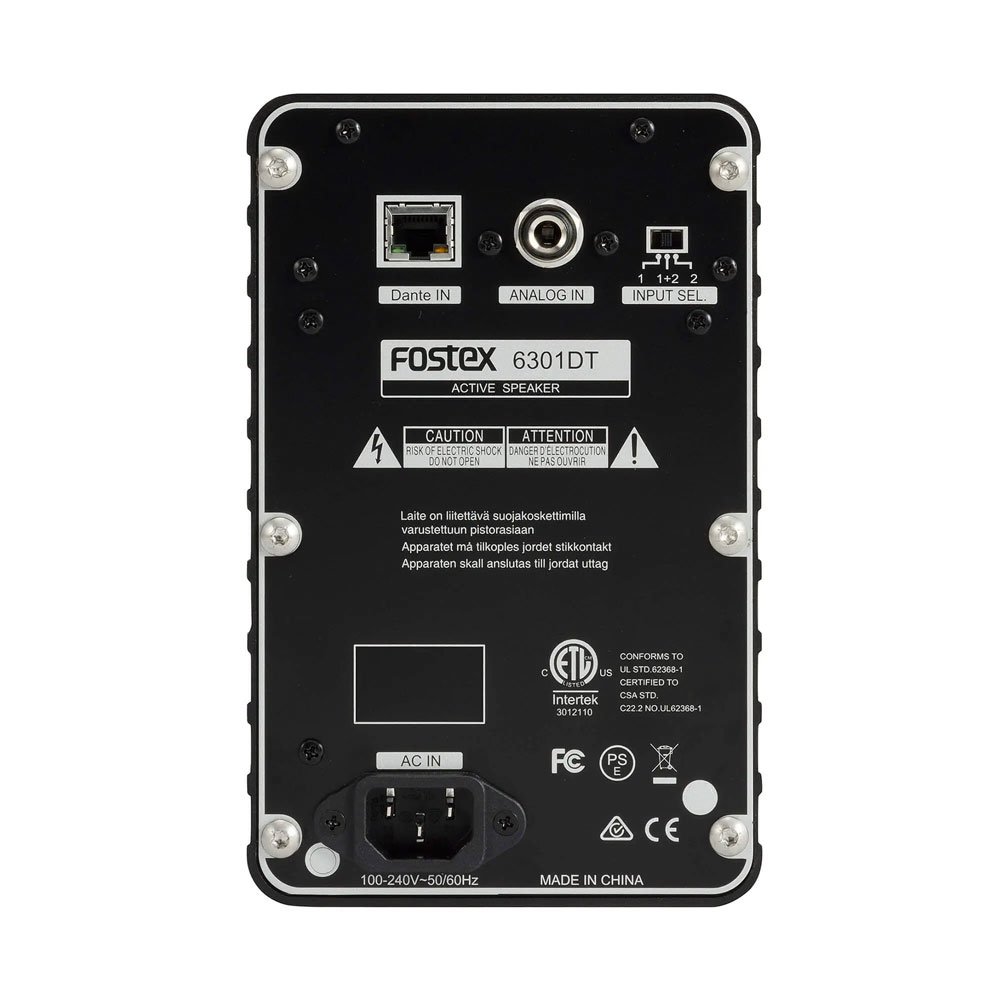

Analog: Unbalanced 6.3 mm (1/4") TS phone jackDigital: Dante (RJ45, CAT5e or better)Dante Features: Uses Dante Ultimo chip, Supports sampling frequencies: 44.1 / 48 / 88.2 / 96 kHz, Outputs either or both of 2-channel Dante digital signals
Design & Build:
Compact form factor suited for broadcast and small studio environmentsRugged aluminum die-cast housing for durabilitySpace-saving and impact-resistant design
Dimensional Details:
Height: 189.0 mmWidth: 120.0 mmDepth: 120.0 mm (including protrusions)Side Depth (body only): 113.0 mmTop View Depth: 51.5 mm
