Focusrite REDNET-TNX
UPC/EAN #815301001737
MPN #REDNET-TNX
High channel count, ultra-low latency, 128x128 Dante I/O, dual Thunderbolt ports, AES67, SMPTE ST 2110, rack-mount ready, Mac/Windows compatible
The Focusrite RedNet TNX is a high-performance Thunderbolt and Dante interface built for demanding audio environments including music production, broadcast, and post-production. Designed to streamline complex audio workflows, it offers an impressive 128x128 channels at up to 24-bit/192kHz straight out of the box. Its ultra-low round-trip latency ensures pristine, real-time audio performance across both macOS and Windows platforms, making it ideal for immersive audio setups like Dolby Atmos.
Engineered for seamless integration, RedNet TNX connects via a single Thunderbolt cable, simplifying connectivity in shared or multi-user environments. It also includes dual Ethernet RJ-45 ports supporting both switched and redundant modes, providing robust reliability in mission-critical applications. With built-in Dante Ready upgradeability, users can unlock up to 256x256 channels at 96kHz, future-proofing their audio infrastructure. Compact and portable yet packed with features, the RedNet TNX includes everything needed"from cables to mounting options.
Features
Powerful, portable audio workflows: 128x128 channels at 24-bit/192kHz with ultra-low latency " perfect for large sessions and immersive formats like Dolby Atmos.Seamless ThunderboltTM connectivity: Connect to any compatible computer with one cable; quick swaps between users make it ideal for shared workspaces.Upgradable with Dante ReadyTM: Expand to 256x256 channels at 24-bit/96kHz with an optional Dante ReadyTM upgrade.Dual Ethernet RJ-45 connections: Supports switched or redundant mode for flexible, reliable network connectivity in critical situations.Broadcast-Ready AoIP support: Compliant with AES67 and SMPTE ST 2110 (DDM required) for broadcast and pro audio standards.Windows and macOS compatible: Works with ThunderboltTM-equipped Windows (Intel) and macOS (Intel & Apple Silicon) systems.Simple integrated network control: Manage everything via a single-cable connection with the built-in network interface.Easy integration: Dual ThunderboltTM ports (15W each) support daisy-chaining multiple devices, securable with Sonnet ThunderLokTM retainer clips.Rack shelf-mountable: Secure with M5 x 12mm screw threads underneath.Award-winning support: Backed by Focusrite's three-year warranty and 24/7/365 technical support
Specifications
Audio Interface Capabilities
Simultaneous I/O: 128x128 at all supported sample rates, expandable to 256x256 at 96kHz with Dante ReadySupported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (±4%, ±0.1%)Bit Depth: 24-bit
Connectivity

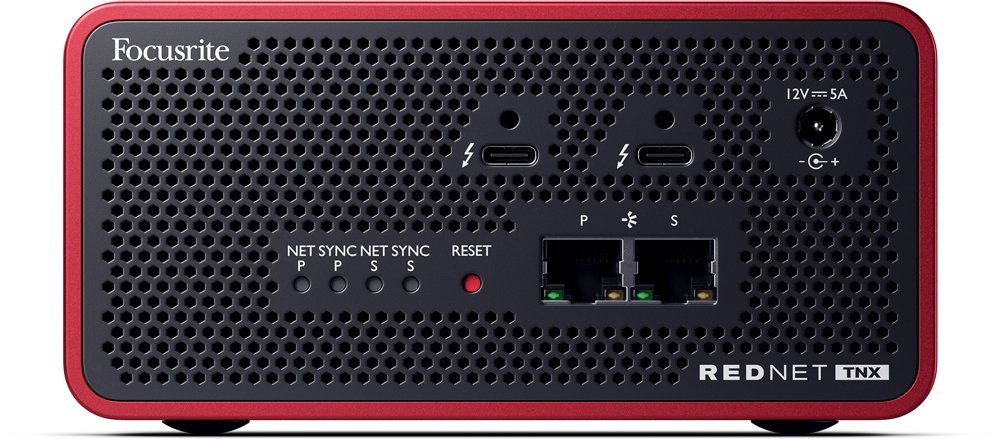

Thunderbolt: 2x Thunderbolt 3 ports (15W power each)Ethernet: 2x RJ-45 (Cat 5e and above) for Dante (switched or redundant mode)USB: Not applicable
System Compatibility
OS Compatibility: macOS (Intel & Apple Silicon), Windows (Intel)Driver Support: Multi-client ASIO and WDM (Windows), CoreAudio (Mac)
Network & Control
Integrated network interface for single-cable controlNetwork Indicators: 2x Network Active LEDs, 2x Network Lock LEDsCompatible with RedNet Control software
Power & Thermal
Power: External DC power supplyMax Ambient Temperature: 50C / 122F
Build & Mounting
Mounting: Exposed M5 x 12mm screw threads for rack shelf/cradleConstruction: Portable and rugged for studio and broadcast use
Included Accessories
2m Thunderbolt 3 cable2m Cat6A Ethernet cableExternal power supply and cableFocusrite Pro Important Information GuideSafety Information Sheet
