FOCUSRITE  |  SKU: 20142

RedNet PCIeNX

Ethernet

Low-latency high-channel-count PCIe Dante interface with 128x128 channels of 24-bit/192 kHz audio with ultra-low latency

$2,349.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Perfect for immersive formats like Dolby Atmos and any performance-critical high-channel-count Dante applications, RedNet PCIeNX delivers 128 x128 audio channels (up to 192kHz) with ultra-low latency. Compatible with PC and Mac (including the latest Apple Silicon), RedNet PCIeNX seamlessly integrates with your existing hardware and acceleratesany Dante workflow.

For post-production professionals working in Dolby Atmos, RedNet PCIeNX offers the ability to integrate high-channel-count Dante audio seamlessly with the Dolby Renderer.

For commercial recording studios and music production facilities, RedNet PCIeNX delivers performance, flexibility, and scalability, with 128x128 channels of uncompressed, high-resolution audio at ultra-low latency. Two Ethernet RJ-45 connections offer both switched and redundant mode, giving flexibility of connectivity as well as the option to have a secondary network in mission-critical situations. RedNet PCIeNX also supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, which makes it perfect for broadcast deployment.

The integrated network interface simplifies installation and connectivity, allowing a single-cable connection for audio and network control.

RedNet PCIeNX integrates seamlessly with RedNet Control, which provides a single application for control and monitoring of all RedNet devices on the network.

Features

Powerful workflows


128x128 channels (24-bit/192kHz) with ultra-low round-trip latency makes RedNet PCIeNX perfect for large recording sessions and post-production work using Dolby Atmos and other immersive formats.




More flexibility with dual Ethernet RJ-45 connections


Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity and the option to have a secondary network in mission-critical situations.




Broadcast-Ready with support for the latest AoIP standards


RedNet PCIeNX is reliable, flexible, and supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required).

More OS options
RedNet PCIeNX works with your Windows or Mac computer (Intel and Apple Silicon supported).

Flexible installation


RedNet PCIeNX can be easily installed in a PCIe slot or Thunderbolt chassis.

Simple integrated network control


RedNet PCIeNX features an integrated network interface " allowing a single-cable connection for audio and network control.

Specifications

System Requirements


Computer: Apple Mac/Windows system running supported OS
An empty 4x Lane PCIe 2.1 compatible slot is required (on-motherboard or via Thunderbolt to PCIe expansion chassis)
Other: Internet connection for downloading and installing software and driver

Simultaneous Inputs & Outputs


128x128 (all sample rates)

Digital Performance


Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit

Dante Connectivity


2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)

Driver Compatibility


Multi-client ASIO and WDM (Windows)
CoreAudio (Mac

)

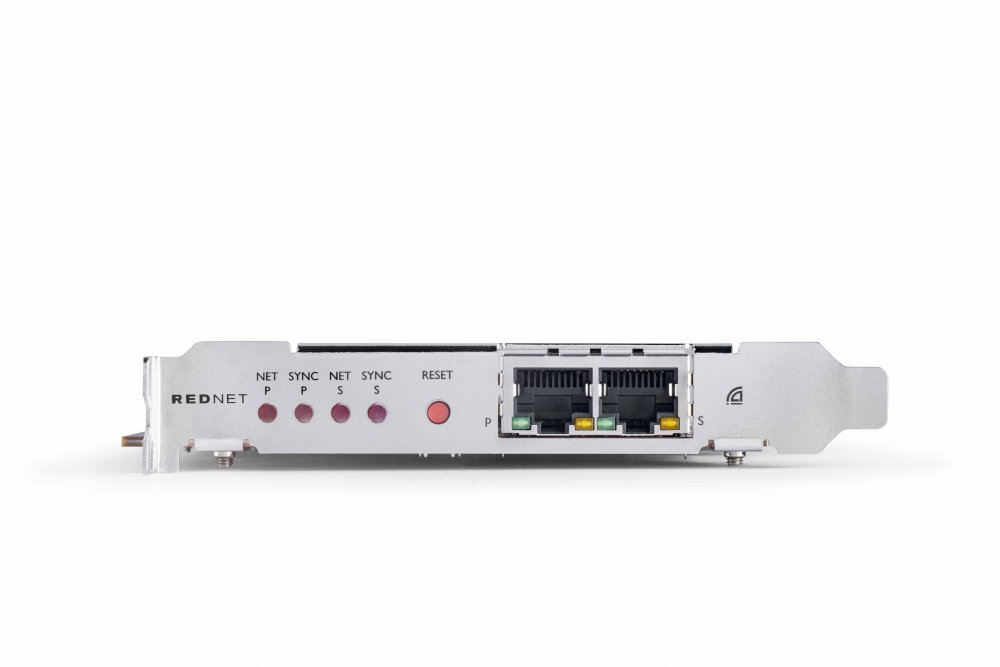

Front Panel


2x Network Active LED indicators (Primary/Secondary)
2x Network Lock LED indicators (Primary/Secondary)
1x Factory Reset button

Card Size


Full Height, Half Width

Power


Powered over PCIe

Heat Performance


Max internal case/chassis operating temperature: 50 degrees Celsius/122 degrees Fahrenheit




What's In The Box


• RedNet PCIeNX unit
• Focusrite Pro Important Information Guide
• 2m cat6A ethernet cable
