Ferrofish Pulse 8 AE
8-8 balanced TRS, 16-16 ADAT I/O, ESS converters, word clock, USB-C remote, OLED metering, headphone out with DAC, SMUX up to 192kHz, 1U compact design
The Ferrofish PULSE8 AE is a high-performance 8 x 8 AD/DA and 16 x 16 ADAT converter crafted for seamless integration in studio and live environments. Designed with precision, it delivers pristine analog-to-digital and digital-to-analog conversion using premium ESS converters, supporting sample rates up to 192kHz. Its compact, rack-friendly form houses eight balanced TRS inputs and outputs, dual ADAT I/O ports, and comprehensive word clock sync options, making it a powerful central hub for any hybrid setup.
Equipped with a vivid front-panel display and intuitive controls, the PULSE8 AE offers real-time signal monitoring and effortless configuration. It also features a dedicated high-resolution headphone output with its own ESS DAC and adjustable amplification for accurate critical listening. RemoteFish software support via USB-C and MIDI I/O further enhances flexibility, while an expansion slot for future DSP upgrades ensures your system stays future-ready. Whether for tracking, mixing, or routing, the PULSE8 AE combines essential connectivity with exceptional audio quality in a streamlined, professional package.
Features
8 In / 8 Out Balanced Analog I/O: Clean, professional-grade analog connections via TRS jacks.16-16 ADAT Digital I/O: Supports up to 192kHz with SMUX for full integration with digital setups.High-Quality ESS Converters: Delivers transparent, low-noise conversion with up to 120dB SNR.Front Panel Visual Monitoring: Bright, high-resolution display with multicolor meters for real-time signal feedback.USB-C and MIDI Remote Control: Configure routing and settings via RemoteFish software; MIDI I/O for updates and sync.Precise Clocking Options: Word Clock I/O and internal precision clock with jitter reduction ensure solid timing.Powerful Headphone Output: Dedicated ESS DAC with 1dB-step control and multi-stage amplification for accurate monitoring.Compact and Rack-Ready: Space-saving 1U form factor suitable for studio racks or desktop use.Expandable via DSP Module: Future-ready with optional DSP slot for added processing capabilities.Built for Reliability: Robust design with self-resetting fuse, low power consumption, and high thermal tolerance.
Specifications

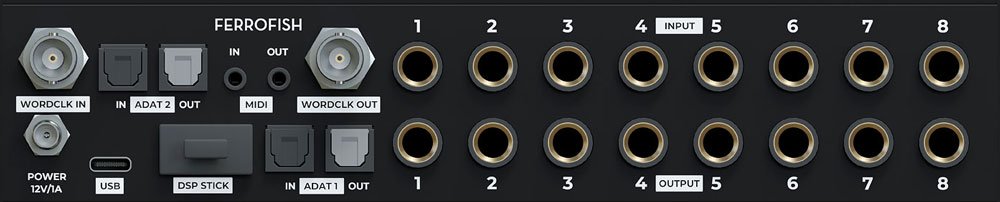

Analog I/O
8 balanced TRS inputs (quarter inch)8 balanced TRS outputs (quarter inch)Analog input SNR: 112dB (typical)Analog input THD+N: -108dB (1kHz, 48kHz SR, A-weighted, typical)Analog output SNR: 120dB (typical)Analog output THD+N: -115dB (1kHz, 48kHz SR, A-weighted, typical)
ADAT Connectivity
2 ADAT inputs2 ADAT outputsUp to 16 channels at 48kHzUp to 8 channels at 96kHz via SMUX/2Up to 4 channels at 192kHz via SMUX/4
Clocking
Word Clock input and output (BNC)Internal 125MHz high-precision oscillatorInitial accuracy +/-1.5ppmDrift over temperature +/-2.5ppmAging +/-1ppmDigitally controlled PLL with active jitter reduction
Headphone Output
6.3mm jackDedicated ESS DAC4-stage amplificationDigital volume control in 1dB steps

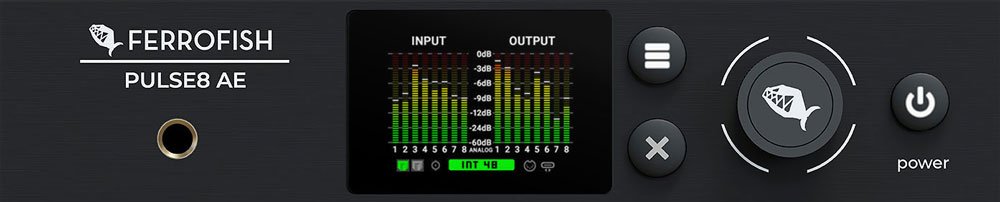

Monitoring and Control
High-resolution front display with multicolor signal metersControl knob and buttons for configurationUSB-C port for use with RemoteFish software (Mac and PC)MIDI input and output
Power
External 12V DC power supplyConnector: 2.54mm barrel jack with locking screwNominal consumption: 12VAStandby: Below 1VAPolyfuse (self-resetting)Included power supply: 12V 3A or 12V 1A
DSP and Expandability
Expandable via optional DSP stick
Physical
Form Factor: Compact 1UDimensions: 13.5cm (D) x 22cm (W) x 4.4cm (H) (excluding knobs and connectors)Weight: 1kgOperating Temperature: +5 degree C to +45 degree CHumidity: <75%, non-condensing
