Eventide H90 Harmonizer
UPC/EAN #840694001842
MPN #1225-000
Dual algorithm processing, 62 effects, flexible routing, stereo inserts, MIDI control, OLED screen, tuner, looper, USB connectivity, footswitches

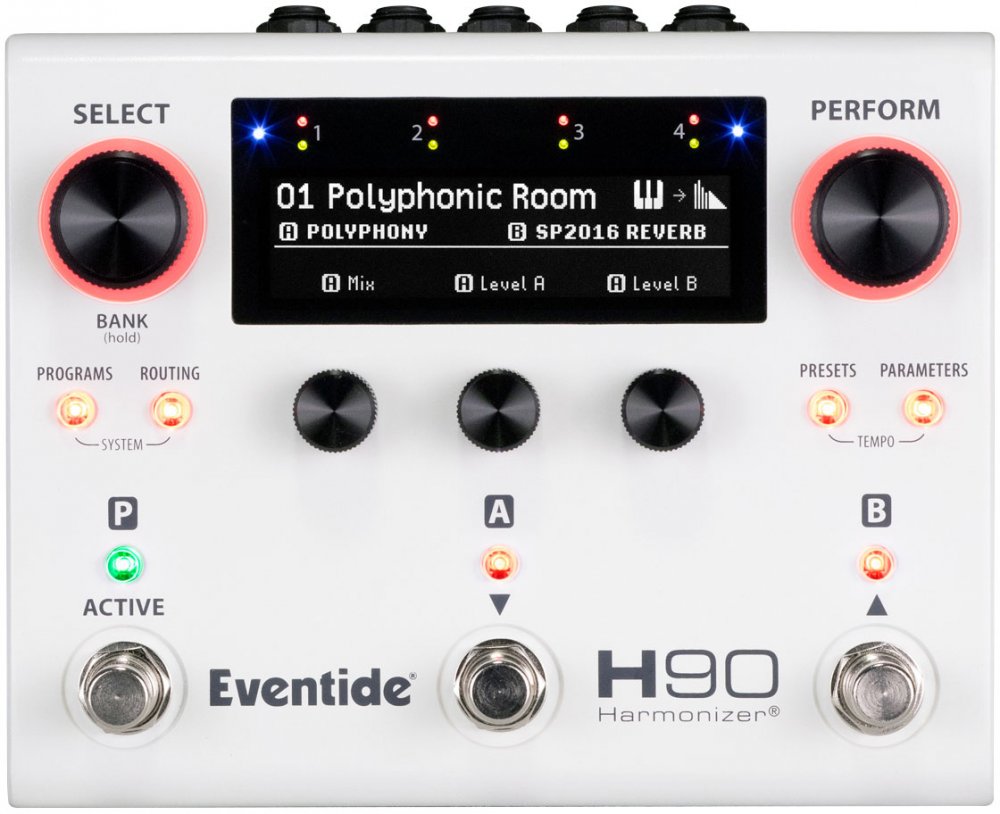

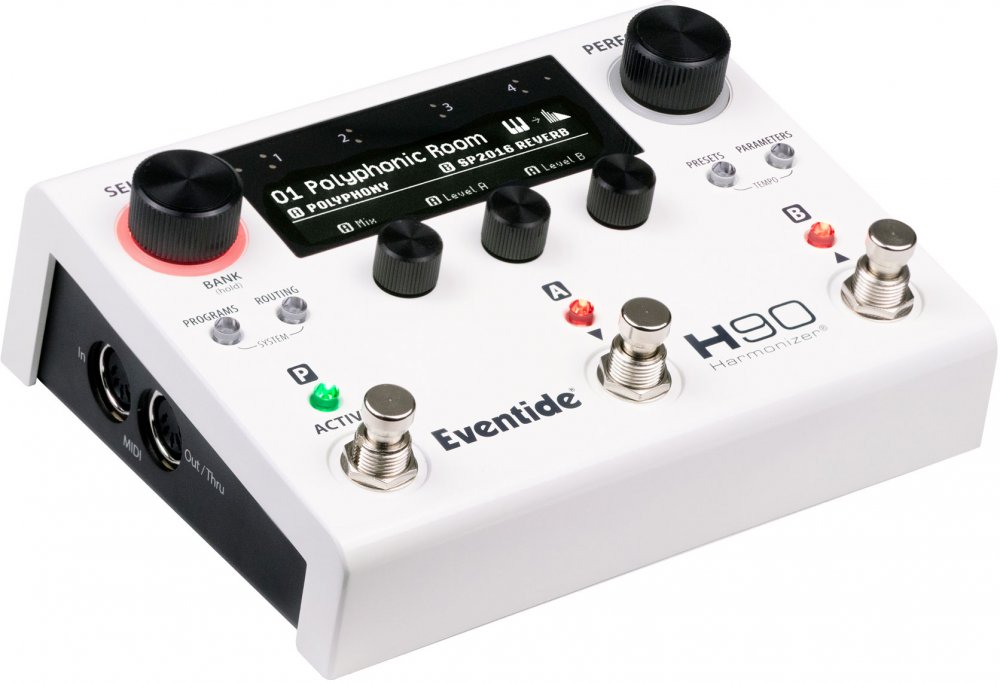

The Eventide H90 Harmonizer is a powerful multi-effects unit built for musicians and producers who need precision, flexibility, and sonic depth. Designed with performance in mind, it delivers dual-algorithm processing, advanced routing options, and hands-on control through an intuitive interface. From stage setups to studio sessions, the H90 adapts to a wide range of creative environments with ease.
This pedal offers a rich library of factory and user-created Programs, each built from two individual Presets using Eventide's renowned effects algorithms. With support for dual stereo paths, multiple control modes, and external inputs for expression pedals or switches, it fits seamlessly into complex rigs. USB and Bluetooth connectivity allow for software integration, system updates, and use with the H90 Control app for preset editing and list management. MIDI functionality, flexible I/O, and customizable performance parameters make it a versatile choice for shaping sound with precision.
Features
Loads and plays custom programs: Use playlists and banks to organize and trigger combinations of effects quickly.Dual effect presets per program: Run two effects at once in series or parallel.Flexible signal routing: Supports stereo, insert routing, and dual path setups.Live performance mode: Assign custom actions to footswitches like tap tempo, bypass, or parameter changes.Customizable controls: Map knobs, pedals, or switches to control multiple parameters instantly.Searchable effect library: Browse by algorithm or effect type from a large factory and user preset collection.Real-time parameter tweaking: Use quick knobs and performance controls to adjust settings on the fly.Built-in HotSwitches and HotKnob: Instantly jump between parameter snapshots or sweep multiple values together.Comprehensive I/O options: Includes USB-C, MIDI, expression pedal, aux switch, and multiple audio ins/outs.Companion software support: H90 Control app allows editing, preset management, and firmware updates via computer.Integrated tuner and tempo tools: Built-in chromatic tuner and tempo syncing for precise performance setups.Save and recall user presets: Easily store your own sound designs and recall them as needed.
Specifications
General Specifications
Multi-effects dual-engine audio processorSupports mono and stereo processing paths62 effect algorithms (including legacy H9 algorithms)Up to 2 algorithms simultaneously (one per path)99 factory programs + 99 user-editable programs per list (with unlimited lists)Expression pedal and auxiliary switch supportBuilt-in tuner and looper (up to 60 seconds stereo / 120 seconds mono)True Bypass or Buffered Bypass (relay switchable)Spillover between programs with seamless transitions
Audio Specifications
Sampling Rate: 48 kilohertzFrequency Response: 20 Hertz to 20 kilohertz ±1 decibelDynamic Range: 114 decibels (A-weighted)THD+N: Less than 0.003 percentInput Impedance: 1 Megohm (instrument), 18 Kilohms (line)Output Impedance: 470 OhmsMaximum Input Level: +8 decibels (instrument), +14 decibels (line)Maximum Output Level: +14 decibels
Connectivity
2 x 1/4-inch TRS balanced line/instrument inputs2 x 1/4-inch TRS balanced outputs1 x 1/4-inch Expression/AUX jack (supports 3-button footswitch)1 x 1/4-inch insert send1 x 1/4-inch insert return1 x USB-C port (for updates and H90 Control software)1 x MIDI In, 1 x MIDI Out/Thru (5-pin DIN)1 x microSD card slot (for preset backup and software updates)
Control & Interface
Five push knobs for direct parameter controlOne large push encoder for navigationThree assignable footswitches with LED ringsOLED displayPerformance HotKnob for live tweaksH90 Control software (Windows and macOS) for editing and managementMultiple routing modes: Insert, Dual Mono, Dual Stereo, Series, Parallel
Power Requirements
9 Volts DC, center-negativeCurrent draw: 500 milliamps minimumPower supply included (universal input)
Physical Specifications
Dimensions: 7.5 inches (width) x 5 inches (depth) x 2 inches (height)Weight: 2.25 pounds (approximate)
Firmware & Software
Firmware version: 1.11.4 (as per manual)Supports firmware updates via USB-CPresets and settings managed with H90 Control software
Accessories Included
9 Volt DC power supplyUSB-C cableQuick start guide
