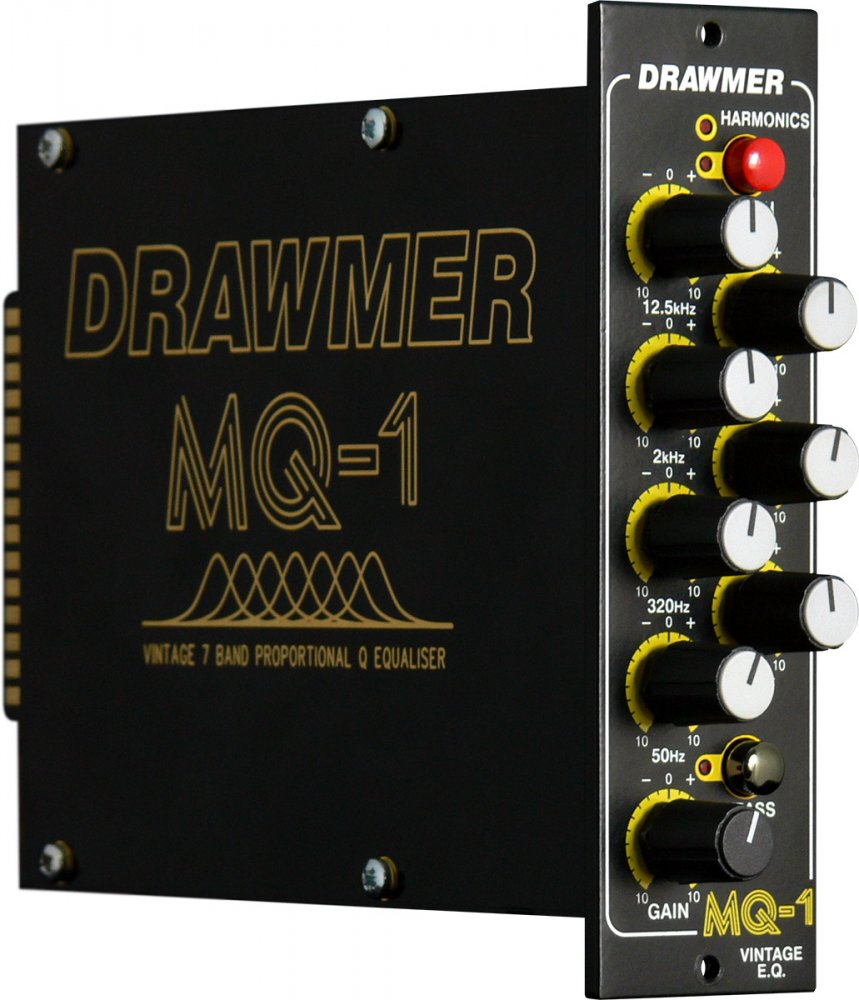

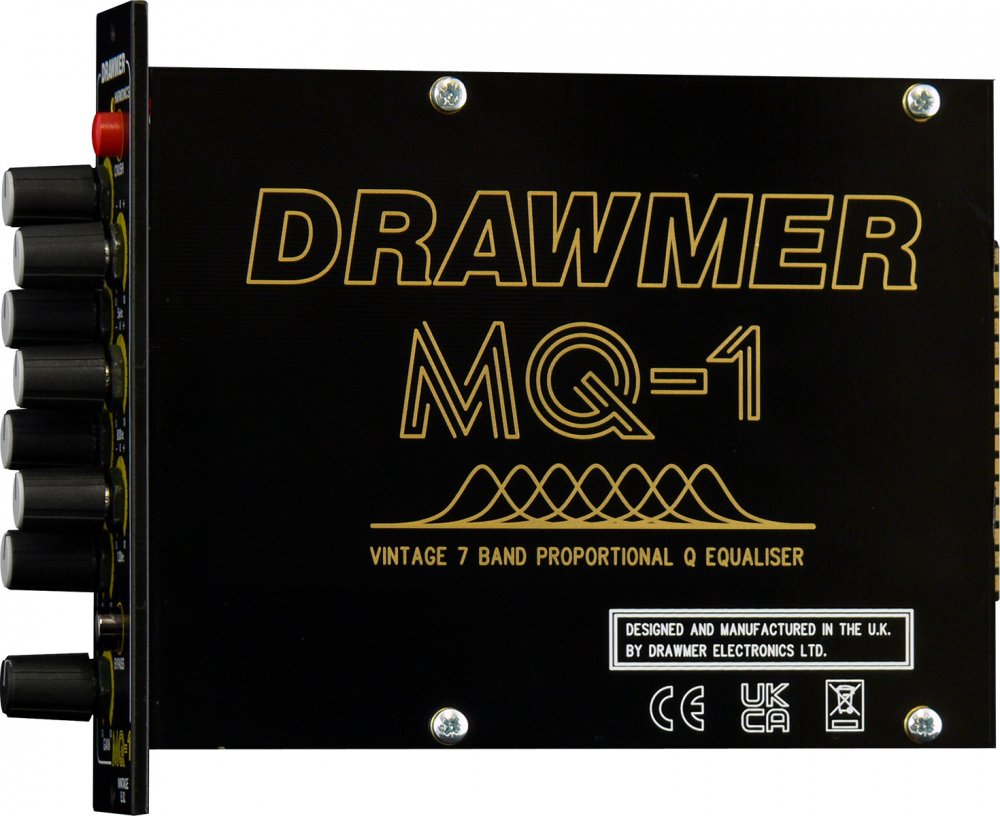

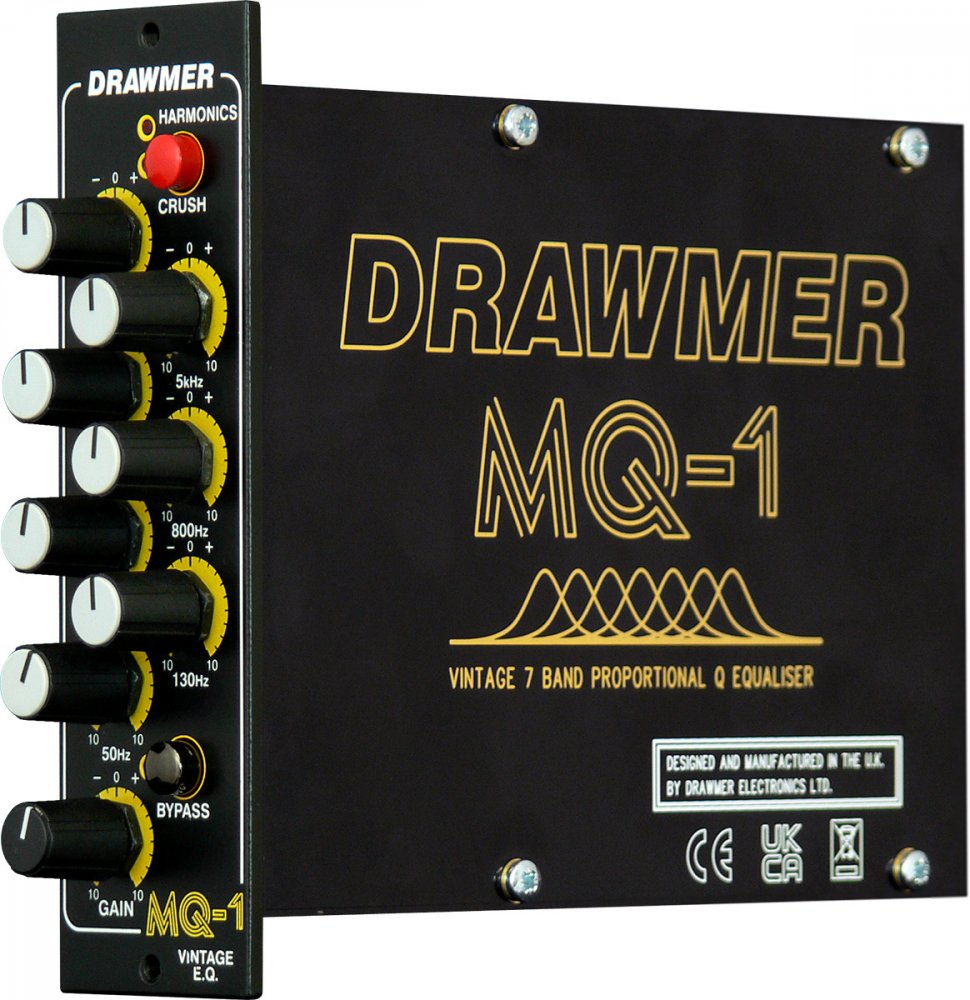

Drawmer MQ-1
7-band proportional Q parametric EQ with vintage 1960s-inspired curves, harmonic-rich Crush feature, ±10dB cut/boost, and hardwired bypass for warm analogue sound
The Drawmer MQ-1 Vintage EQ is a sophisticated single-channel, seven-band parametric equalizer inspired by the legendary Motown EQs of the 1960s. Designed for use with 500-series racks, it offers seven fixed-frequency controls for shaping sound with precision, featuring proportional Q curves for smooth, musical results. With its 100% analog design, the MQ-1 enables ±10 dB boosts or cuts across its bands, allowing you to sculpt sound with clarity and finesse. Its "CRUSH" feature introduces harmonic saturation for added warmth and depth, making it ideal for enhancing bass presence, mids, and high-end shimmer. This ensures a characterful analog experience, especially effective when driven harder.
Designed and manufactured in England, the MQ-1 blends classic tonal aesthetics with modern reliability. Perfect for studio professionals and enthusiasts alike, it integrates easily into your 500-series setup and includes a bypass switch for A/B comparisons. Whether you're working with vocals, drums, guitars, or full stereo mixes, the MQ-1 provides the flexibility to add depth, clarity, and vintage warmth to your recordings.
Features
7-Band Parametric Equaliser: Inspired by the iconic 'Motown EQ', featuring 7 fixed-frequency bands with ±10dB variable cut/boost.CRUSH Feature: Adds harmonic saturation for classic analogue warmth, enhancing bass, mids, and highs with a progressive effect.Vintage Analogue Sound: 100% analogue design delivering warmth and character to your audio.Hard-Wired Bypass: Allows direct A/B comparisons with unprocessed signals.Compact 500-Series Format: Fits seamlessly into standard 500-series racks.UK Manufacturing: Designed and crafted in England for quality and reliability.
Specifications
General Specifications
Single-channel 7-band proportional Q parametric equalizer for the 500 seriesInspired by the 1960s Motown EQ100% analog design with vintage EQ curvesIntegrated "CRUSH" feature for harmonic saturation and analogue warmthVariable cut/boost of ±10dB on all bandsFixed-frequency bands: 12.5kHz, 5kHz, 2kHz, 800Hz, 320Hz, 130Hz, and 50HzHardwired bypass functionDesigned and manufactured in the UK
Frequency Bands
12.5kHz (Brilliance): Adds sparkle and airiness5kHz (Presence): Enhances clarity and signal edge2kHz (Upper Midrange): Improves percussive presence and crunch800Hz (Midrange): Provides visibility and mix prominence320Hz (Low Midrange): Adds bass presence and fullness130Hz (Bass): Adds warmth and depth50Hz (Sub-Bass): Adds weight and low-end resonance

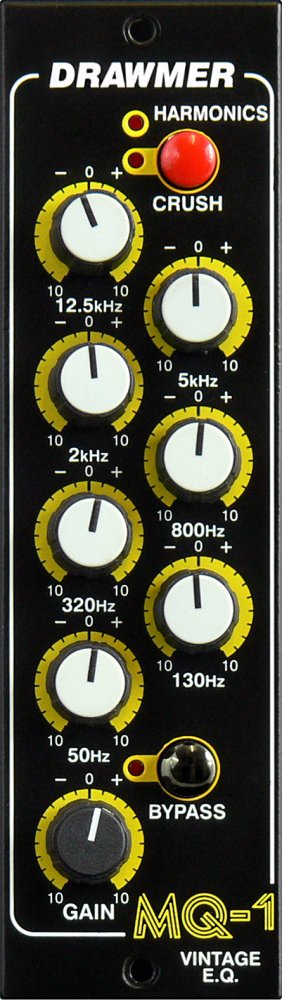

Controls and Features
Input Gain: +20dB to -20dB for signal matching and optimizationBypass Switch: Allows A/B comparisons by routing the signal unprocessedCrush Control: Introduces harmonic saturation and automatic gain makeupHarmonics LED: Indicates harmonic intensity and EQ drive level
