DPA 6060-OC-U-F00

UPC/EAN #5713055016364 MPN #6060-OC-U-F00

$768.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

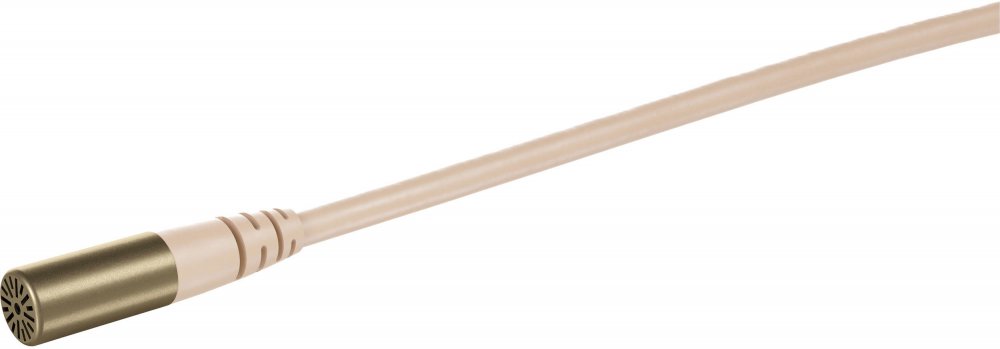

d:screet CORE 6060 Omni Submini Mic, Normal SPL. Beige, MicroDot termination, no adapter included

d:screet 6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Features

Amazing 3 mm CORE capsule technology

Renowned DPA sound in a 60% smaller package

Stainless steel, PVD-coated mic housing

Modular adapter system fits most professional wireless systems

Water and sweat resistant

Made for theater, film, and television production

Specifications

Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 24 dB(A) re. 20 Pa (max. 26 dB(A))
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 70 dB(A)
Total harmonic distortion (THD): < 1% up to 126 dB SPL peak
Dynamic range: Typ. 102 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: From MicroDot: 30 - 40 . From DAD6001-BC: 100
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

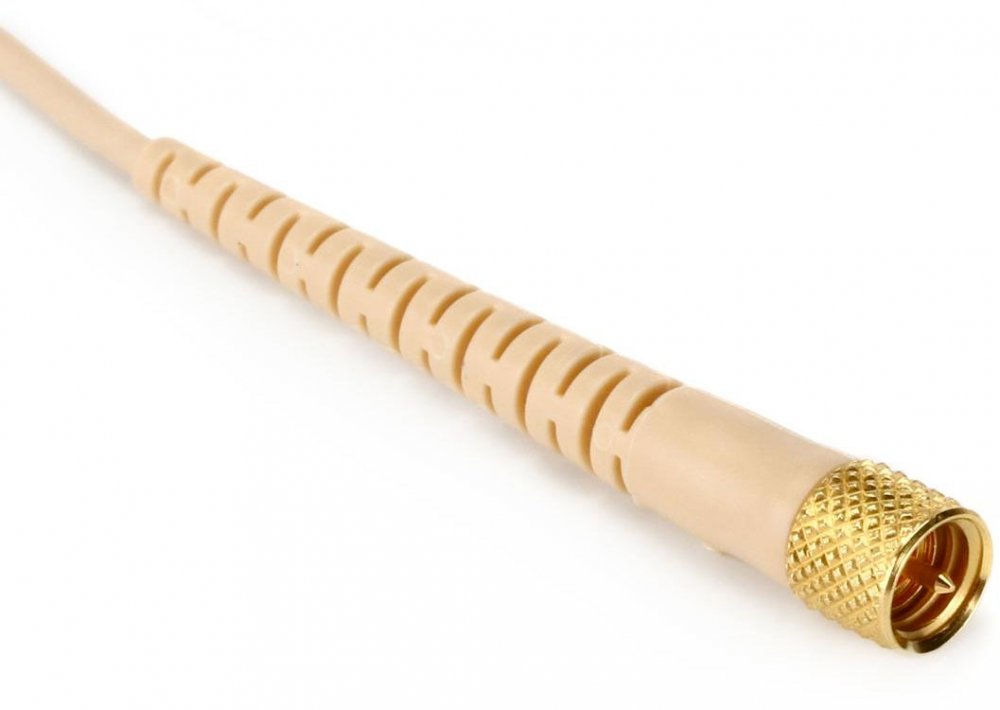

Connector: MicroDot
Color: Beige
Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter: 3 mm (0.12 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%
