DPA 4060-OC-C-F10
UPC/EAN #5713055012076
MPN #4060-OC-C-F10

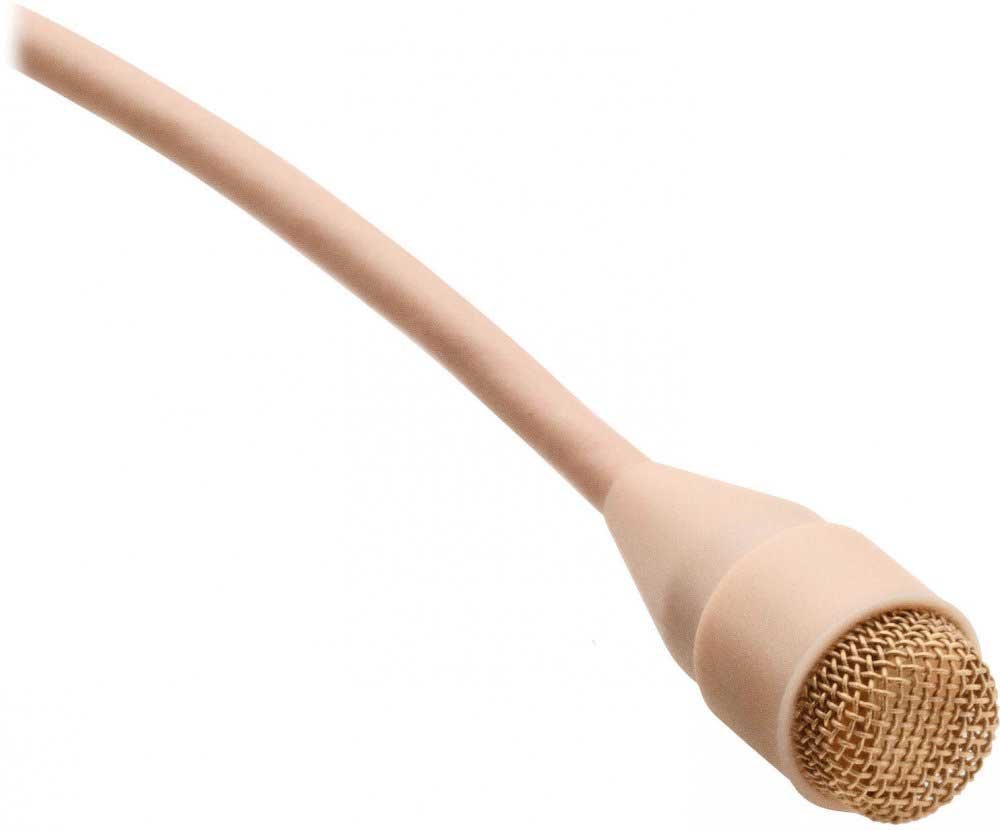

d:screet CORE 4060 omnidirectional mic, normal SPL, Beige, TA4F MINI XLR
Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is highly unobtrusive. Because of its small size, it exhibits an exceedingly accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
The d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is available in four colors: black, brown, beige and white.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Features
Extremely rugged and reliable
Exceptional audio quality
Low noise and high sensitivity
Large selection of accessories
Modular adapter system fits most professional wireless systems
Specifications
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted): re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
Total harmonic distortion (THD) - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD) - CORE < 1% THD up to 129 dB SPL peak
Dynamic range - Legacy: Typ. 100 dB
Dynamic range - CORE: Typ. 106 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Connector: TA4F Mini XLR
Color: Beige
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%
