DPA 4011-DF-G-B01-045
UPC/EAN #5713055016142
MPN #4011-DF-G-B01-045
Cardioid condenser mic with 18" gooseneck, 20Hz"20kHz response, 144dB SPL, low distortion, modular design, ideal for podiums, stages, and studio use.

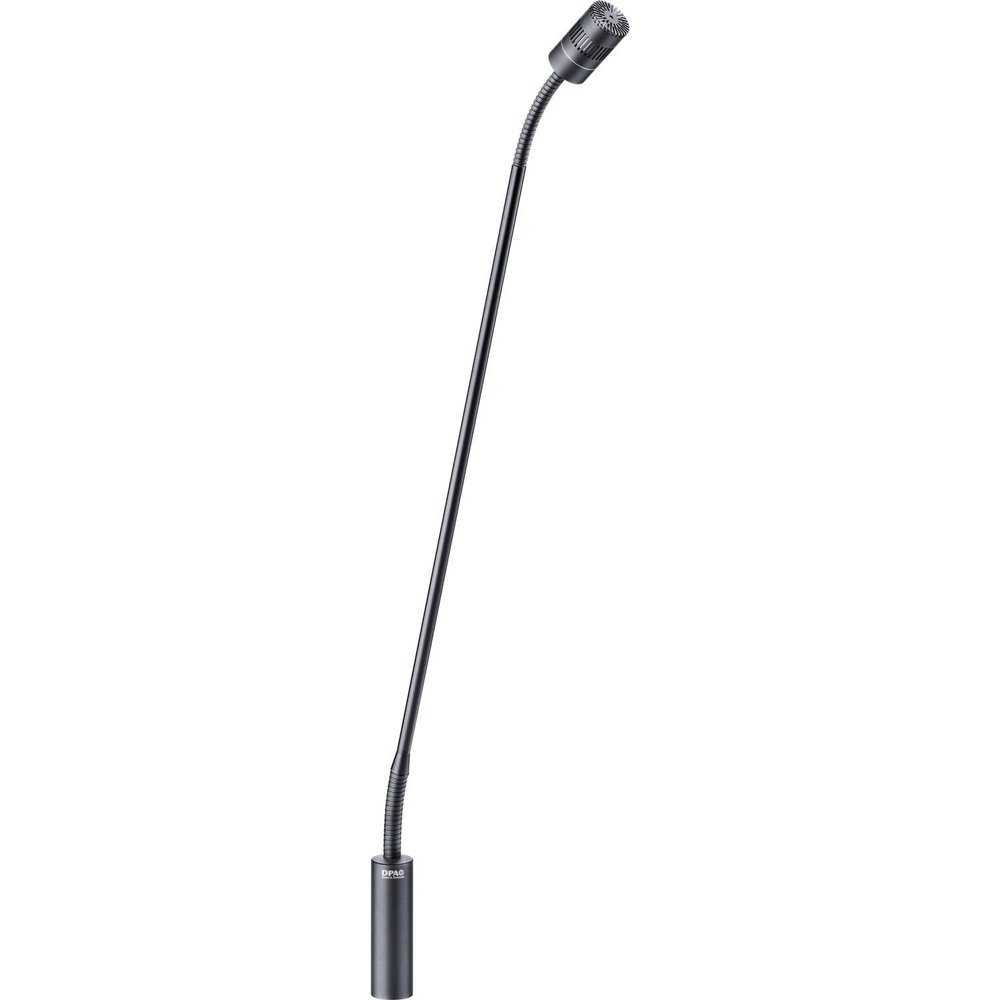

The DPA 4011-DF-G-B01-045 is a professional-grade cardioid condenser microphone mounted on a 45 cm (18-inch) gooseneck boom, designed for applications such as podiums, conference tables, and other settings requiring precise audio capture. Its cardioid polar pattern provides excellent off-axis rejection, ensuring focused sound pickup and minimizing unwanted ambient noise.
Equipped with the renowned MMC4011 cardioid capsule, the microphone delivers a flat on-axis frequency response and excellent phase response, faithfully reproducing the original sound source with low distortion and a wide dynamic range. This makes it suitable for capturing speech and acoustic instruments with high fidelity.
The 45 cm gooseneck allows for flexible positioning, making it ideal for podiums and conference tables where a low-profile microphone is desired. The modular nature of the microphone system enables easy reconfiguration with different DPA capsules and preamplifiers to adapt to various recording scenarios.
Features
High-Quality Audio Capture: Features the renowned MMC4011 cardioid capsule for precise and natural sound reproduction.Directional Cardioid Pattern: Provides excellent separation between sound sources, ideal for close-miking applications.Flexible Gooseneck Design: Equipped with a 45 cm (18 in) boom, offering versatile positioning in podium and desktop setups.Elegant and Durable Construction: Non-reflective black finish suits various professional environments.Integrated Shock Mount: Minimizes handling noise and vibrations for clear audio output.Modular System Compatibility: Part of DPA's modular series, allowing interchangeability with other capsules and preamplifiers for versatile configurations.High SPL Handling: Capable of managing high sound pressure levels, making it suitable for a variety of instruments and vocals.
Specifications
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz " 20 kHzEffective Frequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHzSensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/PaEquivalent Noise Level (A-weighted): Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))Equivalent Noise Level (ITU-R BS.468-4): Typ. 25 dB (max. 27 dB)Total Harmonic Distortion (THD): < 1% up to 136 dB SPL RMS, 139 dB SPL peakDynamic Range: Typ. 121 dBMax. SPL (THD <10%): 144 dB SPL peakRated Output Impedance: 100 ohmsMinimum Load Impedance: 2 kiloohmsCable Drive Capability: 100 m (328 ft)Output Balance Principle: Impedance balancingCommon Mode Rejection Ratio (CMRR): > 40 dBPower Supply: P48 (Phantom Power)Current Consumption: 3.5 mAConnector: XLR-3MMicrophone Diameter: 19 mm (0.75 in)Capsule Diameter: 19 mm (0.75 in)Microphone Length: Capsule: 23 mm (0.9 in); Boom pole: 47 cm (18 in)
