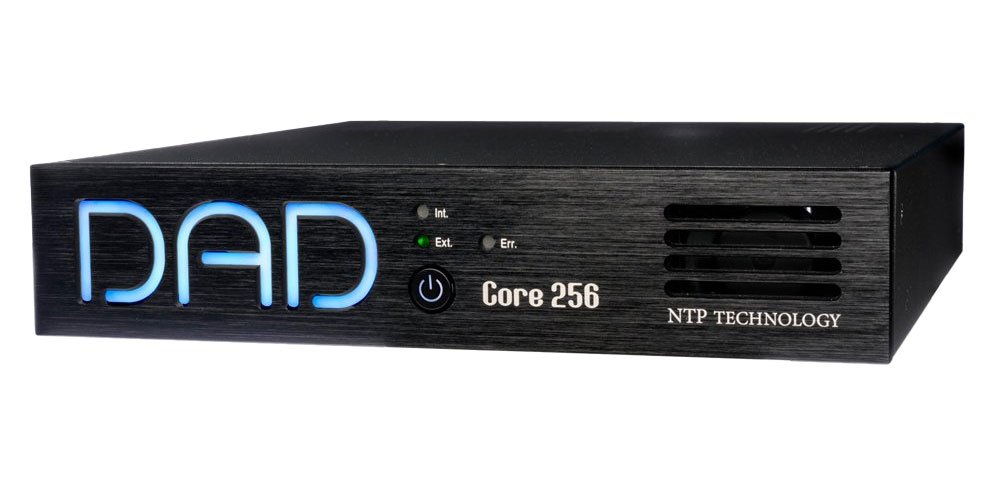

Digital Audio Denmark Core 256 w/DADlink
MPN #NTP-DADCORE256-DL
848 input and output channels digital router and monitoring interface
Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.
However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for any demanding live sound application " be it FOH, Monitor Mix or redundant Playback Station powered by our Control | Pack functionality.
But of course, it can also do other things such as sharing a 1U rack shelf with a Mac Mini running Dolby Atmos Renderer, Dolby Atmos Production Suite or Dolby Atmos Mastering Suite.
For live sound, as well as immersive audio post production facilities, Core 256 will represent the missing link that streamlines and optimizes any multichannel workflows seamlessly.
- 848 Input and Output Channels
- Digital Router and Monitoring Interface
- Thunderbolt 3 I/O (256 Ch.)
- Dante AoIP I/O (256 Ch.)
- MADI BNC I/O (64 Ch.)
- MADI SFP I/O Module Option Available (128 Ch. " SFP not included)
- ADAT dual TosLink I/O (16 Ch.)
- 512-64 ch. PRO | MON Summing and Speaker EQ Processing
- Sample rates supported from 44.1 to 384 kHz
Features
The basic I/O configuration for the Core 256 interface is:

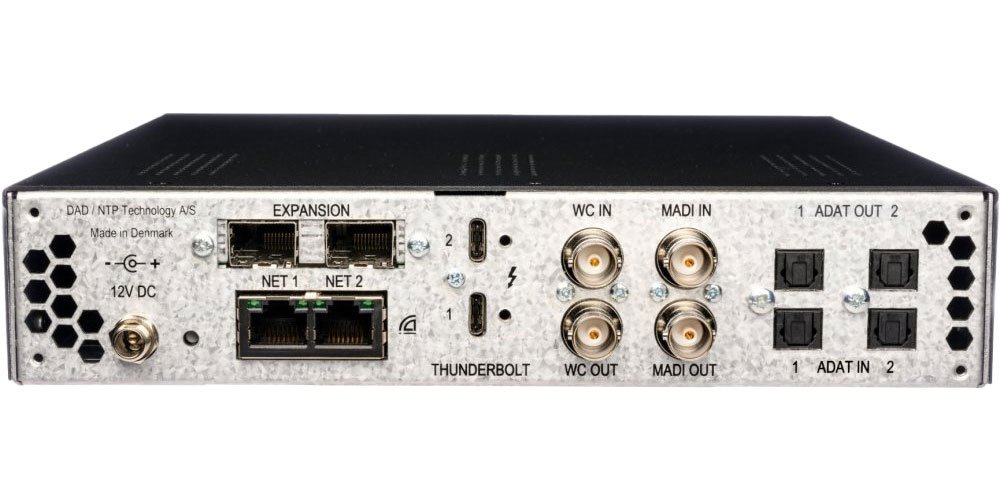

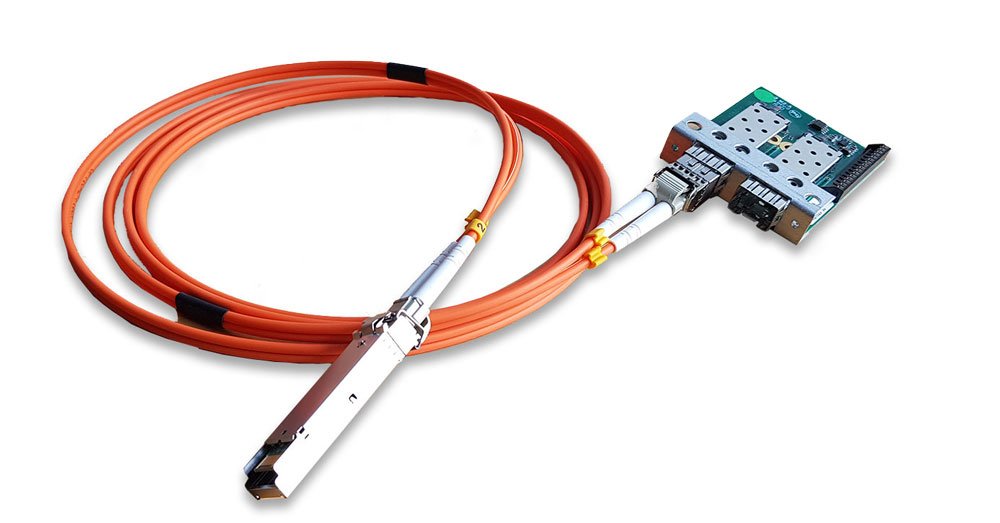

2 Thunderbolt 3 Ports (each w. 15W power)256 Bidirectional Channels at 48 & 96 kHzASIO / Core Audio Thunderbolt PCIe driversMADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)ADAT /Lightpipe (16 Ch.)DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96 kHz, 64 Ch. at 192 kHz (IP Core)WC I/OSPQ: 64 Ch. with 16 FiltersPRO | MON SupportSumming Processor 64 Output / 512 Input BussesInternal Router: 1500 x 150028 bit Floating Point ProcessingAvid Eucon Enabled Devices via DADmanAPPLE Silicon M1 and Intel Compatible SoftwareControl via Ethernet or Thunderbolt Connection12V DC External Power (Max 60W)½ Rack Unit 1U HeightFurther, you can also add various SFP modules in the built-in MADI/DADLink module and the Dual MADI card:SFP/LC " Opt module multi mode 1300 nm low output LED / 647-110SFP/LC " Opt module single/multi mode 1300 nm, laser / 647-200SFP " Coax MADI tranceiver w. HD/mini-BNC / 647-400
Specifications
2 x Thunderbolt 3 Ports w. 15W Power Source Each256 Bidirectional Channels at 44.1/48 kHz256 Bidirectional Channels at 88.2/96 kHz128 Channels at 192 kHz64 Channels at 384 kHz
Audio Drivers
macOS
Core Audio Thunder|Core Audio Driver
Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
Core Audio Aggregates for More Applications I/O Control Connection for DADman
Control Connection for DADman
Windows
ASIO Thunder|Core Audio Driver
Compatible with Windows 10 and forward
One Application Can Connect to the Asio Driver
Control Connection for DADman
