DIGITAL AUDIO DENMARK  |  SKU: 24007

AX Center Base w/DADlink

Multi-Channel Converters

1,106 input and 1,112 ouput channels audio interface

$6,045.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

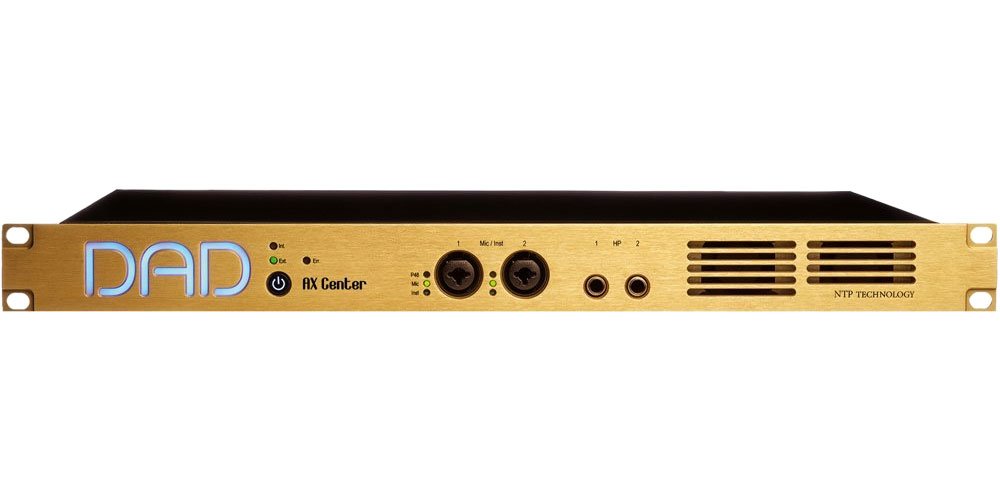

AX Center was born to sit in a rack right next to you in the studio, in your portable rig " or maybe even on your desktop. It's the audio interface that dreams are made of, as it unites the legendary audio quality of pristine Digital Audio Denmark AD & DA conversion with the renowned transparency and musicality of our mic preamps.

It's all about capturing the source truthfully and get it into any DAW you may use exactly as it is " and to get your production out exactly as you intended, envisioned and simply heard it.

- Unmatched Sound Quality in Any Thunderbolt Audio Interface - Tried & Trusted PRO | MON Monitor Control from Mono to Immersive - SPQ Speaker Processing: 128 Channels with a Total of 1024 EQ Bands and Individual Channel Delay - 256 Thunderbolt & 256 Dante Channels - Control | Pack one-sample routing preset manager - Tailored to Fit Any Need with Expandable & Customisable I/O

Features

Thunderbolt 3 I/O (256 channels at 48 & 96 kHz)

Dante AoIP I/O (256 channels at 48 kHz, 128 channels at 96kHz)

MADI I/O (64 channels at 48 kHz)

ADAT I/O (16 channels)/SPDIF (2 channels)

Up to 256-256 channels I/O via optional cards

Up to 256-256 channels I/O via optional module

512-64 channel PRO | MON monitor control

Speaker EQ 128 channel w 16 filters

Control | Pack for Playback Redundancy and Show Control

28bit floating point processing

Avid Eucon enabled devices via DADman

Apple macOS and Windows compatible software

Control via Ethernet or Thunderbolt connection

Word Clock I/O

15W power on each Thunderbolt 3 port

Specifications

2 x Thunderbolt 3 Ports w. 15W Power Source Each

256 Bidirectional Channels at 44.1/48 kHz

256 Bidirectional Channels at 88.2/96 kHz

128 Channels at 192 kHz

64 Channels at 384 kHz

Audio Drivers

macOS


Core Audio Thunder|Core Audio Driver
Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
Core Audio Aggregates for More Applications I/O Control Connection for DADman
Control Connection for DADman

Windows


ASIO Thunder|Core Audio Driver
Compatible with Windows 10 and forward
One Application Can Connect to the Asio Driver
Control Connection for DADman
