Digital Audio Denmark AX Center - Base Unit
UPC/EAN #810164780010
MPN #NTP-DADAXCNTRBASE
Thunderbolt 3 audio interface with dual Mic & Instrument in, dual Headphones & Monitors outputs, built-in PRO|MON monitor control with speaker EQ and two slots for expansion cards
AX Center was born to sit in a rack right next to you in the studio, in your portable rig - or maybe even on your desktop. It's the audio interface that dreams are made of, as it unites the legendary audio quality of pristine Digital Audio Denmark AD & DA conversion with the renowned transparency and musicality of our mic preamps.
It's all about capturing the source truthfully and get it into any DAW you may use exactly as it is - and to get your production out exactly as you intended, envisioned and simply heard it.
Unmatched Sound Quality in Any Thunderbolt Audio InterfaceTried & Trusted PRO|MON Monitor Control from Mono to ImmersiveSPQ Speaker Processing: 128 Channels with a Total of 1024 EQ Bands and Individual Channel Delay256 Thunderbolt & 256 Dante ChannelsTailor to Fit Any Need with Expandable & Customisable I/O
Even without utilising the expansion options, you will get access to that über-musical and finger-licking delicious audio quality that our converters and preamps have been loved for by many of the world's most acclaimed audio engineers and producers.

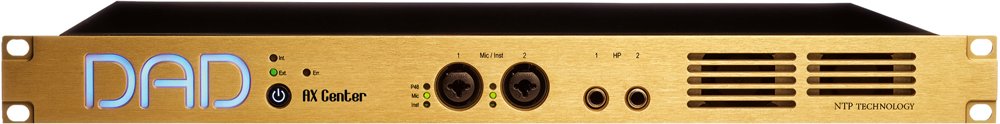

Easily accessible right in the front plate, you get two XLR / 1/4" Jack combo inputs for connecting microphones and instruments.
This is your right-out-of-the-box A/D conversion stage that is already coupled with the preamps that have only been available as part of our Analog In expansion card (with preamp license) until now.

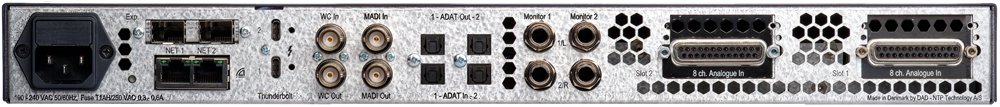

On the rear, you'll find one of two out-of-the-box D/A conversion stages, as you get two stereo outputs for connecting two sets of studio monitors on balanced jack connectors. We support that most studios - regardless of size - would like to have an alternative pair of studio speakers connected.
On the front, you get another D/A conversion stage via two independent headphones outputs - perfect for co-producing.
In total, AX Center provides you with 2 channels of A/D conversion (with preamps) and 8 channels of D/A conversion right out of the box.
Features
Thunderbolt 3 interface, with 256 bidirectional channels at 48 and 96 kHz, 128 channels at 192 kHz, 64 channels at 384 kHzMain and expansion Thunderbolt 3 Port w. 15W Power Source Each. Both of the two Thunderbolt 3 ports can function as main and expansion portAudio Drivers for macOS and WindowsMADI interface on BNC connectors with 64 Bidirectional Channels at 48kHz, 32 channels at 96kHz, 16 channels at 192 kHz and 8 channels at 384 kHzDual ADAT interface on TosLink Light pipes with 16 Bidirectional Channels at 48kHz, 8 channels at 96kHz, and 4 channels at 192 kHz. Configurable also as 2 Ch. S/PDIF inputDANTE AoIP interface via Ethernet with 256 bidirectional channels at 48 kHz, 128 channels at 96 kHz, 64 channels at 192 kHzModule Slot for optional dual Madi module via 2 x SFP (LC Fiber or HD/BNC Coax) connectors with 128 Bidirectional Channels at 48kHz, 64 channels at 96kHz, 32 channels at 192 kHz and 16 channels at 384 kHz.Two card slots available for DAD I/O Expansion CardsWord Clock I/O, and Video Black and Burst input on BNC connectors128 channels speaker processing with a total of 1024 filters and delaySumming Processor 64 Output / 512 Input BussesInternal Router: 4096 x 409632bit Floating Point ProcessingDADman control software for macOS and Windows connecting via Ethernet or Thunderbolt.Pro|Mon monitor control functionality and integration for Avid Eucon Enabled Devices via DADman19" Rack Unit 1U Height
Specifications
2 Ch. microphone or instrument input? Dual stereo headphone outputDual stereo monitor output? A/D, D/A and D/D Converter with sample rates from 44,1 to 384 kHz and DSDUp to 984 Input and Output Channels? Router and Monitoring InterfaceThunderbolt 3 I/O (256 Ch.)Dante AoIP I/O (256 Ch.)MADI I/O (64 ch.)ADAT I/O (16 Ch.) / SPDIF (2 ch.)2 Slots for Optional Multi-Format DAD I/O Cards512x64 Ch. Pro|Mon Summing and Speaker 1024 ch. EQ Processing
