DBX  |  SKU: 24142

DBXPB48V

Patchbays

48-point 1/4" patchbay, half-normalled or de-normalled, front and rear access, rugged design, noise-free operation, ideal for studio signal routing

$238.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

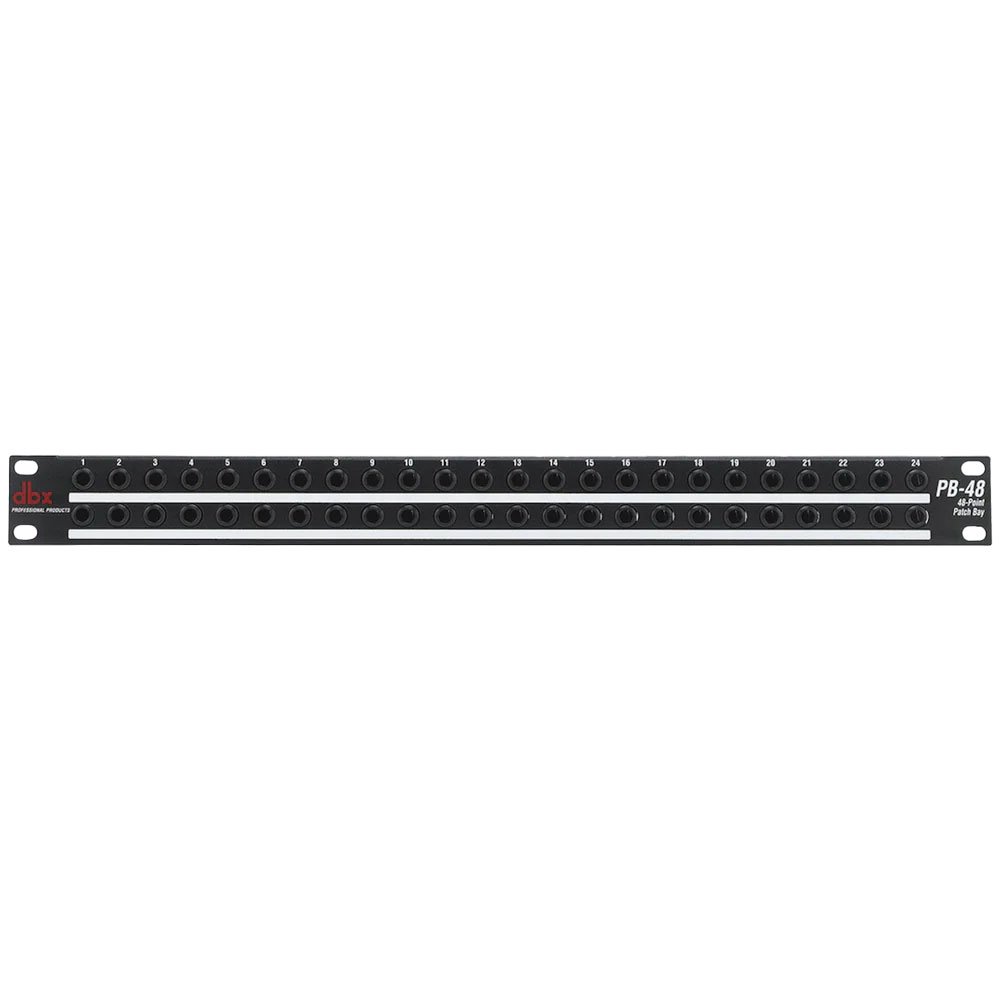

The dbx PB-48 is a rugged and reliable 48-point 1/4'' TRS patchbay designed to streamline studio signal routing. Available in half-normalled or de-normalled configurations, it offers consistent, noise-free performance and simplifies connections between mixers, outboard gear, and other audio devices. With 48 front and 48 rear 1/4'' jacks, the PB-48 helps reduce wear on equipment, provides quick rerouting options, and enhances overall studio workflow. Ideal for both professional and project studios.

Features

48-Point 1/4'' TRS Patchbay: Offers 48 balanced connections on both front and rear panels for efficient signal routing.

Available in Half-Normalled or De-Normalled Configurations: Choose the setup that best fits your studio workflow.

Reliable Signal Management: Easily connect, reroute, and organize audio signals without constant cable swapping.

Reduces Wear on Equipment Jacks: Acts as a buffer between your gear and frequent cable use, extending equipment lifespan.

Noise-Free Operation: Built for clean audio signal flow with minimal interference or hum.

Rugged Construction: Designed for long-term durability in both studio and live sound environments.

Specifications

General Specifications

Product Type: Audio patchbay

Model: PB-48V

Configuration: 48-point TRS (1/4 in) patchbay

Type: De-normalled configuration

Connectivity

Front Panel: 48 x 1/4 in TRS jacks

Rear Panel: 48 x 1/4 in TRS jacks

Connection Type: Balanced or unbalanced (TRS-compatible)

Design Features

All-metal rackmount chassis

Standard 1U 19-inch rackmount format

High-quality, rugged design for professional studio environments

Noise-free signal path

Ideal for reducing jack wear and optimizing signal routing

Application Use

Suitable for studio gear, mixers, outboard processors

Allows flexible signal rerouting without repatching rear gear

Reduces wear on equipment input/output connectors
