DBX  |  SKU: 24153

DBXDB12V

D.I.

Active DI, phantom powered, low-noise circuitry, Neutrik XLR, 3-way pad, polarity invert, ground lift, transformer isolated, stackable rugged chassis

$238.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

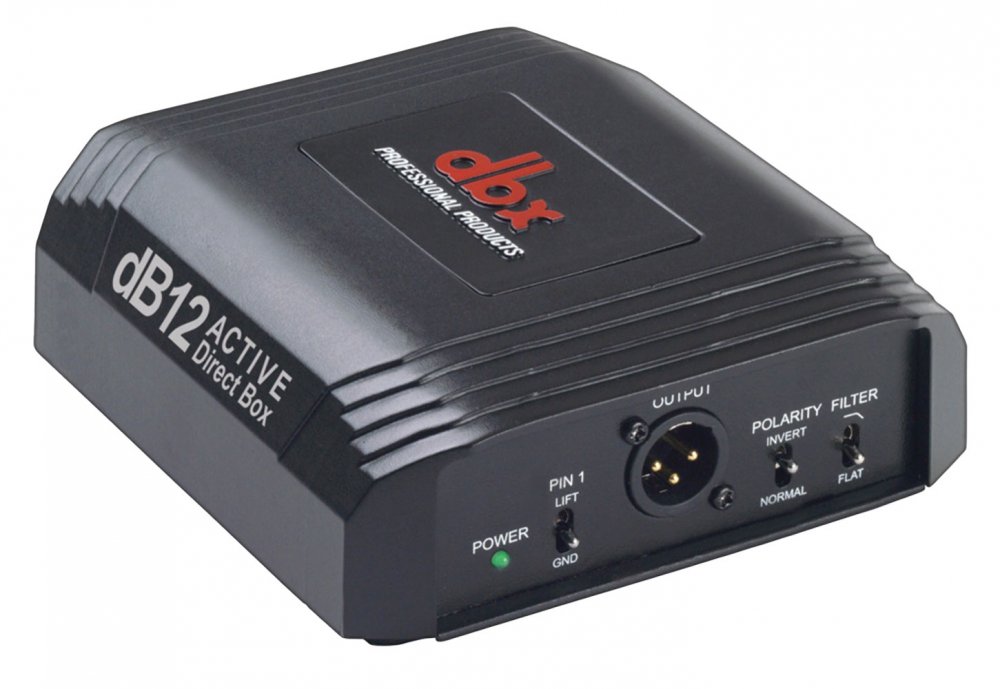

The dbx db12 is a premium-grade active direct box tailored for professionals demanding crystal-clear audio with maximum flexibility. Equipped with low-noise active circuitry and phantom power operation (+48V), it offers superior clarity and dynamic response, especially for low-output instruments or longer cable runs.

Built with custom mu-metal-shielded transformers, gold-plated Neutrik XLR connectors, and rugged chrome toggle switches, the db12 delivers consistent performance in both live and studio settings. It features a 3-way pad switch (0/20/40 dB) to manage instrument, line, or speaker-level signals, and provides essential tools like a ground lift, polarity invert switch, and high-cut filter to refine your sound. Compact yet sturdy, its stackable chassis and intuitive layout make it a powerful solution for any audio setup.

Features

Powered Performance: Active circuitry delivers clean, detailed sound with low noise and wide frequency response.

Phantom Powered: Operates directly from +48V phantom power with a green LED indicator for confirmation.

Handles Any Signal: Works with instrument, line, and speaker levels via a 3-position pad switch.

Rugged, Road-Ready Build: Strong, stackable metal chassis with rubber feet ensures durability on stage or in studio.

Professional Connections: Includes Hi-Z 1/4'' input, 1/4'' parallel thru, and balanced XLR output with premium Neutrik connectors.

Interference Control: Custom transformer, ground lift, and RF filtering keep your signal clean and quiet.

Tone Control Tools: Flat/high-cut filter and polarity invert switches give flexible sound shaping options.

Specifications

General Features

Type: Active direct injection box

Power: Operates via +48V phantom power

LED Indicator: Green LED for phantom power status

Transformer: Custom dbx mu-metal-shielded audio transformer

Circuitry: Low-noise active design with transformer isolation

Build: Rugged cast metal chassis with contoured underside for stacking

Footprint: Durable rubber foot for stability

Connectors

Input Connector: 1 x 1/4 in unbalanced, RF filtered

Thru Connector: 1 x 1/4 in unbalanced, parallel to input, RF filtered

Output Connector: 1 x male XLR balanced

Switches and Controls

Pad Switch: 3-way switch for 0 dB, -20 dB, or -40 dB attenuation

Filter Switch: Flat/High-Cut filter

Polarity Switch: Output polarity invert

Ground Lift Switch: Eliminates hum and buzz from ground loops

Performance

Input Impedance: 150k Ohm typical

Max Input Levels: +20 dBu (0 dB pad), +40 dBu (20 dB pad), +60 dBu (40 dB pad)

Output Impedance: 150k Ohm typical

Max Output Level: 0 dBu

Frequency Response: 20 Hz to 20 kHz, +/-2.5 dB

Total Harmonic Distortion: <0.01% (20 Hz-20 kHz BW), <0.005% at 1 kHz

Noise: < -105 dB unweighted (22 kHz BW)

Physical

Dimensions: 5.82 in L x 5.44 in W x 2.20 in H (148 x 138 x 56 mm)

Weight: 1.4 lbs (0.65 kg)
