DBX  |  SKU: 24152

DBXDB10V

D.I.

Passive DI, custom mu-metal transformer, XLR and 1/4" jacks, 3-way pad, polarity invert, ground lift, stackable chassis, rugged build, flat/high-cut filter

$175.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

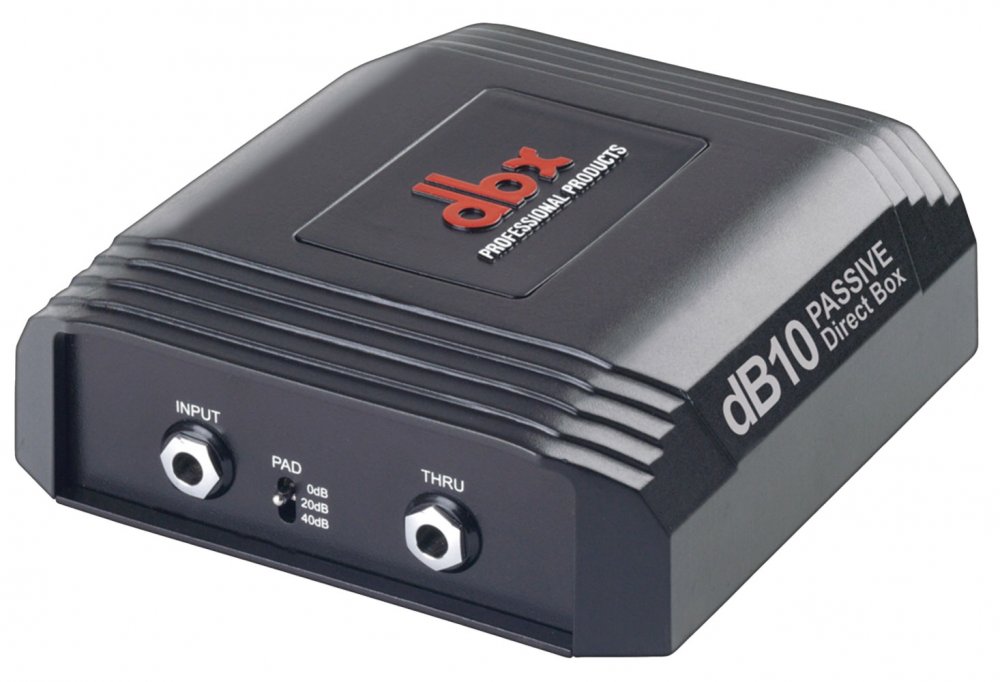

The dbx db10 is a rugged and high-performing passive direct box designed for pristine signal conversion in live and studio environments. Engineered with custom mu-metal-shielded transformers and Neutrik connectors, it ensures clean, noise-free transmission while preserving the true tonal character of your instrument or signal source.

Ideal for instruments, line-level, and even speaker-level signals, the db10 includes a 3-way pad switch (0/20/40 dB) to handle varying input levels. Additional controls like a polarity invert switch, ground lift, and high-cut filter give you greater flexibility in managing sound clarity and hum suppression. Housed in a stackable, heavy-duty metal chassis with premium chrome switches, the db10 is a reliable, interference-resistant solution for professional audio setups.

Features

Versatile Signal Handling: Works with instrument, line, and speaker level signals using a 3-position pad switch.

High-Quality Audio Performance: Features a custom dbx mu-metal-shielded transformer for clean, accurate sound.

Rugged, Stage-Ready Design: Durable metal chassis with rubber feet for stability and stackable convenience.

Professional Connectivity: Includes gold-plated Neutrik XLR output, Hi-Z 1/4'' input, and parallel 1/4'' thru jack.

Noise Control Tools: Ground lift switch reduces hum and buzz from ground loops.

Flexible Sound Shaping: High-cut filter and polarity invert switches help tailor the output signal.

Specifications

General Features

Type: Passive direct injection box

Transformer: Custom dbx mu-metal-shielded audio transformer

Input Types: Instrument, line, or speaker level

Build: Rugged cast metal chassis with contoured underside for stacking

Footprint: Stable with durable rubber feet

Circuitry: Low-noise, transformer-isolated signal path

Shielding: Dual-layer (chassis and transformer) for interference protection

Connectors

Input Connector: 1 x 1/4 in unbalanced, RF filtered

Thru Connector: 1 x 1/4 in unbalanced, parallel to input, RF filtered

Output Connector: 1 x male XLR balanced

Switches and Controls

Pad Switch: 3-way switch for 0 dB, -20 dB, or -40 dB attenuation

Filter Switch: Flat/High-Cut filter

Polarity Switch: Output polarity invert

Ground Lift Switch: Eliminates ground loops and hum

Performance

Input Impedance: 150k Ohm typical

Max Input Levels: +20 dBu (0 dB pad), +40 dBu (20 dB pad), +60 dBu (40 dB pad)

Output Impedance: 150k Ohm typical

Max Output Level: 0 dBu

Frequency Response: 20 Hz to 20 kHz, +/-2.5 dB

Total Harmonic Distortion: <0.01% (20 Hz-20 kHz BW), <0.005% at 1 kHz

Noise: < -105 dB unweighted (22 kHz BW)

Physical

Dimensions: 5.82 in L x 5.44 in W x 2.20 in H (148 x 138 x 56 mm)

Weight: 1.4 lbs (0.65 kg)
