DAN DUGAN  |  SKU: 18444

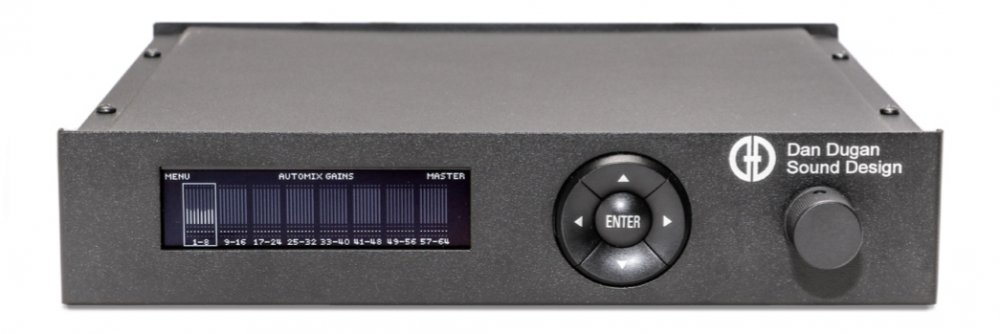

Model N Automatic Mixing Controller

Controllers

Automatic mixing controller with Dante for up to 64 audio channels

$6,395.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Dugan Model N Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This signal processor patches into the input insert points of an audio mixing console. Each mic channel is processed in the Dugan controller and returned to the console for mixing.

The Dugan detects which mics are being used and makes fast, transparent cross- fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model N crossfades unscripted dialogue, eliminating cue- ing mistakes, comb filtering from adjacent mics, and late fade-ups, while avoiding the choppy and distracting effects common to noise gates.

Features

64 channels of processing
96 kHz sampling rate supported (32 channels)
All Dugan algorithms: Speech System, Music System and Gain Limiting
Channels may be grouped into three independent automixers
Primary and secondary Dante network connectors
Power over Ethernet (PoE) capable
Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
Physical remote control from Dugan Model K Control Surface (sold separately)
Miniature control panel for setup or adjustments from front panel Standard Dugan linking for larger systems or 16 channels ADAT I/O

Specifications

audio

dante i/o:


64 channels @ 48 kHz sample rate
32 channels @ 96 kHz sample rate

adat i/o:

16 channels

gain:

Unity

sample rate:

48 " 96 kHz

bit depth:

24 bit

audio latency:

< 1 ms

frequency response:

10 Hz " 48 kHz, +/- 0.0075 dB @ 96 kHz

output noise:

-125 dBFS (20 Hz " 20 kHz), -128 dBAFS

distortion:

-125 dBFS

algorithms:

Dugan Speech SystemTM, Dugan Music SystemTM, Dugan Gain LimitingTM

linking:

Up to eight units can be linked into one system using an optical ring network

connectors

audio i/o:


Dante: Two RJ-45, Primary and Secondary networks
ADAT: Two TOSLINK optical

word clock i/o:

Two BNC 75-Ohm

linking i/o:

Two TOSLINK optical

network:

Two RJ-45, one accepts PoE (internal switch)

power

connector:

Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive

electrical:

Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC

poe:

02.3af-2003-compliant powered device (PD)

external supply


Input: 100-240 VAC, 50-60 Hz, 24W
Output: 18 V, 1.3 A

Approved:

UL, GS, CE, FCC. LPS, CCC(S&E)

physical

dimensions:

1 RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)

weight:


3.4 lb (1.54 kg)
7.0 lb (2.50 kg) in shipping box with rack mounting kit and power supply

Applications


TV news and sports panels, political debates
Conference reinforcement, video trucks Reality shows, game shows
Wireless mics for theater
Boardrooms, civic meeting rooms
Teleconferencing and distance learning Houses of worship

Benefits


Eliminates late upcuts
Reduces PA feedback and studio noise
Reduces comb filtering from adjacent mics
