Dan Dugan Model M Automatic Mixing Controller
MPN #Model M
Automatic mixing controller with Madi for up tu 64 channels of audio
The Dugan Model M Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This signal processor patches into the input insert points of an audio mixing console. It detects which mics are being used and makes fast, transparent cross-fades, freeing the mixer to focus on balance and sound quality instead of being chained to the fad- ers. The Model M tracks unscripted dialogue, eliminating cueing mistakes and late fade-ups, while avoiding the choppy and distracting effects common to noise gates.
Features
64 channels of processing
96 kHz sampling rate supported (32 channels)
All Dugan algorithms: Speech System, Music System and Gain Limiting
Channels may be grouped into three independent automixers
Optical and BNC MADI connectors
Power over Ethernet (PoE) capable
Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
Physical remote control from Dugan Model K Control Surface (sold separately)

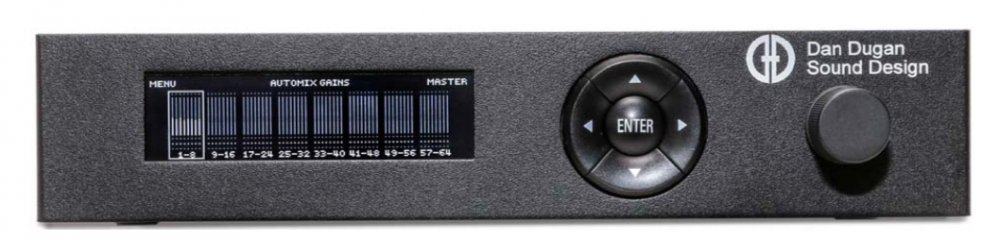

Miniature control panel for setup or adjustments from front panel Standard Dugan linking for larger systems or 16 channels ADAT I/O
Specifications
audio
madi i/o:
AES10-2008 (r2014) optical or coaxial
64 channels @ 48 kHz sample rate
32 channels @ 96 kHz sample rate
adat i/o: 16 channels
gain: Unity
sample rate: 48 " 96 kHz
bit depth: 24 bit
audio latency: < 1 ms
frequency response: 10 Hz " 48 kHz, +/- 0.0075 dB @ 96 kHz
output noise: -125 dBFS (20 Hz " 20 kHz), -128 dBAFS
distortion: -125 dBFS
algorithms: Dugan Speech SystemTM, Dugan Music SystemTM, Dugan Gain LimitingTM
linking
Up to eight units can be linked into one system in an optical ring network

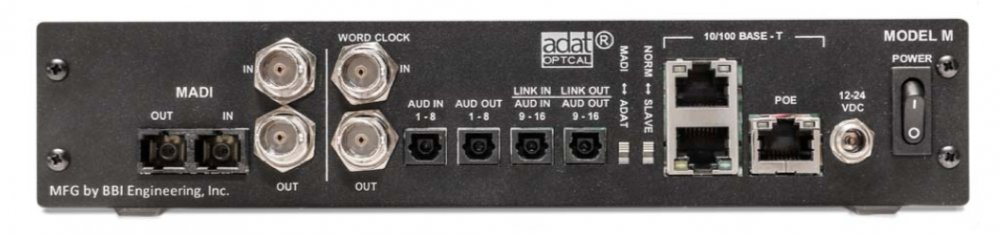

connectors
audio i/o:
MADI: Two optical (multimode) SC (IEC 61754-4), two coaxial BNC 75-Ohm
ADAT: Two TOSLINK optical
word clock i/o: Two BNC 75-Ohm
linking i/o: Two TOSLINK optical
network: Three RJ-45, one accepts PoE
power
connector: Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive
electrical: Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC
poe: 802.3af-2003-compliant powered device (PD)
external supply:
Input: 100-240 VAC, 50-60 Hz, 24W
Output: 18 V, 1.3 A
Approved: UL, GS, CE, FCC. LPS, CCC(S&E)
Physical
dimensions:
1 RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)
weight:
3.4 lb (1.54 kg)
7.0 lb (2.50 kg) in shipping box with rack mounting kit and power supply
Applications
TV news and sports panels, political debates
Conference reinforcement, video trucks
Reality shows, game shows
Wireless mics for theater
Boardrooms, civic meeting rooms
Teleconferencing and distance learning
Houses of worship
Benefits
Eliminates late upcuts
Reduces PA feedback and studio noise
Reduces comb filtering from adjacent mics
