Carnaby HE2

Graphic EQs

Rackmount 3-band parametric EQ with harmonic saturation for rich, analog tone. Features dual-mono, stereo, mid/side modes, USB control and flexible filtering options

$2,499.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

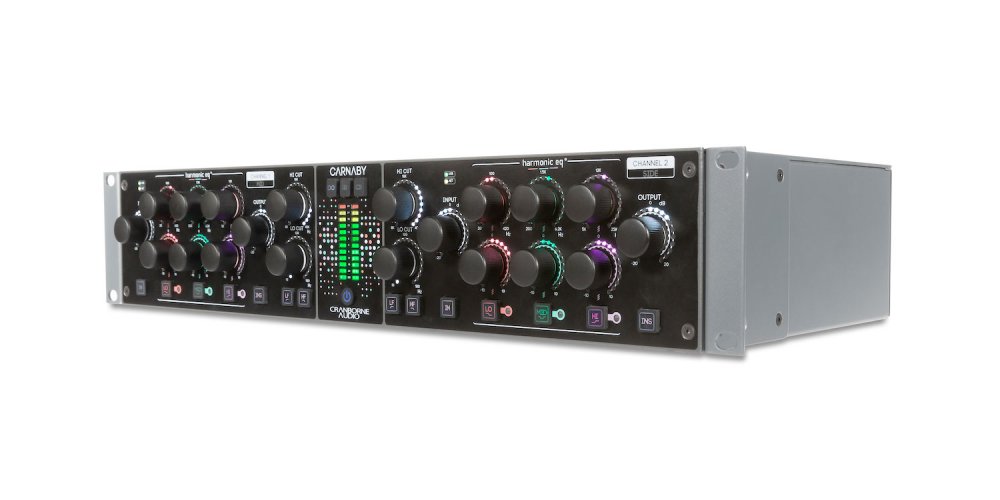

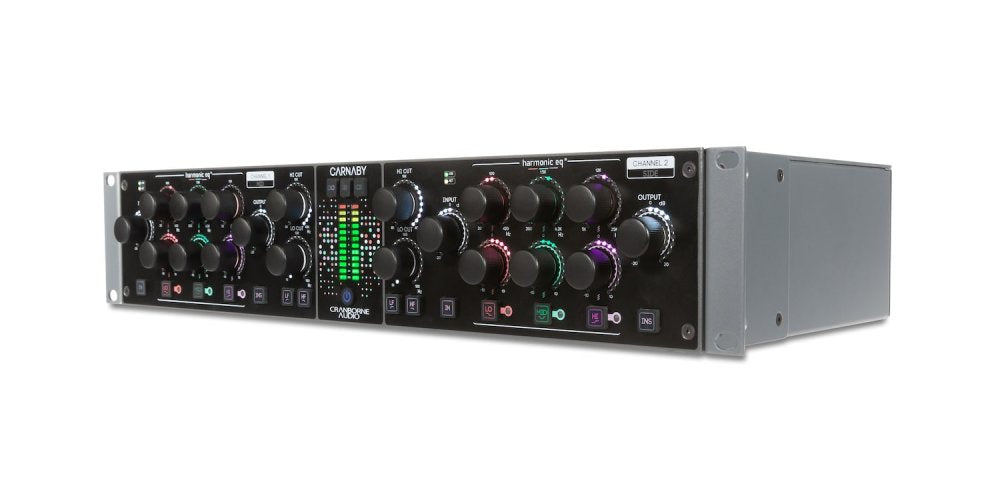

The Carnaby HE2 by Cranborne Audio is a powerful 19" rackmount evolution of the Carnaby 500 HarmonicEQ, designed to bring rich analog saturation and precise tonal control to professional audio workflows. Unlike traditional parametric equalizers, the Carnaby HE2 shapes sound using harmonic saturation, allowing users to boost or cut frequencies while adding musical warmth and depth. Its three-band HarmonicEQ circuit covers a wide frequency range, offering dynamic tonal enhancement with a natural, organic character. Whether used on individual instruments, mix buses, or entire mixes, the Carnaby HE2 provides an intuitive and flexible approach to shaping sound, making it an essential tool for producers, mixing engineers, and mastering professionals.

Expanding beyond a simple dual-channel EQ, the Carnaby HE2 features multiple operational modes, including dual mono, stereo, and mid/side processing, offering tailored control for different mixing and mastering applications. Additional filtering options, per-band bypass switches, and precise input and output level adjustments further refine its versatility. The included Carnaby HE2 Control software enables seamless remote operation via USB or network connection, integrating easily with DAWs for recall and automation. With its high-quality analog signal path and innovative approach to EQ, the Carnaby HE2 brings a new level of harmonic depth and creative sound shaping to any studio.

Features

HarmonicEQ Technology " A 3-band parametric EQ using harmonic saturation for tone shaping.

Per-Band Saturation " Independent control over low, mid, and high frequencies with harmonic saturation.

Dual Mono, Stereo & Mid/Side Processing " Flexible modes for different mixing and mastering applications.

High & Low Cut Filters " Additional filtering options for fine-tuned frequency control.

USB & Network Control " Remote operation via a plugin or standalone software.

External Inserts " Allows integration with outboard gear for expanded processing options.

Rackmount Design " 19" format with adjustable rack ears for different setups.

LED Meters " 12-segment peak output meter for precise monitoring.

Standalone or DAW Integration " Works with major DAWs for recallable settings and automation.

Simple Powering Options " Auto power mode available for rack-based setups.

Specifications

General Specifications

19" rackmount HarmonicEQ

3-band parametric EQ with harmonic saturation

Dual Mono, Stereo, Mid/Side processing modes

Front panel controls, USB & Network remote control

VST3, AU plugin, Standalone application compatibility

Firmware updates via USB

HarmonicEQ Specifications

Lo Band: Hard clipping, 20Hz"420Hz, shelf filter

Mid Band: Peaking filter, 200Hz"6.2kHz, fixed Q

Hi Band: Soft saturation, 5kHz"25kHz, shelf filter

Per-band Level Control: ±10dB, 0.5dB steps

Per-band IN Buttons: Enables/disables individual bands

Input Level Control: ±20dB, 1dB steps

Output Level Control: ±20dB, 1dB steps

Filters

Hi Cut: Progressive slope low-pass filter (-3dB at 8kHz"40kHz)

Hi Cut 1st order: 3dB/octave

Hi Cut 2nd order: 6dB/octave

Hi Cut 3rd order: 12dB/octave

Lo Cut: Progressive slope high-pass filter (-3dB at 18Hz"180Hz)

Lo Cut 1st order: 6dB/octave

Lo Cut 2nd order: 12dB/octave

Lo Cut 3rd order: 18dB/octave

Per-filter IN Buttons: Enables/disables Lo Cut and Hi Cut filters

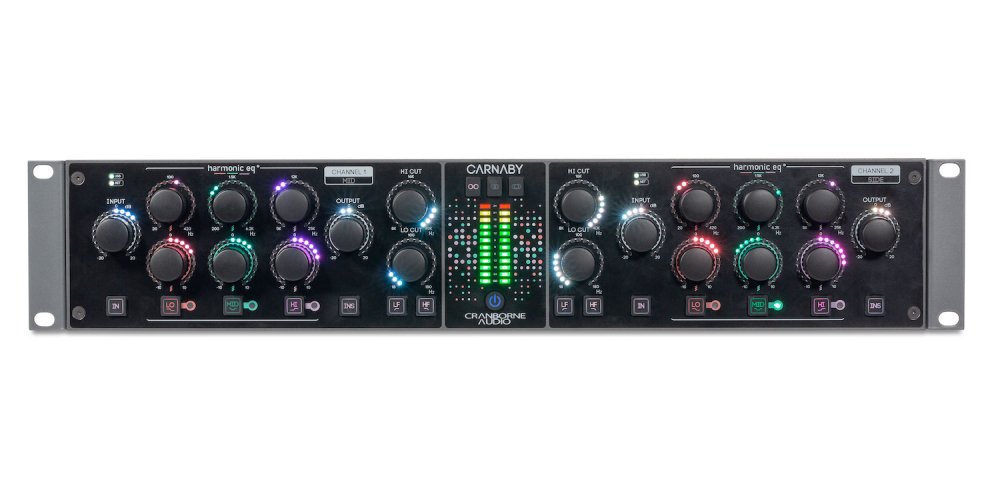

Front Panel Controls

USB/Network Indicators

Input Level Control: Adjusts saturation and gain

Lo, Mid, Hi Band Controls: Frequency, Level, and ON/OFF

Insert IN Button: Engages/disengages external processing loop

Mode Buttons: Selects processing mode (Dual Mono, Stereo, Mid/Side)

12-Segment LED Meter: Peak output with clip indicator (+24dBu max)

Power Button: Tap to power on, hold to power off

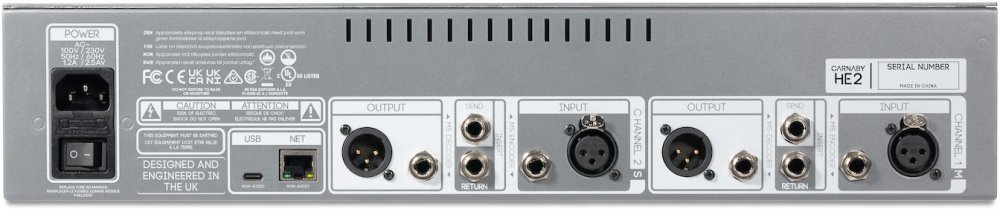

Rear Panel Connectors

Channel Inputs: Balanced XLR or TRS ¼" line-level

Channel Insert Send/Return: TRS balanced ¼" jacks (post input, pre-output)

XLR Output: Balanced, +24dBu max

¼" Jack Output: Impedance-balanced, +18dBu max

Network Port: Future support for remote control (not C.A.S.T compatible)

USB Port: Software control & firmware updates (no audio interface functionality)

Power Inlet/Fuse Holder: IEC AC input, Littelfuse 0235003 (F3AL250V)

Software Control

Plugin Formats: VST3, AU

Standalone Application for non-DAW users

Preset Saving & Recall per channel

DAW External Effect Insert compatibility

Compatible DAWs: Logic Pro, Ableton Live, Cubase, WaveLab, Nuendo, Reaper, Studio One

Rack Mounting Options

Standard: Flush-mounted rack ears

Recessed: Protective configuration for transport

Power & Safety

Powering On/Off: Rear mains switch + front panel button

Auto Power Mode: Internal jumper configuration for rack power control

Operating Temperature: +5 to 35C

Storage Temperature: -20 to 50C

Certifications: CE, FCC, RoHS

Electromagnetic Compliance: EN & FCC standards

Environmental Limitations: Not for operation above 3000m altitude or in tropical conditions

Included Accessories

IEC Power Cable

2mm Allen Key

Quickstart Guide
