CRANBORNE AUDIO  |  SKU: 23488

Carnaby 500

500 Series EQs/Compressors

Three-band EQ with harmonic overdrive saturation, fully analog signal path, responsive low, mid, and high bands, 500-series compatibility, intuitive controls

$699.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

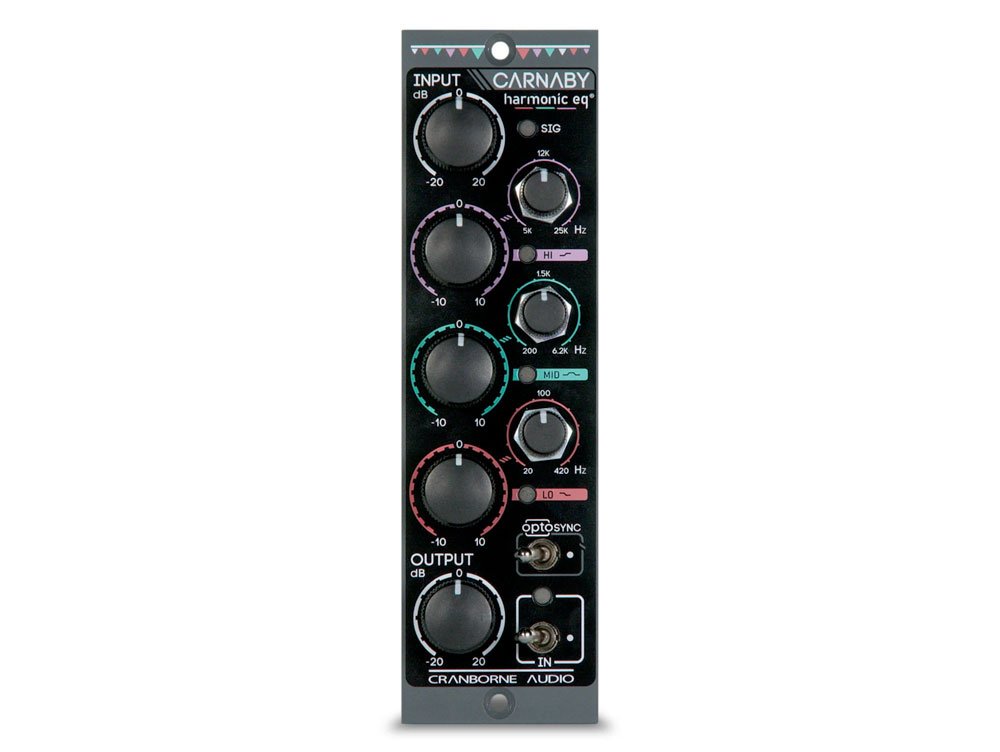

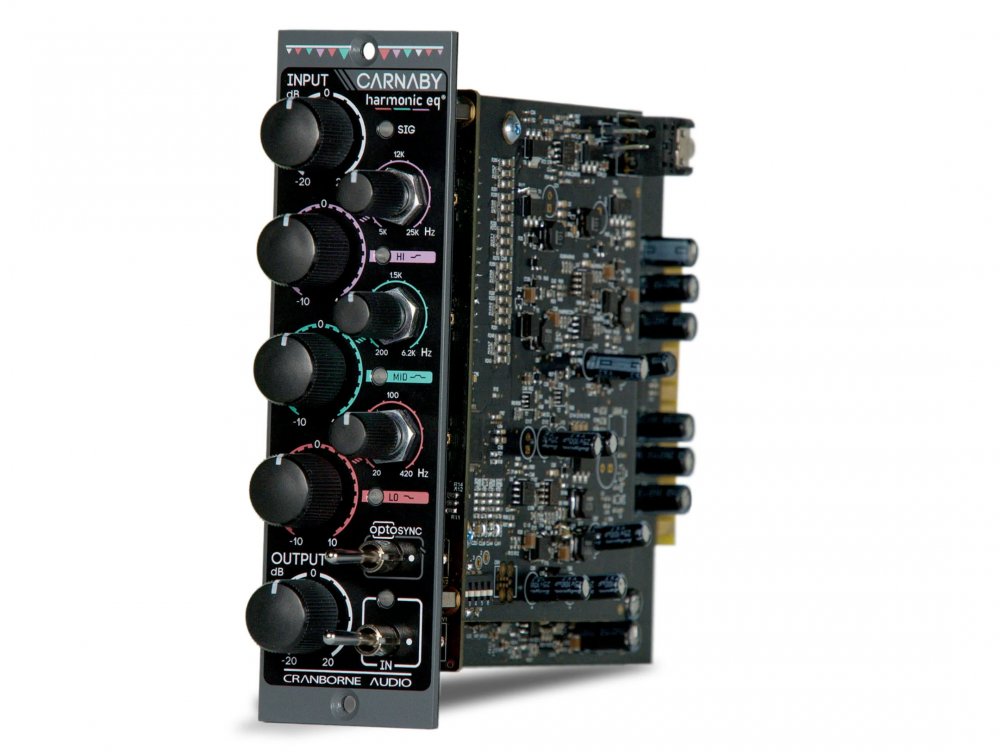

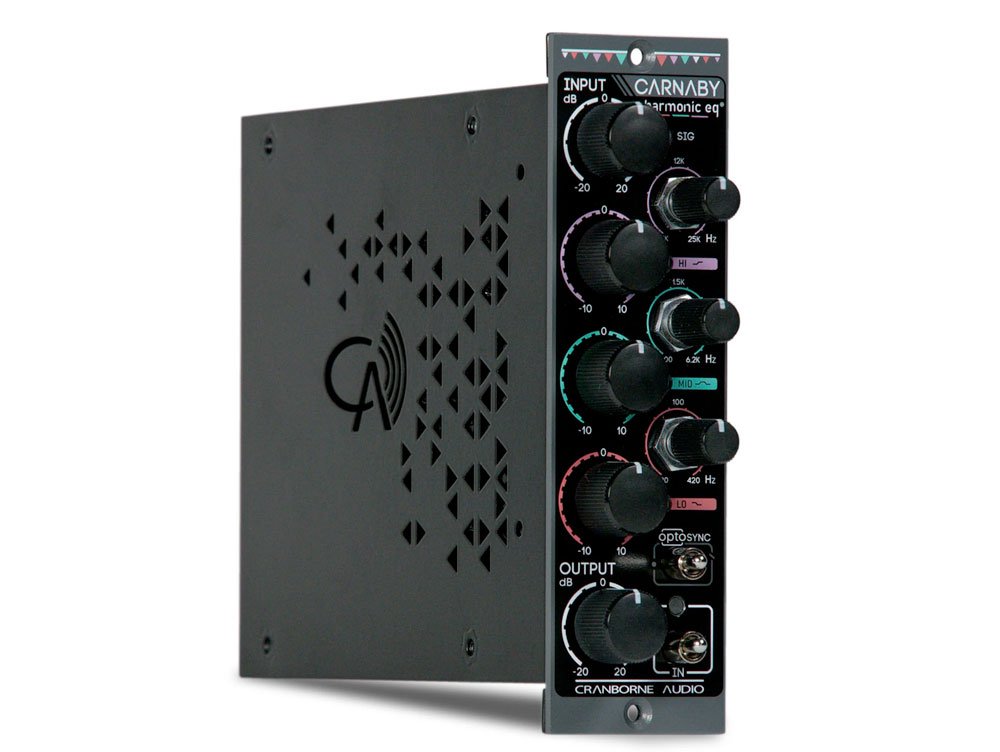

The Cranborne Audio Carnaby 500 is a groundbreaking 3-band parametric equalizer designed for the 500 Series format, introducing the world's first Harmonic EQ™ technology. Unlike traditional EQs that adjust amplitude and phase, the Carnaby 500 employs analog harmonic saturation to boost and cut frequency content, enriching your audio sources, stems, and mixes with genuine analog warmth and character.

Each of the three interactive bands offers ±10dB of boost or cut with sweepable and overlapping frequency controls, allowing for precise tonal shaping. The HI band ranges from 5kHz to 25kHz, utilizing smooth saturation to naturally extend high frequencies, adding air and breath to vocals and acoustic instruments. The MID band, a peaking filter with a fixed Q, covers 200Hz to 6.2kHz, applying saturation to emphasize harmonics across its range. The LO band spans 20Hz to 420Hz, using hard-clipping saturation to enhance sub-harmonic frequencies, perfect for adding depth to bass elements.

The Carnaby 500's dynamic response increases harmonic content as the circuits are driven harder. Input and Output level controls provide ±20dB of adjustment, enabling you to drive the unit for more saturation and distortion effects or back off for a cleaner EQ when needed. Additionally, the innovative OptoSync feature allows for wireless communication between modules, enabling linked controls during stereo operation without the need for cables.

With its unique approach to equalization and harmonic enhancement, the Cranborne Audio Carnaby 500 offers a versatile and intuitive tool for audio professionals seeking to add analog richness and precise tonal control to their recordings and mixes.

Features

Analog Harmonic EQ " Adds musical harmonic enhancement while sculpting your sound.

3-Band EQ Control " Independently adjust lows, mids, and highs with precision.

Dynamic Harmonic Saturation " Introduces harmonics that respond dynamically to your input, enhancing tone naturally.

500-Series Module " Compact design fits into any 500-series rack for easy integration.

Versatile Sound Shaping " Ideal for enhancing vocals, instruments, and mixes.

Transparent or Colored Sound " Choose between clean EQ boosts or rich harmonic coloration.

Durable Build Quality " Designed for reliable use in both studio and live environments.

Specifications

General Specifications:

3-band parametric 500 Series analogue EQ with unique Harmonic EQ™ circuit

Parametric LO and HI shelving bands with ±10dB of cut/boost and harmonic saturation

Parametric peaking MID band with ±10dB of cut/boost, fixed Q, and harmonic saturation

LO, MID, and HI LED indicators to display saturation level

±20dB Input and Output Level for dense harmonic saturation or clean EQ effects

OptoSync wireless communication between modules for linked controls during stereo operation

>" TRS socket for linking non-adjacent modules

Circuit auto-calibration for perfect stereo matching between all modules

True-bypass IN/OUT switching with complete or post input trim modes available on DIP switch

Stepped, front-panel controls for quick recall and precise feel

Technical Data:

Max Input Level: +26dBu (<0.003% THD)

Max Output Level: +26dBu (<0.003% THD)

Noise Floor: <-93dBu (all bands bypassed)

Input Impedance: 10 kOhms

Output Impedance: 150 Ohms

Current Draw: 140mA per rail (idle), 160mA (peak)

EQ Specifications:


Hi Band:

Filter Type: High Shelf Filter

Frequency Range: 5kHz - 25kHz

Boost/Cut: ±12dB @ -6dBu; +13dB, -18dB @ +14dBu

Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)


Mid Band:

Filter Type: Peak Filter

Frequency Range: 200Hz - 6.2kHz

Boost/Cut: ±5dB @ -6dBu; +10dB, -18dB @ +14dBu

Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)


Lo Band:

Filter Type: Low Shelf Filter

Frequency Range: 20Hz - 420Hz

Boost/Cut: ±8.5dB @ -6dBu; ±12dB @ +14dBu

Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)

Environmental:

Operating Temperature: +1 to 35 degrees Celsius

Storage Conditions: -20 to 50 degrees Celsius

Dimensions and Weight:

Width: 170mm (6.6")

Height: 31mm (1.2")

Depth: 133mm (5.2")

Unit Weight: 0.4kg (0.9 lbs)
