COMTEK  |  SKU: 12521

M-216

IFB/IEM Receivers

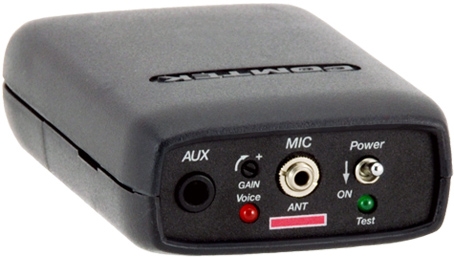

The M-216 transmitter incorporates digital and analog technologies to produce low residual noise, wide dynamic range, and extended frequency response.

$879.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The transmitter's microcontroller automatically sets the modulation for companding or non-companding audio processing when the corresponding channels are selected. The channel selection also sets either narrow-band operation on channels 1-40 (5 kHz deviation) or high-fidelity, wide-band operation on channels 41-60 (10 kHz deviation). The optional microphone mute switch turns off the microphone without turning off the aux input.

Features

High Fidelity Performance

Adaptive Channel Selection

Dual Function Versatility

Specifications

Audio Input:


Microphone input impedance for electret type microphone - 3k ohm
Aux/Line input impedance - 10k ohm at 0 dB nominal

Connector:


Microphone - Micro-mini 2.5 mm mono (locking or non-locking)
Auxiliary - Mini 3.5 mm Stereo
Audio - Tip and Sleeve
Battery Charging - Tip and Sleeve
External 9V power - Ring and Sleeve

Controls and Indicators:


Power On/Off switch
Synthesized channel selection switches
Microphone mute switch (Optional)
Audio input gain control
Modulation voice level indicator

Antenna System:


Body-worn microphone cord or whip antenna plugged directly into microphone connector when auxiliary input it used

Frequency Response:


80 Hz to 10 kHz

Modulation:


5 kHz deviation Ch. 1-40 (non-companded)
10 kHz deviation Ch. 41-60 companded

RF Power Output:


10 mW to the antenna system

Out-of-Band Emissions:


Better than 45 dB below carrier

Current Drain:


17 mA constant current

Weight:


4 ounces (110 grams)

Battery:


9 V alkaline for up to 35 hours of operation
9 V Nickel-Metal Hydride rechargeable for up to 15 hours of operation

Dimensions:


1 1/6" x 2 1/2" x 3 1/4" (27 mm x 57 mm x 83 mm)
