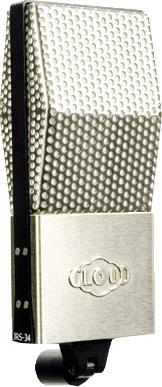

Handcrafted entirely in the US, the Cloud JRS-34 combines the best attributes of vintage and modern technologies to create a high-quality active ribbon microphone.

From direct RCA lineage comes the best of the vintage style ribbon sound. Handcrafted entirely in the US, the JRS-34 combines the best attributes of vintage and modern technologies to create a high-quality active ribbon microphone ideally suited for music and voice. The active JRS-34 requires phantom power and has an output level compatible with virtually any modern preamp. Included is a beautiful handcrafted wooden box and a microfiber mic cover, designed to properly store and clean the microphone.

Designed in collaboration with Stephen Sank, the Cloud ribbon mics were given the model number prefix JRS in homage to the late Jon R. Sank, Stephen Sank's father (1934-1998). Known for his work with RCA that produced legendary microphones such as the BK-11 and BK-10A, the senior Sank succeeded RCA's Harry Olson as the guiding force behind the company's continuing development of ribbon microphones.

Built upon the shoulders of giant RCA mics, each JRS-34 ribbon is cut, corrugated, and installed by hand in precisely the same fashion as prescribed by Olson. New ideas expand the performance capabilities as well, bringing the design into the 21st century with the addition of custom audio transformers by CineMag Inc., internal spring mounted suspension, patented rounded magnet, active "Cloudlifter" JFET technology, and much more.

Features

  • Figure 8 polar pattern w/ -35db null at 90°
  • Patented Rounded Magnet technology
  • Phantom Powered "Cloudlifter" Class A, Discrete Circuity
  • Frequency Response: 20 Hz to above 20 kHz
  • Maximum SPL: 138 + dB SPL above 1 kHz
  • Output Sensitivity: -27 dBv/Pa
  • Ribbon element dimensions: .19 inches wide, 2.35 inches long, 1.8 microns thick
  • New mount offers 180 degree range of motion
  • Internally shock mounted
  • Built in XLR connector
  • Handmade entirely in the USA
  • Specifications

    Ribbon dimensions: .19" wide, 2.35" long, 1.8 microns thick
    Dimensions: 7.75" x 3" x 1.75"
    Weight: 1.03lbs
    Frequency Response: 20 HZ - > 20kHz
    Output Sensitivity: -27 dBv/Pa
    Max SPL: 138 dB > 1kHz
    Out Impedance (in Ohms): 150 ohms
    Recommended Load (in Ohms): 1kohm or greater
    Supplied Accessories: Wood Case, Mic cover
    Optional Accessories: Cloud U1 Shockmount
