Clear-Com CC-220

MPN #CC-220-X4

$470.00

Be the first to write a review

Free shipping in Canada. Conditions

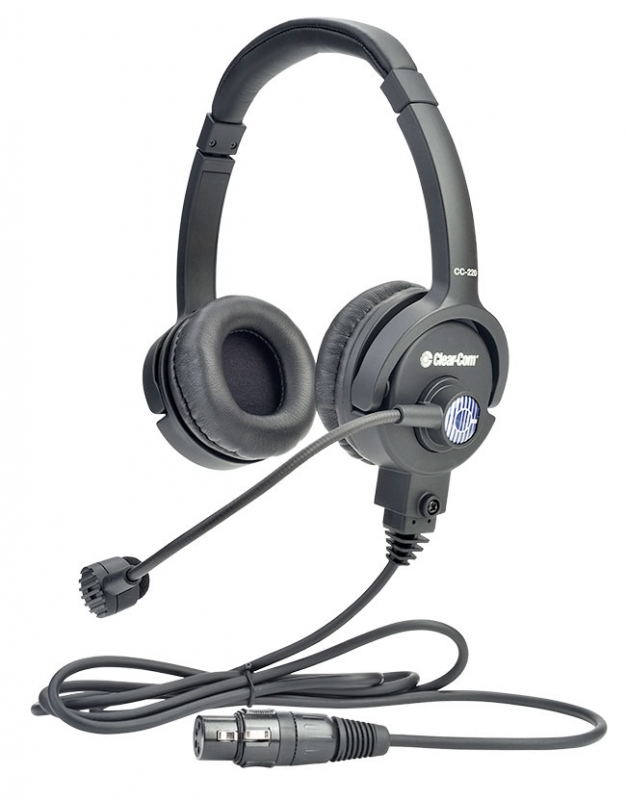

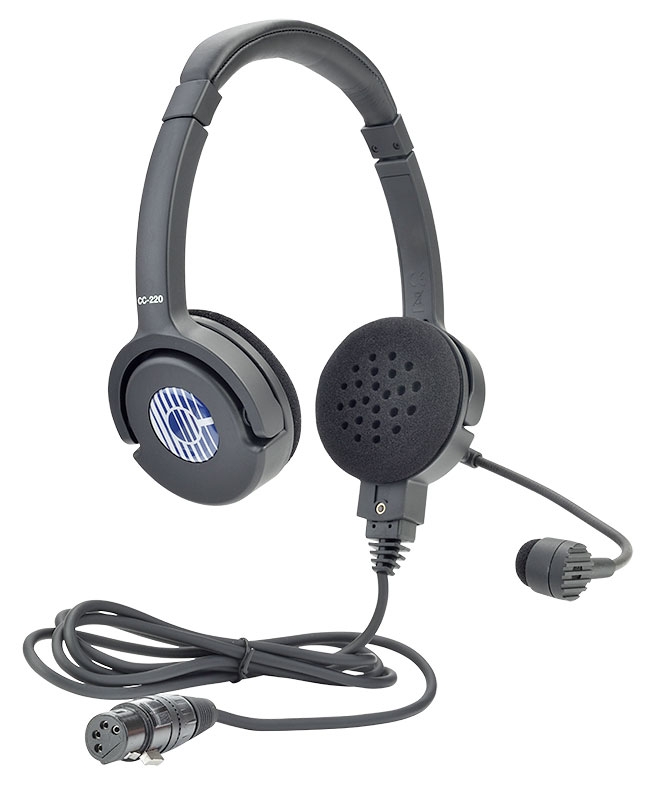

Double-Ear High Quality Headset/Microphone, XLR-4F with Dynamic Mic, Boom Switch. Includes Spare Foam Ear Pads and Headset Bag

The headset has a flexible design and includes both a soft leatherette or foam ear pads for superior comfort.

Features

High quality dynamic cardioid microphone

20Hz -20KHz frequency response

Choice of earpads: leatherette or foam

Flexible gooseneck microphone positioning

Boom rotation ON/OFF switch for quick microphone muting

Interchangable cabling for easy connector changing and repair

Fully serviceable headset

Specifications

Headphone

Type: Closed-back

Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil

Frequency Response: 20Hz v- 20kHz

Microphone

Element: Dynamic

Driver: 15mm, neodymium magnet

Polar Pattern: Cardioid

Frequency Response: 250Hz - 20kHz

Sensitivity

Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical

96 dB ±3 dB (SPL); at 1kHz typical

Power

Maximum: 500mW

Impedance

200 ohms ±30%; at 1kHz typical

Microphone: 200 ohms ±30%; at 1kHz typical

Connector

Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR

Dimensions
Packaging for CC-220:

6.7 x 8 x 3.5 in (WxHxD)

(170 x 205 x 90 mm)

Weight

6.8 oz (195g) without 8-pin cable assembly and M3*18mm SCREW
