UPC/EAN #853224003704     MPN #B80-BMB3-M3

$3673.00 (Special)

Save $409.00, Regular $4082.00
Financing available
Free shipping in Canada. Conditions

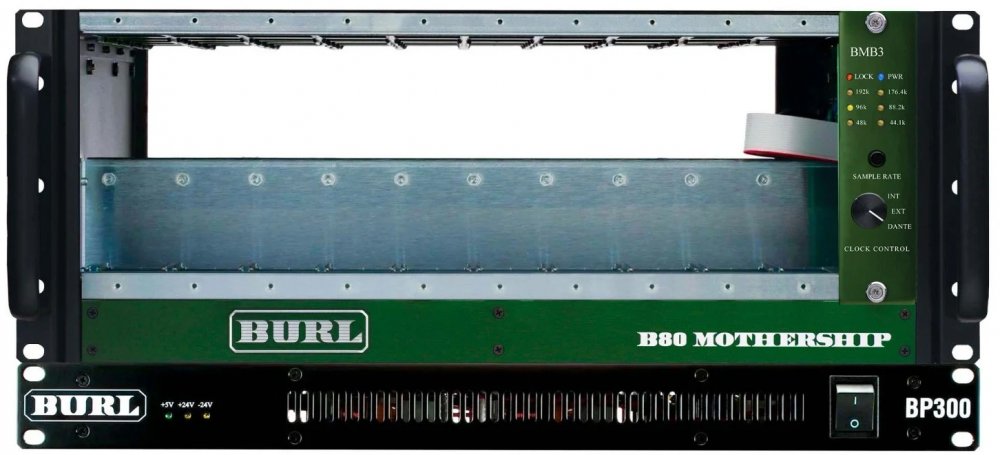

B80 MOTHERSHIP 3 Chassis with BP300 PSU, includes BMB3 Dante Motherboard with 1 BK3



BURL Audio is proud to announce MOTHERSHIP 3, the first major code update to the B80 and B16 MOTHERSHIPs in many years.

MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot!

MOTHERSHIP 3 MAX Channels per daughter card slot:
64 channels @ 44.1kHz, 48kHz
32 channels @ 88.2kHz, 96kHz
16 channels @ 176.4kHz, 192kHz

With the current MOTHERSHIP 3 offerings which include the new BAD16 and BDA16, our maximum channel IO usage is currently 16 channels per slot, but future MOTHERSHIP 3 daughter card offerings will include DANTE and MADI daughter cards which both have a maximum channel count of 64 channels @ 44.1kHz, and 48kHz. Stay tuned for that.

On the MOTHERSHIP 3 BMBx Motherboard side, the max channel counts for both BMB2-MADI and BMB3-DANTE have been expanded to 128 inputs or 128 outputs @ 44.1kHz and 48KHz. With the ten card slots and the BAD16s and BDA16s, a B80-BMB2 or B80-BMB3 MOTHERSHIP can be setup for 128 inputs x 32 outputs, 32 inputs x 128 outputs, 64 inputs x 96 outputs, or any other combination of 10 cards slots x 16 channels per card (160 total) @ 44.1kHz and 48kHz.

The B80-BMB3-M3 comes standard with the BMB3 DANTE Motherboard installed with 1x BK3 cards featuring two ethernet ports for use with Dante enabled DAWS and any Dante enabled device such as a digital mixing console. With one dante port, 64in/64out at 44.1k, 48k, 32in/32out at 88.2, 96k and 16in/16out at 176.4k, and 192k are supported.
B80 MOTHERSHIP Features:
? 4U main chassis
? BMB3 (Dante) motherboard
? 1 BNC Word Clock In
? 2 BNC Word Clock Out
? 10 card slots
? All slots accept AD/DA, AES and BCLK
? 4 and 8 channel analog cards

BMB3 Features:
? 1 Dante Ethernet ports (sold standard with one port)
? 64-channel IO at 44.1k, 48k, 88.2k, 96k
? 32-channel IO at 176.4k, 192k
? 16-channel IO at 176.4k, 192k
? 2 BNC Word Clock outputs
? 1 BNC Word Clock input
Includes:
Burl Audio B80 Mothership 3 AD/DA Converter Chassis
Burl Audio BMB3 Dante Card with 1 BK3
Burl Audio BP300 Power Supply
All Associated Power and Linking Cables
Manufacturers Warranty
