Burl Audio B80-BMB1-M3
UPC/EAN #853224003681
MPN #B80-BMB1-M3

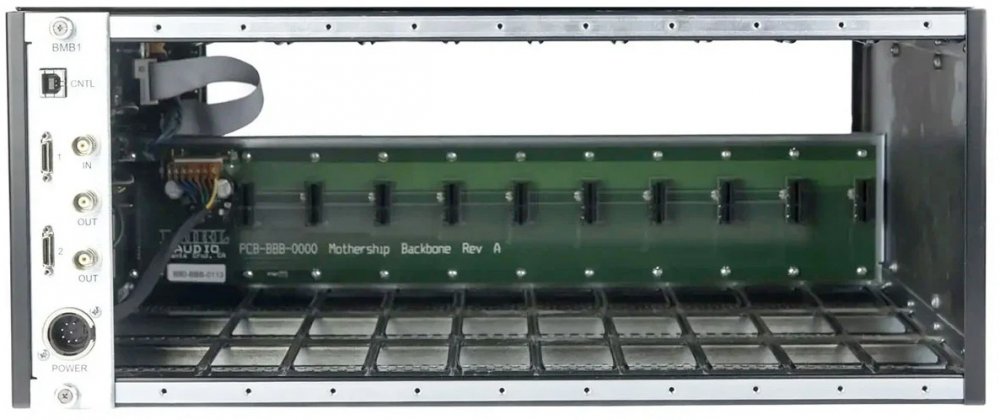

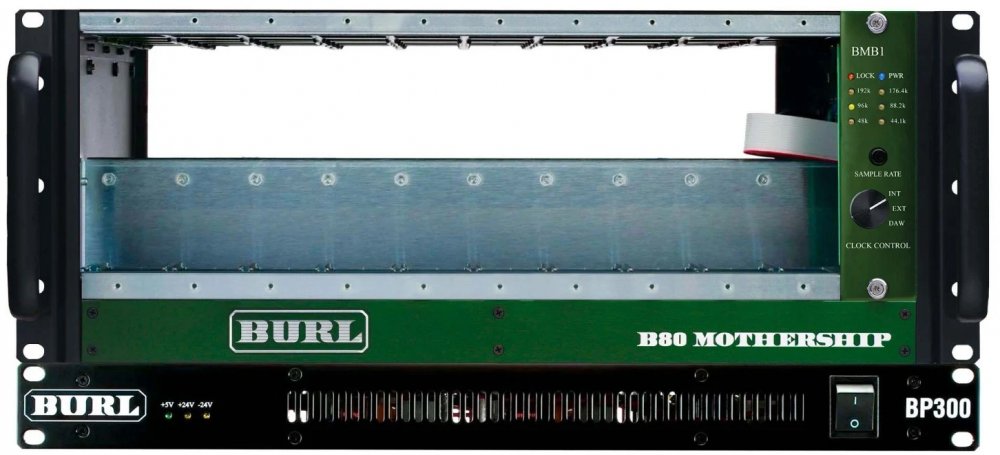

B80 MOTHERSHIP 3 Chassis with BP300 PSU, includes BMB1 Mini-Digilink Motherboard
BURL Audio is proud to announce MOTHERSHIP 3, the first major code update to the B80 and B16 MOTHERSHIPs in many years.
MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot!
MOTHERSHIP 3 MAX Channels per daughter card slot:
64 channels @ 44.1kHz, 48kHz
32 channels @ 88.2kHz, 96kHz
16 channels @ 176.4kHz, 192kHz
With the current MOTHERSHIP 3 offerings which include the new BAD16 and BDA16, our maximum channel IO usage is currently 16 channels per slot, but future MOTHERSHIP 3 daughter card offerings will include DANTE and MADI daughter cards which both have a maximum channel count of 64 channels @ 44.1kHz, and 48kHz. Stay tuned for that.
On the MOTHERSHIP 3 BMBx Motherboard side, the max channel counts for both BMB2-MADI and BMB3-DANTE have been expanded to 128 inputs or 128 outputs @ 44.1kHz and 48KHz. With the ten card slots and the BAD16s and BDA16s, a B80-BMB2 or B80-BMB3 MOTHERSHIP can be setup for 128 inputs x 32 outputs, 32 inputs x 128 outputs, 64 inputs x 96 outputs, or any other combination of 10 cards slots x 16 channels per card (160 total) @ 44.1kHz and 48kHz.
The B80-BMB1-M3 comes standard with the BMB1 Motherboard that includes two Digilink connectors for direct hookup with Avid Pro tools. Burl Audio does awat with the expansion port, making both primary ports, that means you can play 64 adc or dac channels straight out od Pro Tools with one unit!
Features
B80 MOTHERSHIP Features:
? 4U main chassis
? BMB1 (DigiLink) motherboard
? 1 BNC Word Clock In
? 2 BNC Word Clock Out
? 10 card slots
? All slots accept AD/DA, AES and BCLK
? 4 and 8 channel analog cards
BMB1 Digilink Features:
? 2 DigiLink ports
? 64-channel IO at all sample rates
? 2 BNC Word Clock outputs
? 1 BNC Word Clock input
Specifications
Includes:
Burl Audio B80 Mothership 3 AD/DA Converter Chassis
Burl Audio BMB1 DigiLink Interface Card
Burl Audio BP300 Power Supply
All Associated Power and Linking Cables
Manufacturers Warranty
