Burl Audio B22 ORCA ALPS for B80
UPC/EAN #853224003483
MPN #B80-B22-ORCA-ALPS
$2762.00 (Special)
Save $308.00, Regular $3070.00
4 Channel DAC ORCA Control Room Monitor, ALPS Atten, Switchable Output Transformers for B80

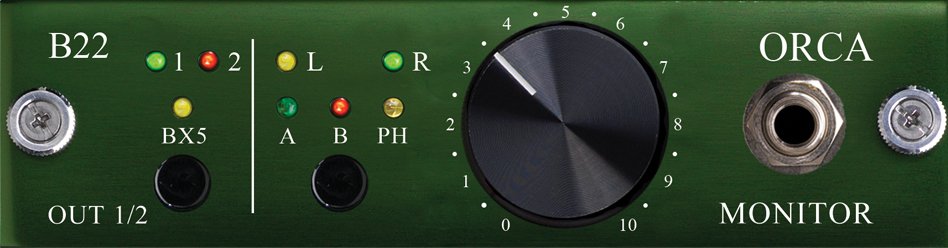

The Burl Audio B22 ORCA ALPS Control Room Monitor daughter card with ALPS audiophile attenuator.
The B22 ORCA utilizes the same analog, all-discrete circuit path philosophy as other BURL Audio products with an emphasis on the ultimate in sonic transparency and 3D stereo imaging.
Featuring the BURL NextGen BOPA14 op-amps, the B22 delivers tight bass and high definition throughout the audio spectrum. Instruments and mixes have a more real, 3D sound, with wider stereo image and even more depth while preserving the original shape and harmonic balance of the source.
The B22 ORCA employs 4 DAC channels. The first two are mix/mastering grade DAC channels with switchable BX5 output transformers. These channels can be used to feed a separate headphone amp or a mix/mastering chain. You can also use these channels to send out tracks for analog processing. The second two DAC channels feed the main monitor section which features two stereo speaker outputs and one stereo headphone output.
Couple the new B22 ORCA Control Room Monitor daughter card with a B16 Mothership and a B4 MIC/LINE input card and you have an amazing audiophile desktop recording rig. Or, combine the B22 ORCA with a B16 and a BAD4M and you have the ultimate 4 in x 4 out mastering solution.
Evolve your listening, mixing and mastering through the B22 ORCA Control Room Monitor and give you and your ears a competitive advantage.
Features

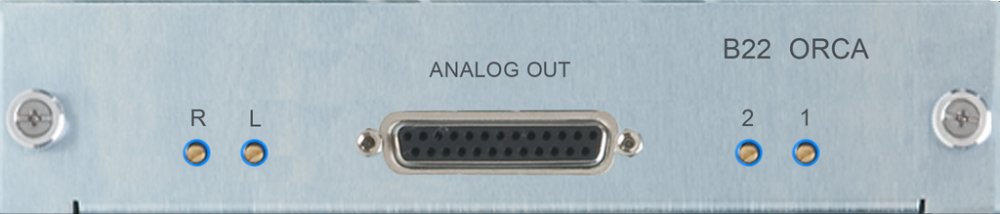

4-channel DAC8-channel DB25 connectivity (Tascam style)All class-A, NextGen Analog BOPA14 or BOPA11 op-amps2 DAC channels with switchable BX5 output transformer2 DAC channels for monitoring2 stereo speaker outputs and 1 stereo headphone outputExternal meter outputAlps audiophile attenuator (standard)Stepped 0.1% matched resistor attenuator (optional)Avid delay matchingDAC filter select
