Burl Audio B16-BMB4-M3
UPC/EAN #853224003759
MPN #B16-BMB4-M3
B16 MOTHERSHIP 3 Chassis with BMB4 SoundGrid Motherboard
BURL Audio is proud to announce MOTHERSHIP 3, the first major code update to the B80 and B16 MOTHERSHIPs in many years.
MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot!
MOTHERSHIP 3 MAX Channels per daughter card slot:
64 channels @ 44.1kHz, 48kHz
32 channels @ 88.2kHz, 96kHz
16 channels @ 176.4kHz, 192kHz
With the current MOTHERSHIP 3 offerings which include the new BAD16 and BDA16, our maximum channel IO usage is currently 16 channels per slot, but future MOTHERSHIP 3 daughter card offerings will include DANTE and MADI daughter cards which both have a maximum channel count of 64 channels @ 44.1kHz, and 48kHz. Stay tuned for that.
On the MOTHERSHIP 3 BMBx Motherboard side, the max channel counts for both BMB2-MADI and BMB3-DANTE have been expanded to 128 inputs or 128 outputs @ 44.1kHz and 48KHz. With the ten card slots and the BAD16s and BDA16s, a B80-BMB2 or B80-BMB3 MOTHERSHIP can be setup for 128 inputs x 32 outputs, 32 inputs x 128 outputs, 64 inputs x 96 outputs, or any other combination of 10 cards slots x 16 channels per card (160 total) @ 44.1kHz and 48kHz.

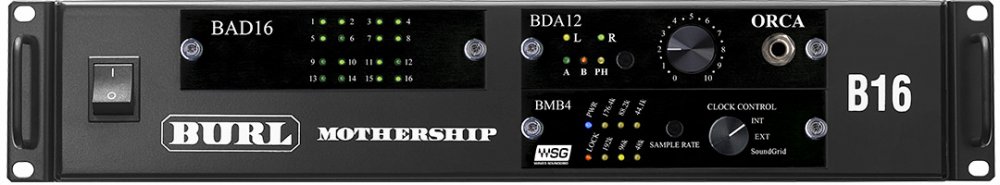

The Burl Audio B16-BMB4-M3 Mothership is a 16-channel AD/DA converter designed for SoundGrid systems. Equipped with the BMB4 motherboard, it ensures smooth integration with SoundGrid, offering high-speed networking for audio setups. The included M3 card delivers 8 channels of high-quality analog-to-digital conversion with Burl's BX1 transformer, providing warm, rich sound. Ideal for studios seeking both SoundGrid compatibility and premium audio performance, the B16-BMB4-M3 offers the flexibility and sound quality that Burl Audio is known for.
Features

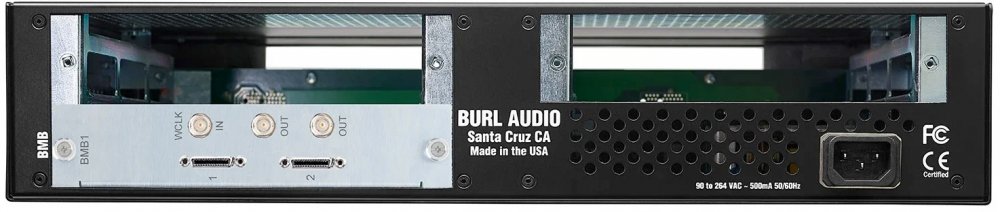

B16 MOTHERSHIP Features:
? Burl Black Compatibility
? 2U main chassis
? BMB4 (Soundgrid) motherboard
? 1 BNC Word Clock In
? 2 BNC Word Clock Out
? 2 daughter card slots
? AD/DA, AES and BCLK
BMB4 SoundGrid Features:
? 1 SoundGrid Ethernet port
? 64-channel IO at 44.1k, 48k, 88.2k, 96k
? 2 BNC Word Clock outputs
? 1 BNC Word Clock input
Specifications
Includes:
Burl Audio B16 Mothership 3 AD/DA Converter Chassis
Burl Audio BMB4 SoundGrid Card
All Associated Power and Linking Cables
Manufacturers Warranty
