Burl Audio B16-BMB2-M3-1612

UPC/EAN #853224003810 MPN #B16-BMB2-M3-1612

$11115.00

Financement disponible

Soyez le premier à écrire une évaluation

Livraison gratuite au Canada. Conditions

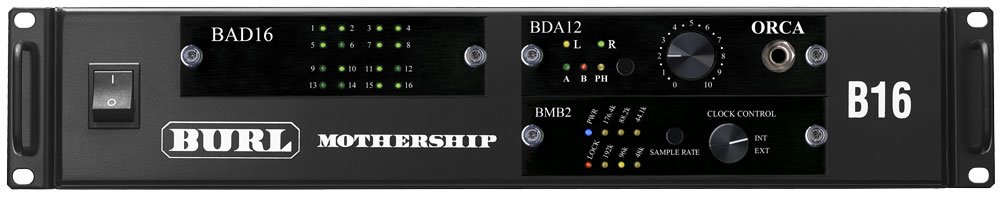

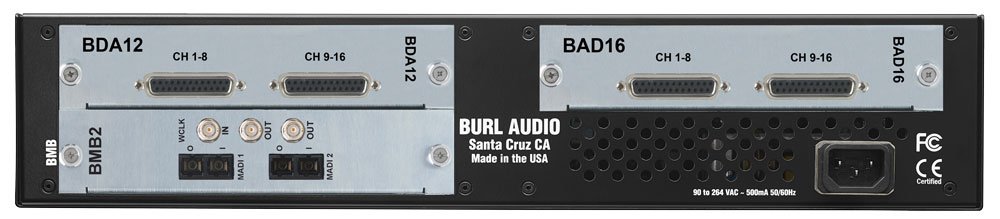

B16-BMB2-MADI MOTHERSHIP 3, BAD16 16ch ADC, BDA12 12ch DAC, Stereo ORCA Monitor

BURL Audio is proud to announce MOTHERSHIP 3, the first major code update to the B80 and B16 MOTHERSHIPs in many years.

MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot!

MOTHERSHIP 3 MAX Channels per daughter card slot:
64 channels @ 44.1kHz, 48kHz
32 channels @ 88.2kHz, 96kHz
16 channels @ 176.4kHz, 192kHz

With the current MOTHERSHIP 3 offerings which include the new BAD16 and BDA16, our maximum channel IO usage is currently 16 channels per slot, but future MOTHERSHIP 3 daughter card offerings will include DANTE and MADI daughter cards which both have a maximum channel count of 64 channels @ 44.1kHz, and 48kHz. Stay tuned for that.

On the MOTHERSHIP 3 BMBx Motherboard side, the max channel counts for both BMB2-MADI and BMB3-DANTE have been expanded to 128 inputs or 128 outputs @ 44.1kHz and 48KHz. With the ten card slots and the BAD16s and BDA16s, a B80-BMB2 or B80-BMB3 MOTHERSHIP can be setup for 128 inputs x 32 outputs, 32 inputs x 128 outputs, 64 inputs x 96 outputs, or any other combination of 10 cards slots x 16 channels per card (160 total) @ 44.1kHz and 48kHz.

The Burl Audio B16-BMB2-M3 Mothership is a 16-channel converter tailored for MADI systems. Featuring the BMB2 motherboard, it allows seamless integration with MADI, offering flexible connectivity for studios needing high-performance audio solutions. The included M3 card delivers 8 channels of top-tier analog-to-digital conversion, enhanced by Burl's BX1 transformer, giving recordings a rich, analog warmth. Ideal for professionals looking for premium sound and MADI compatibility, the B16-BMB2-M3 combines exceptional audio fidelity with the modularity and flexibility Burl is renowned for.
