BSRF AS-122
MPN #AS-122

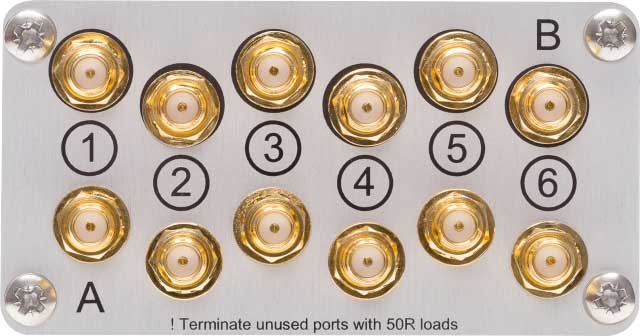

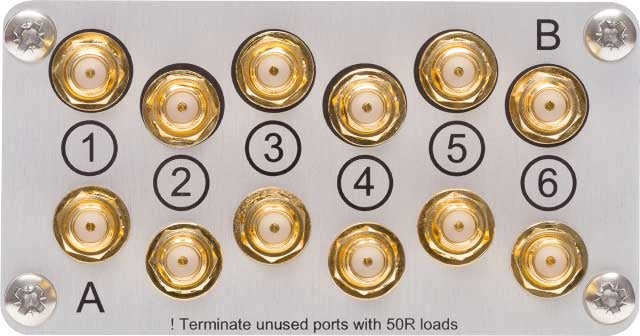

Dual Channel Active Antenna Splitter " 6 SMA Outputs per Channel
AS-122 is a dual channel active antenna splitter (1 BNC to 6 SMA per channel) for use with up to six diversity receivers. With its rugged and compact housing, it is designed for harsh conditions and can easily be used in an audio bag or a sound cart.

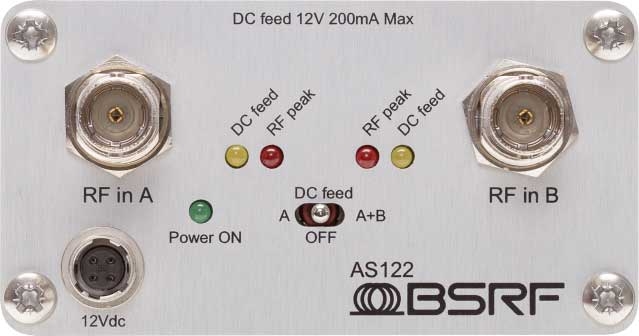

Both passive and active antennas can be plugged in BNC inputs using DC feed feature. Individual current limitation allows to detect that a problem happens on DC feed supply (check manual for more informations).
A LED indicates if RF level is too high on each channel. The unit is powered from an external DC supply plugged in Hirose 4 pin connector.
Specifications

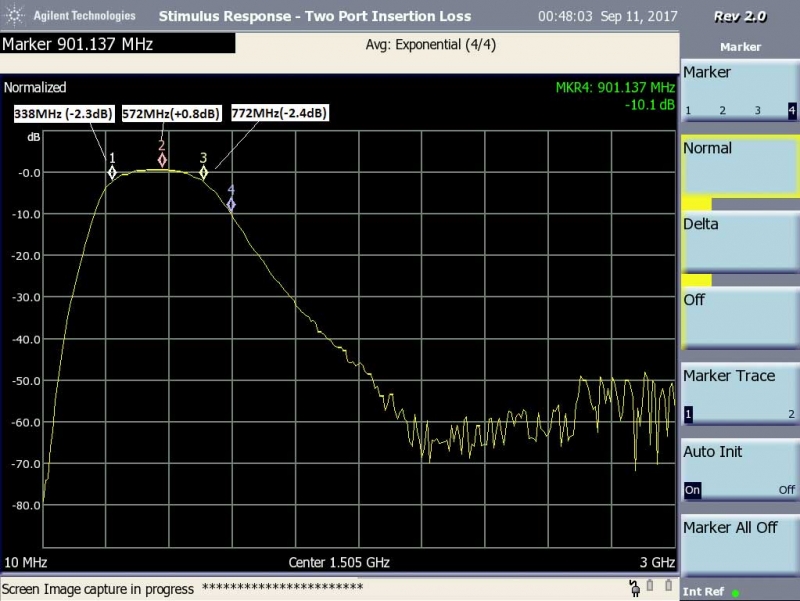

Bandwidth: 340MHz-770MHz
Gain: 0dB (+/- 1dB)
Noise figure: 1,5 dB
OIP3: 30dBm
Isolation between outputs: min 15 dB
RF inputs: 1xBNC 50 ohms
DC feed: 12V/200mA
RF outputs: 2 x 6 SMA 50 ohms
Current: 150 mA without active antennas
Supply: HRS4, 12-17V
Dimensions: 88 x 84 x 44mm
Weight: 265g
