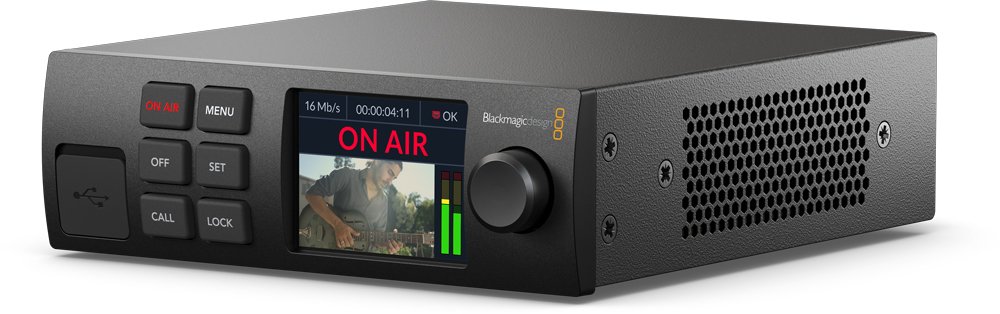

Blackmagic Design Web Presenter HD
UPC/EAN #9338716007398
MPN #BDLKWEBPTRPRO
Self contained streaming solution with broadcast H.264 encoder, direct streaming in HD, USB webcam, and 12G-SDI input with standards conversion
Live stream from any 12G-SDI video source direct to YouTube, Facebook, Twitter and more!
Now you can live stream to the world! Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! It's just like a modern broadcast television transmitter for a new global streaming audience! Plus the built in USB connections work like a webcam, so you can connect a computer and use any streaming software, or even Skype or Zoom. For redundancy, you can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data! Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data!
Make Live Streaming Easy!
Blackmagic Web Presenter is a self contained solution that includes a powerful hardware encoder, software for connecting to streaming platforms, and network connections. That means you don't need to buy an expensive computer or use complicated streaming software. Simply connect an SDI video source such as a live production switcher or a camera, then connect to the internet using the built in Ethernet connection. Or plug in a mobile phone to use mobile data! With settings built in for popular streaming platforms, you simply need to enter a streaming key and press on air! Plus you can simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used!
Connect 5G or 4G Phones for Mobile Data
If you're streaming from a remote location, or you need a backup for the main Ethernet connection, you can plug in an Apple or Android phone to connect to the internet via mobile data. For convenience, there are USB connections on both the front and rear panel that can be used for tethering phones. Plus it works with the latest high speed 5G phones, as well as 4G phones! Blackmagic Web Presenter will auto detect when a phone is connected and switch its internet connection to use it. You can select Ethernet or phone priority, which makes phone internet backup fully automatic. Plus, by using phone tethering and mobile data, Web Presenter becomes the perfect remote location streaming solution!
Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data! The built in USB connections also work like a webcam, so you can connect a computer and use any video software. You even get a monitoring output with video, audio meters, trend graphs and more!
Specifications

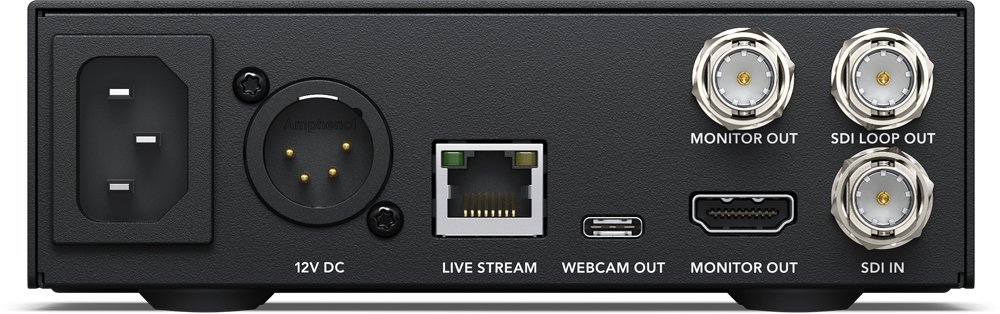

Connections
SDI Video Inputs
1
SDI Video Outputs
1 x loop out, 1 x monitor out.
SDI Rates
1.5G, 3G, 6G, 12G
HDMI Video Outputs
1 x monitor out
Webcam Output
1 x USB-C up to 1080p60
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Input Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Video Input Color Space
Rec.601, Rec.709, Rec.2020
3G SDI
Auto detects SMPTE level A or B on SDI input.
SDI and HDMI Monitor Out Video Standards
1080p50, 1080p59.94, 1080p60
Video Streaming Standards
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Streaming
Direct Streaming
Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
Closed Captions
Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.
Control
Control Panel

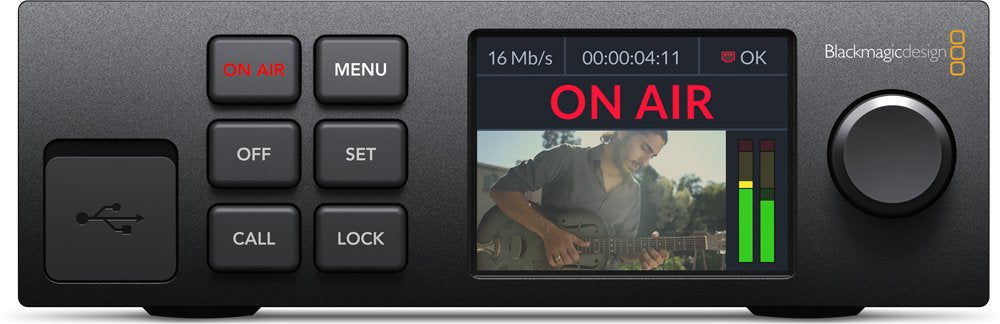

Built in control panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
Front panel, USB'C or ethernet.
Software
Compatible Services and Software
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC.
12V DC Input
1 x +12V DC 4'pin XLR.
Power Usage
21 W
What's Included
Blackmagic Web Presenter HD
