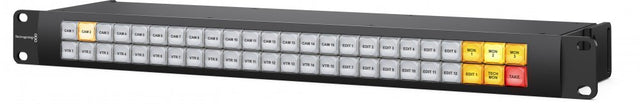

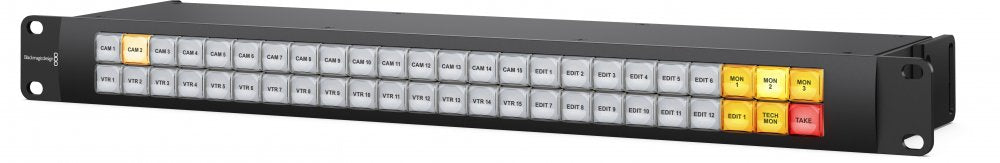

Remote control panel for Blackmagic Videohub routers with 48 programmable buttons, configurable source and destination buttons, and up to 10 macro buttons
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!
Spécifications

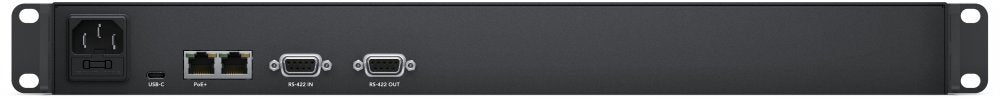

Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.

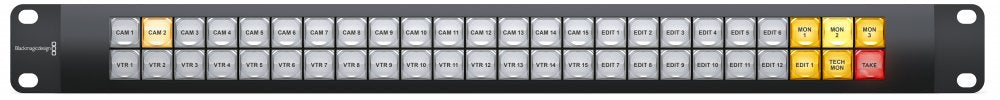

Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
