BLACKMAGIC DESIGN  |  SKU: 23821

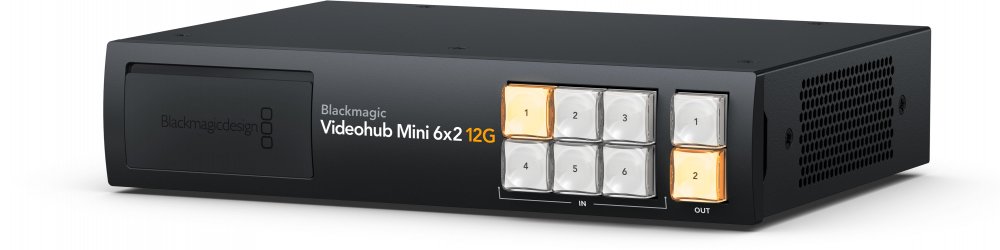

Videohub Mini 12G Router, 1/2U rack

Switchers

1/2 rack 6x2 12G-SDI router, SD/HD/UHD up to 2160p60, clean switch per output, front patch, USB webcam out, SDI re-clocking, remote software control

$1,185.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Blackmagic Videohub Mini 12G 6x2 is a space-saving yet robust video router designed to bring the full power of 12G-SDI switching into tight production spaces. With a 1/2 rack-width form factor, this 6-input, 2-output model fits perfectly into portable flypacks, mobile racks, and broadcast vehicles where every inch matters. Despite its size, it delivers pro-grade functionality, supporting SD, HD, and Ultra HD up to 2160p60 via its multi-rate 12G-SDI connections. Key to its versatility is the clean switch function on each output-ensuring seamless transitions between sources, ideal for streaming encoders, monitors, or recorders. The unit's SDI re-clocking on all inputs stabilizes long cable runs, preventing signal degradation and ensuring pristine video delivery.

Front panel controls provide fast routing with a cut-bus style interface and dedicated buttons for inputs and outputs. For added flexibility, the 6x2 model includes emergency front-panel 12G-SDI I/O-perfect for quickly patching in extra gear without reconfiguring rear connections. It also features a USB-C output that emulates a webcam, enabling easy integration with video software for HD streaming and conferencing. Whether used to expand input capabilities on an ATEM switcher, manage sources to HyperDeck recorders, or as a portable routing hub for remote production, the Blackmagic Videohub Mini 6x2 delivers big performance in a small, rack-ready package.

Features

1/2 Rack-Width Form Factor: Compact 6x2 SDI video router ideal for space-constrained setups like fly racks and broadcast trucks.

6 Inputs, 2 Outputs: Route any of six 12G-SDI sources to two outputs, all supporting SD, HD, and Ultra HD formats up to 2160p60.

Output-Based Clean Switching: Enables smooth transitions on selected outputs, without affecting other direct feed connections.

Front Panel Control: Dedicated input/output buttons for fast cut-bus style routing"perfect for quick changes in fast-paced environments.

Emergency Front Panel Patch Points: Includes front 12G-SDI input and output for urgent connections or gear additions without accessing rear ports.

USB-C Webcam Output: Front USB-C port appears as an HD webcam source, enabling direct streaming or recording from any SDI input.

SDI Re-Clocking on All Inputs: Automatically cleans and stabilizes video signals for long cable runs or degraded sources.

Multi-Format 12G-SDI Compatibility: Supports all common SDI formats (SD, HD-SDI, 3G, 6G, 12G) and allows mixed formats across the router.

Remote Software & Hardware Control: Works with Videohub Software Control for Mac, Windows, and iPad, plus optional Master and Smart hardware panels.

Flexible Power Options: AC and DC power inputs provide redundancy for continuous operation in critical broadcast scenarios.

Specifications

General Specifications

Compact 1/2 rack-width SDI video router (fits 2 units in 1RU)

Model: 6x2 (6 inputs, 2 outputs)

Modular design for portable racks, OB vans, and tight studio spaces

All-metal chassis for robust mobile and fixed installations

Video Routing

6x 12G-SDI inputs (rear)

2x 12G-SDI outputs (rear)

1x 12G-SDI input (front panel) - overrides input 6 when connected

1x 12G-SDI output (front panel) - mirrors output 2

USB-C output on front panel functions as 1080HD webcam (from SDI input)

Signal Format Support

Multi-rate 12G-SDI (auto-detecting)

Supports SD, HD, and Ultra HD video formats up to 2160p60

Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI signals

Mixed format routing support

Clean Switch & Re-clocking

Clean switch selectable per output (not input-based)

Clean switch locks to input 1 or external REF input for seamless switching

Built-in SDI re-clocking on all 12G-SDI inputs

Ensures optimal signal regeneration and reduced jitter over long cables

Control Interfaces

Front panel cut-bus style routing buttons : Destination (output) select --> Source (input) select

Supports hardware control panels: Videohub Master Control Pro, Videohub Smart Control Pro

Software control: Videohub Software Control (Mac, Windows, iPad)

SDK available for automation and custom integration

Front Panel Features

Emergency patch 12G-SDI input

Emergency 12G-SDI output (mirrors rear output 2)

USB-C port acts as 1080p HD webcam device for streaming/recording apps

Overrides last rear input/output when used

Power

Built-in international power supply

IEC AC power input

Locking 12V DC power input for redundancy

Physical Design

1/2 rack width " fits two units in 1RU

Lightweight, rugged aluminum enclosure

Front-to-back cooling design

Localized UI available in 13 languages

Included Accessories

IEC power cable

Quick start guide

Downloadable software for control and firmware updates
