Blackmagic Design SmartView Duo 2
UPC/EAN #9338716004465
MPN #HDL-SMTVDUO2
Dual 8 inch LCD screens in a compact rack mount design with support for SD, HD and 3Gb/s SDI video standards
Intelligent SDI monitoring with broadcast quality scopes!

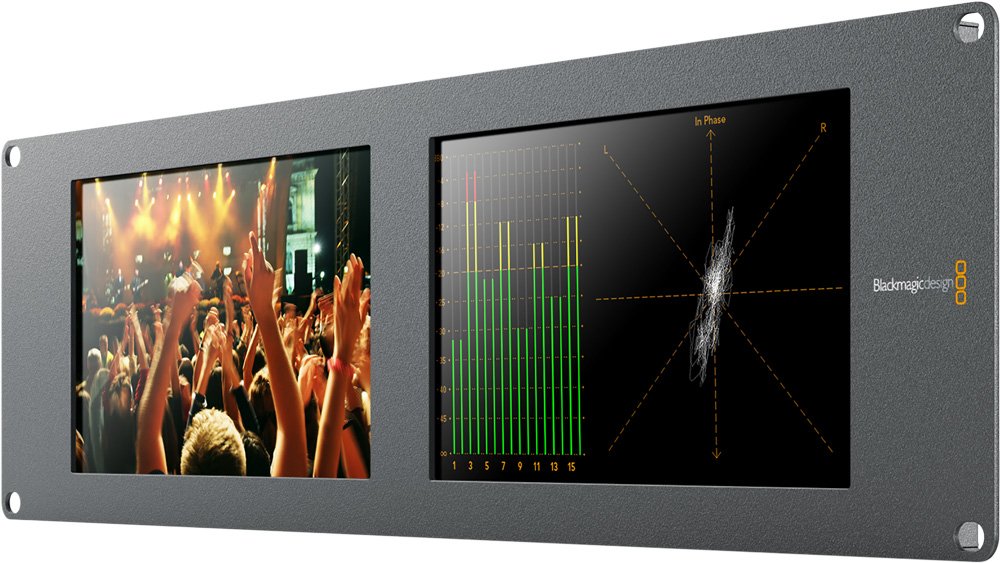

When you need high quality SDI monitoring, SmartView monitors are the perfect solution! SmartView monitors are extremely thin and lightweight, so are perfect for both broadcast and portable use, and automatically switch between SD, HD and 3G-SDI video formats. There are 2 great models; SmartView Duo has 2 independent 8 inch displays and SmartScope Duo 4K adds the flexibility of built in waveform monitoring that can be assigned to either of its 8 inch displays!
Perfect SDI Monitoring
SmartView monitors are the perfect choice to add SDI monitoring anywhere you need it. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more! When you're working with live production switchers you can build a video wall of camera monitors in your control room and see all your sources. You can mix and match different SmartView models in a rack for a customized monitoring solution where you can view your images and choice of scope displays side by side!

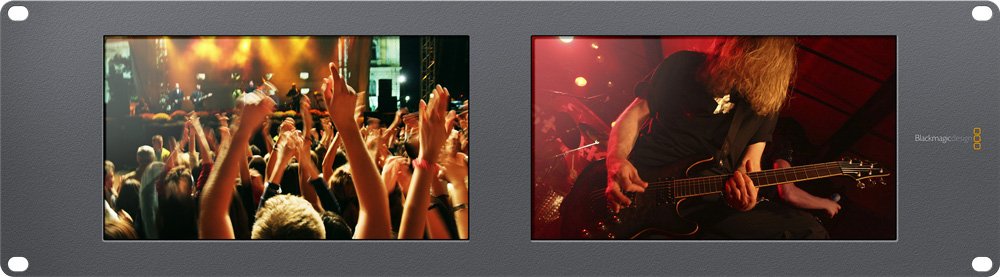

Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!
Specifications

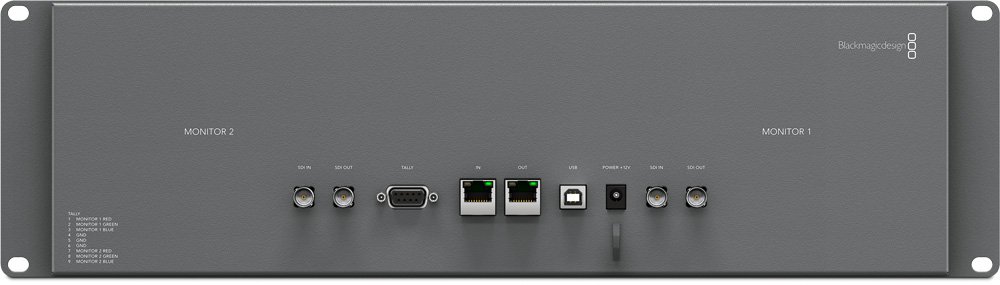

Connections
SDI Video Input
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Multi Rate Support
Auto detection of 2K, HD or standard definition inputs.
Updates and Configuration
Via USB 2.0 high speed (480 Mb/s)
Ethernet
10/100 BaseT with loop through.
Tally
9-pin D connector
Standards
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
SDI Color Space
REC 601, REC 709
SDI Auto Switching
Automatically selects between SD, HD and 3 Gb/s SDI.
Video Sampling
4:2:2 and 4:4:4
SDI Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Software
Internal Software Upgrade
Via included firmware updater software.
SmartView Utility Software
Via USB or Ethernet.
Power Requirements
Power Supply
12V universal power supply included with international socket adapters for all countries.
Power Consumption
< 20 Watts
Operational Voltage Range
12V - 15V
What's Included
SmartView Duo
Power Supply
Welcome wallet with QR code for software download
