UPC/EAN #9338716007183     MPN #CONVCMIC/SH03G/WPSU

$105.00

Free shipping in Canada for orders over $200

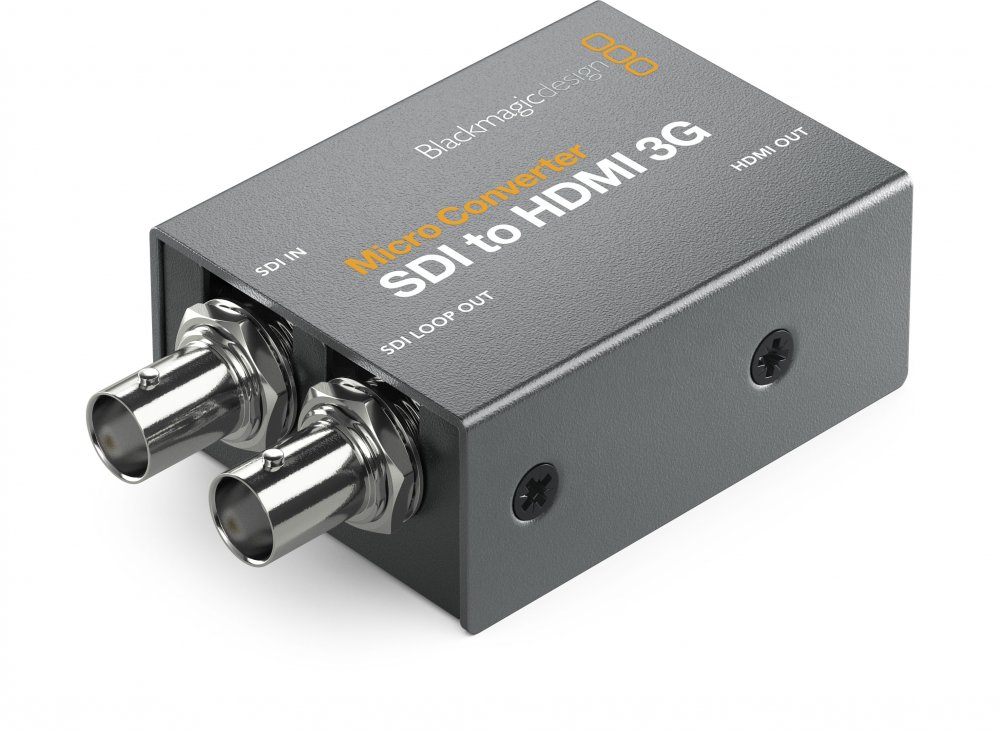

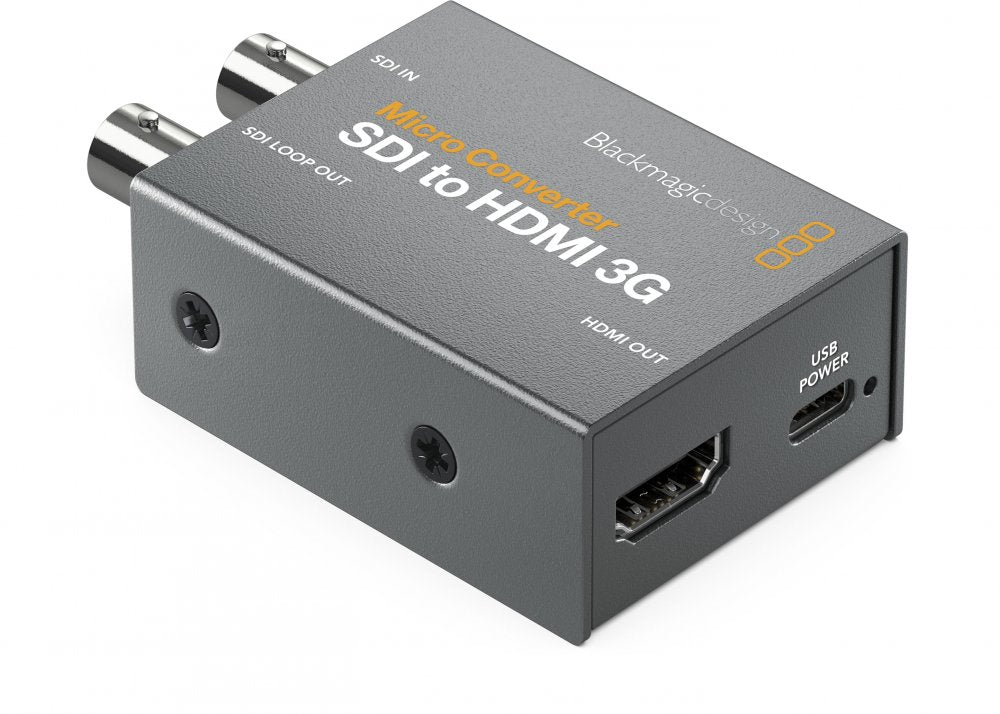

3G-SDI to HDMI broadcast converter with 17 point 3D LUT, full size HDMI, and compatibility with up to 2Kp60 video



The world's smallest USB powered broadcast converters!
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

Pocket sized broadcast quality converters!
Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them to turn any computer display, television or video projector into a high quality color calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending HDMI long distances using SDI.

Precision engineered broadcast grade converters!
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
  • Supports DCI formats and film rates
  • Auto detection of SD or HD
  • Universal power supply included
  • Connections
    SDI Video Inputs
    1 x SD, HD or 3G-SDI.

    SDI Video Outputs
    1 x SDI loop out.

    HDMI Outputs
    HDMI Type A out.

    Multi Rate Support
    Auto detection of SD or HD.

    Updates, Configurations and Power
    USB Type'C.

    Standards
    SDI Video Standards
    525i59.94 NTSC, 625i50 PAL

    HD Video Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60
    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

    SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M

    SDI Video Rates
    SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.

    SDI Color Precision
    4:2:2

    SDI Color Space
    YUV

    SDI Auto Switching
    Automatically detects SD, HD and level A or B for 3G'SDI.

    HDMI Video Standards
    525i29.97 NTSC, 625i25 PAL
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    HDMI Color Precision
    4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.

    HDMI Color Space
    YUV
