UPC/EAN #9338716007138     MPN #HYPERD/ST/DFHP

$1435.00

Financing available
Free shipping in Canada. Conditions

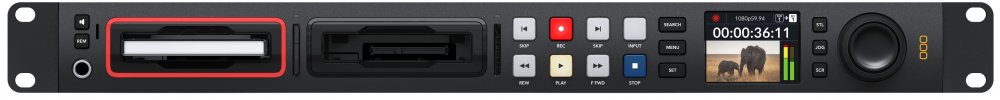

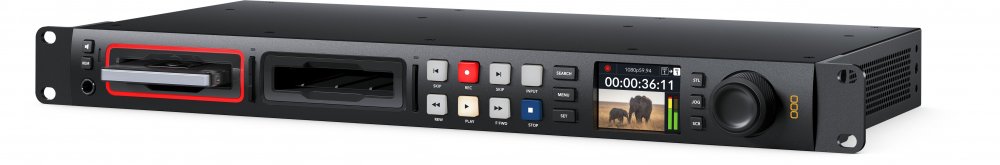

HD disk recorder with 6G-SDI I/O, two SSD slots, two SD card slots, transport control buttons, dedicated buttons for jog, shuttle and scroll search dial modes



Professional broadcast decks that record and playback using SD cards and SSD media!
HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!

Elegantly Designed Professional Broadcast Deck
The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!

4 Great HyperDeck Models!
There are 4 different models of HyperDeck Studio, perfect for all types of work! The 3G-SDI based HD Mini model records and plays H.264, ProRes or DNxHD files onto SD cards, UHS-II cards or external USB disks in SD and HD formats up to 1080p60. The larger HD Plus model adds better transport controls, front panel headphone and speaker, 6G-SDI with fill and key out, SDI monitoring and records H.264 up to 1080p60 or ProRes and DNxHD up to 2160p30. The full rack HD Pro model is the same as the HD Plus model but adds 2 SSD slots and a machined metal search dial with clutch. The incredibly powerful 4K Pro model records H.264, H.265, ProRes or DNx in SD, HD and Ultra HD in standards up to 2160p60!

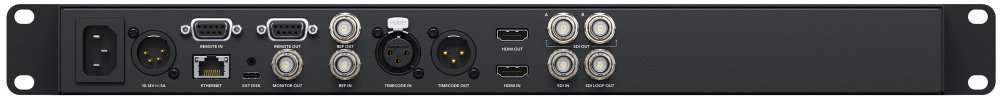

The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there's space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.
  • 6G-SDI I/O
  • Two SSD slots
  • Two SD card slots
  • Transport control buttons
  • Dedicated buttons for jog, shuttle and scroll search dial modes
  • SDI Video Inputs
    1

    SDI Video Outputs
    2

    SDI Monitor Outputs
    1

    SDI Rates
    270Mb, 1.5G, 3G, 6G.

    HDMI 2.0 Video Inputs
    1

    HDMI 2.0 Video Outputs
    1

    Built in Speaker
    Mono

    Audio Output
    1 x 6.35 mm headphone jack.

    Screen
    2.2 inch LCD.

    Timecode Connections
    1 x XLR In, 1 x XLR Out.

    Reference Connections
    1 x BNC In, 1 x BNC Out.
    Tri-Sync or Black Burst.

    SDI Audio Inputs
    16 channels embedded audio.

    SDI Audio Outputs
    16 channels embedded audio.

    HDMI Audio Inputs
    8 channels embedded audio.

    HDMI Audio Outputs
    8 channels embedded audio.

    Remote Control
    1 x RS-422 In, 1 x RS-422 Out.

    Recorder Configuration
    Via user interface or Blackmagic HyperDeck Ethernet Protocol.

    Ethernet
    1Gb/s

    Computer Interface
    1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
