Blackmagic Design HyperDeck Studio HD Plus
UPC/EAN #9338716007121
MPN #HYPERD/ST/DCHP
Compact broadcast-quality record/playback deck with 6G-SDI in and out, support to record and playback ProRes up to Ultra HD 30fps, and and HDR support
Professional broadcast decks that record and playback using SD cards and SSD media!
HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!
Elegantly Designed Professional Broadcast Deck

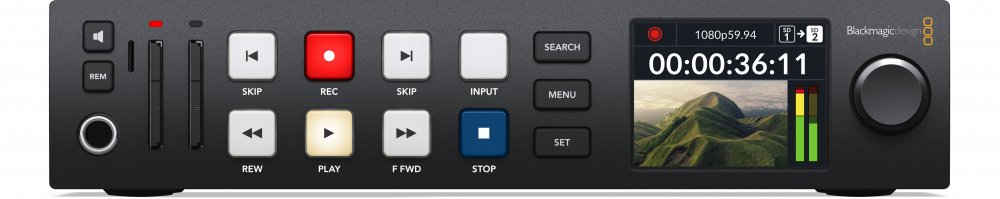

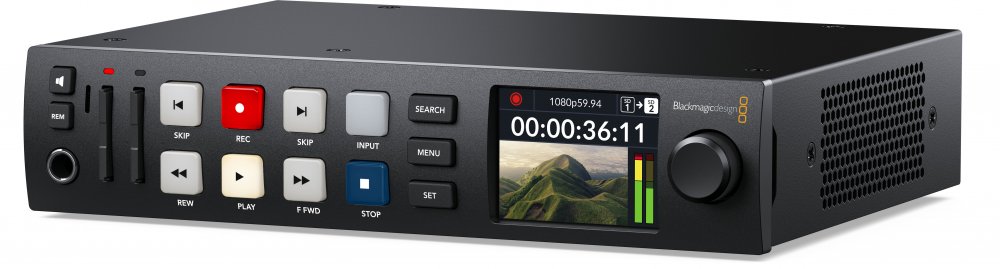

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!
4 Great HyperDeck Models!
There are 4 different models of HyperDeck Studio, perfect for all types of work! The 3G-SDI based HD Mini model records and plays H.264, ProRes or DNxHD files onto SD cards, UHS-II cards or external USB disks in SD and HD formats up to 1080p60. The larger HD Plus model adds better transport controls, front panel headphone and speaker, 6G-SDI with fill and key out, SDI monitoring and records H.264 up to 1080p60 or ProRes and DNxHD up to 2160p30. The full rack HD Pro model is the same as the HD Plus model but adds 2 SSD slots and a machined metal search dial with clutch. The incredibly powerful 4K Pro model records H.264, H.265, ProRes or DNx in SD, HD and Ultra HD in standards up to 2160p60!

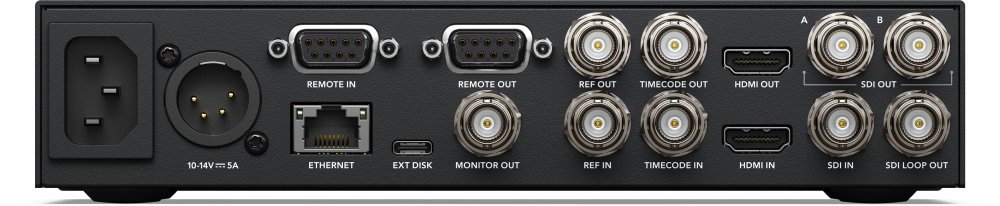

HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.
Features
6G-SDI in and outSupport to record and playback ProRes up to Ultra HD 30fpsHDMI outputSDI loop outHDR supportDual SD card media slotsDedicated 3G-SDI monitoring output with overlaysBuilt in sync and timecode generatorsFront panel controls
Specifications
SDI Video Inputs
1
SDI Video Outputs
2
SDI Monitor Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
Built in Speaker
Mono
Audio Output
1 x 6.35 mm headphone jack
Screen
2.2 inch LCD
Timecode Connections
1 x BNC In, 1 x BNC Out
Reference Connections
1 x BNC In, 1 x BNC Out
Tri-Sync or Black Burst
SDI Audio Inputs
16 channels embedded audio
SDI Audio Outputs
16 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Remote Control
1 x RS-422 In, 1 x RS-422 Out
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol
Ethernet
1Gb/s
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates
