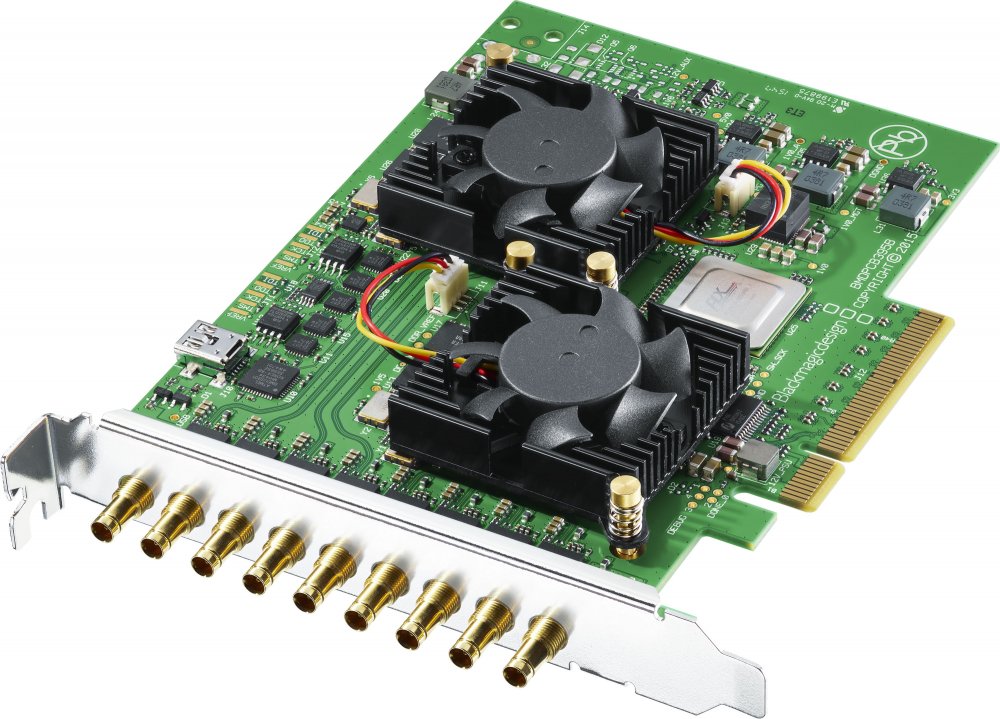

Blackmagic Design DeckLink Quad 2
UPC/EAN #9338716003468
MPN #BDLKDVQD2
PCI Express capture and playback card with 8 independent SDI capture and playback channels and support for SDI formats in SD and HD up to 1080p60
The world's highest performance capture cards for Mac, Windows and Linux
DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more! Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!
Perfect for Post Production SD, HD, Ultra HD, 4K and 8K!
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today's high end film, television and commercial post production. You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.
Highest Quality Connections
Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro includes quad link 12G-SDI, while other models feature single and dual link 6G and 12G'SDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro and DeckLink 4K Extreme 12G support additional high resolution DCI formats and higher frame rates!
DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
Features
8 independent SDI capture and playback channelsSupports SDI formats in SD and HD up to 1080p60Highest Quality ConnectionsUnrivaled Video Quality
Specifications
SDI Video Inputs
8 x bi-directional 12-bit SD/HD independently configurable as either Input or Output.
SDI Video Outputs
8 x bi-directional 12-bit SD/HD independently configurable as either Output or Input.
SDI Audio Inputs
16 channels embedded in SD and HD.
SDI Audio Outputs
16 channels embedded in SD and HD.
Sync Input
Tri-Sync or Black Burst.
Computer Interface
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
