Blackmagic Design ATEM SDI Extreme ISO
UPC/EAN #9338716007978
MPN #SWATEMMXEPCEXTISO
12-channel Video Production Studio with Livestream via Ethernet Hardware, Individual Input Recording, Video Switcher, 8 3G-SDI Inputs, 4 3G-SDI Outputs, 2 Mic Inputs and DVE
Introducing ultra portable live production with advanced broadcast features
ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!
A New Generation of Ultra Portable Live Production!
ATEM SDI gives you the portable design of ATEM Mini, but its SDI connections means you can connect advanced broadcast quality cameras and recorders. This opens up a whole new world of ultra portable live production. The incredibly portable design means you can fit a whole broadcast quality live production system in a small bag or even a backpack! You can use multiple cameras on location and live stream direct to YouTube, or create a broadcast quality link back to a studio with ATEM Streaming Bridge. Unlike single camera remote shoots, ATEM SDI lets you connect multiple cameras so you can create interesting remote interviews with multiple camera angles.
Self Contained Broadcast Quality Switcher

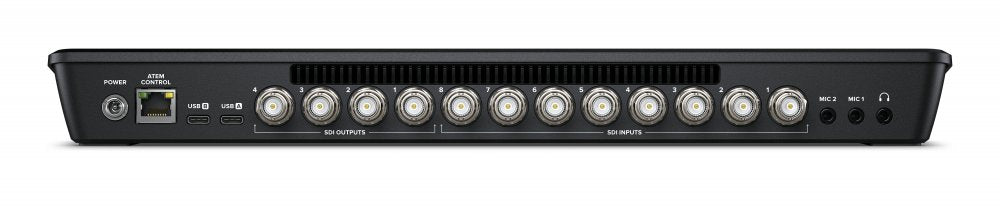

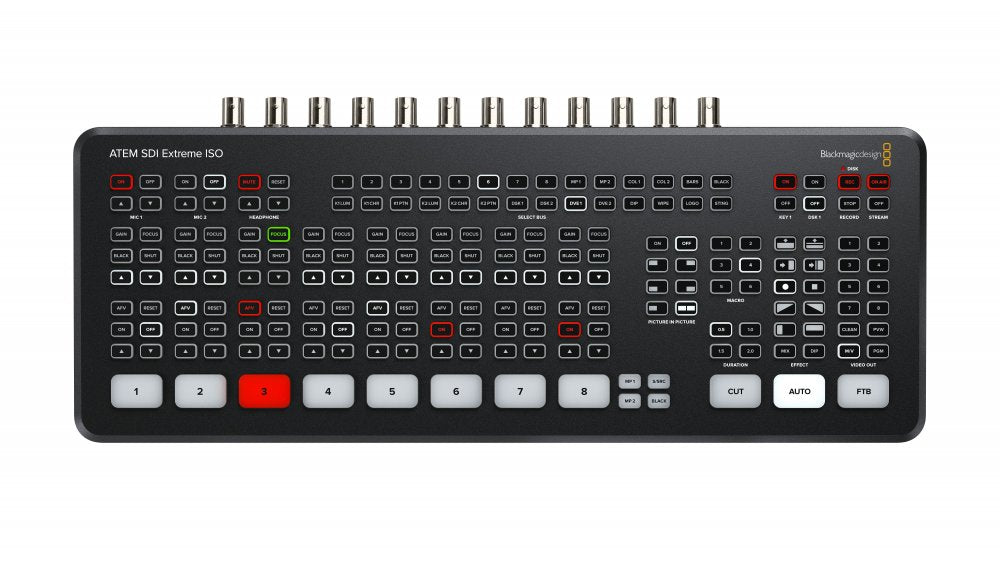

ATEM SDI's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! The ATEM SDI Pro and Extreme models have buttons for recording and streaming control, as well as output selection buttons that let you change the video output between program, direct camera feeds and the multiview. On the rear panel there are SDI connections for cameras, extra microphone inputs, USB for webcam plus multiple SDI "aux" outputs for program video.
ATEM SDI Extreme ISO
This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Features
Supports up to 1080p608-Channel 3G-SDI Live Streaming Switcher11-Input, 2-Channel Audio MixerHD Multiview Output with up to 16 Views4 x Upstream, 2 x Downstream KeyersRecord Program Out and Individual Inputs
Specifications
Connections
Total Video Inputs: 8Total Outputs: 6Total Aux Outputs: 4Total Audio Inputs: 2 x 3.5mm stereo mini jackTotal Audio Outputs: 1 x 3.5mm stereo mini jackTimecode Connection: NoneSDI Video Inputs: 8 x 3G-SDI, 10-bit HD switchable, 2 channel embedded audioVideo Input Re-Sync: On all 8 SDI inputsFrame Rate and Format Converters: On all 8 SDI inputsSDI Program Outputs: 4Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connectionComputer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
Standards
HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Ultra HD Video Standards: NoneVideo Sampling: 4:2:2 YUVColor Precision: 10-bitColor Space: Rec 709Colorspace Conversion: Hardware based real time
Product Specifics
Upstream Keyers: 4Downstream Keyers: 2Advanced Chroma Keyers: Up to 4Linear/Luma Keyers: Up to 4Transition Keyer: DVE onlyTotal Number of Layers: 9Pattern Generators: 5Color Generators: 2DVE With Borders and Drop Shadow: 2Interface: Minimum monitor resolution of 1366 x 768
Audio
Audio Mixer: 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain controlAnalog Input: Unbalanced stereoAnalog Input Delay: Up to 8 framesInput Impedance: 1.8kMax Input Level: +6dBVMic Plug In Power: Available on both 3.5mm mini jack connections
Streaming
Direct Streaming: ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB'C
Recording
Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external mediaVideo Recording: 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audioAudio Recording: 10 x 2 channel audio inputs recorded as separate 24'bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputsSwitching: Program switching recorded as a DaVinci Resolve project .drp fileMedia Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system
Multi View Monitoring
Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio MetersMulti View Video Standard: HD
Media Player
Media Player: 2Channels: Fill and key for each Media PlayerMedia Pool Still Image Capacity: 20 with fill and keyMedia Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
Control
Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panelControl Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB'C connection. Ethernet or USB'C used for updating the softwareControl Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control ProControl Panel Included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11
Power Requirements
Power Supply: 1 x External 12V power supplyPower Usage: 36W
Environmental Specifications
Operating Temperature: 5 C to 40 C (41 - 104 F)Storage Temperature: -10 to 60 C (14 to 140 F)Relative Humidity: 0% to 90% non-condensing
What's Included
ATEM SDI Extreme ISOExternal 12V DC power supply with international socket adapters
