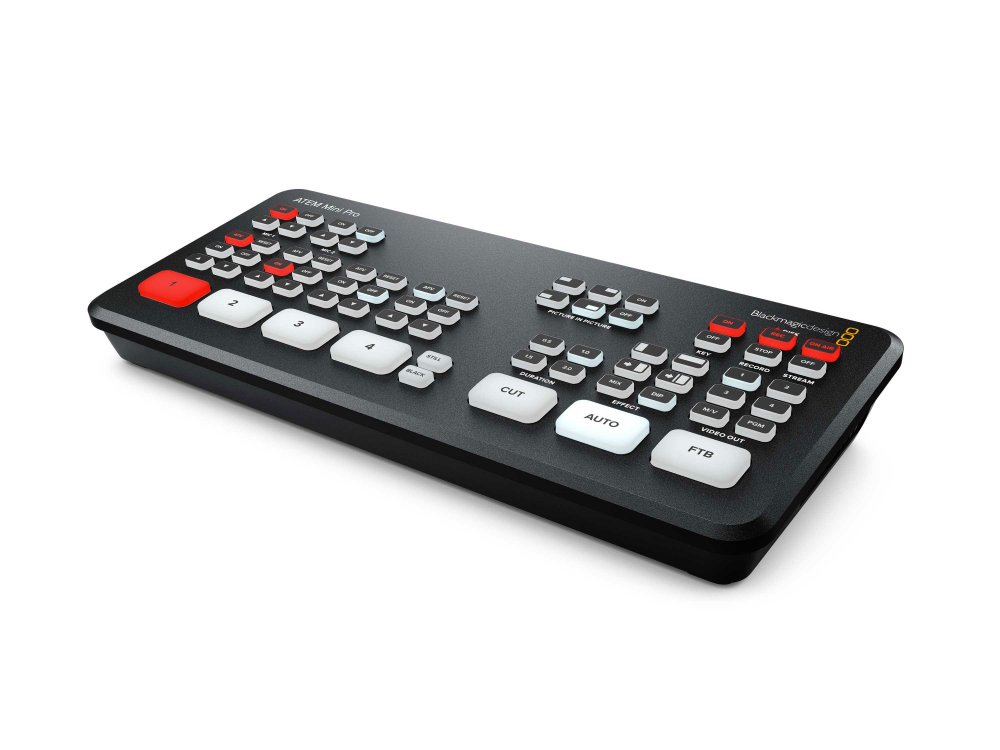

Blackmagic Design ATEM Mini Pro

UPC/EAN #9338716006797 MPN #SWATEMMINIBPR

$425.00

Be the first to write a review

Free shipping in Canada. Conditions

4-input live switcher with DVE for picture in picture, Fairlight audio mixer with EQ and dynamics, direct streaming via Ethernet to YouTube Live and more

Introducing low cost, multi camera, live production with advanced broadcast features.

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Zoom, Teams or Skype! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! ATEM Mini has a built in hardware streaming engine for live streaming via ethernet, or stream via the USB which also works like a webcam. ATEM Mini even has secret broadcast features for high end work!

Faster Video Production plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. ATEM Mini models feature a built in hardware streaming engine, which works with any streaming software so you can directly stream via ethernet to popular social media platforms! With up to 8 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more!

Self Contained Broadcast Quality Switcher

ATEM Mini's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! You also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers or even gaming consoles, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.

ATEM Mini Pro

Powerful live switcher with 4 HDMI inputs, hardware streaming engine, recording to USB disks, USB webcam out, audio mixer, 2D DVE, transitions, green screen chroma key, 20 stills for titles and more!

Features

HDMI Output, Ethernet ATEM Control

Media Player, Computer Input Support

Live Tally, Stream and Record Status

4-Channel Live Stream HDMI Switcher

Control up to Four BMPCC 6K/4K Cameras

DVE Transition, Chroma/Luma Keyers

Color and Pattern Generators

Specifications

Connections

Total Video Inputs: 4

Total Outputs: 2

Total Aux Outputs: 1

Total Audio Inputs: 2 x 3.5mm stereo mini jack

Total Audio Outputs: None, embedded audio only.

Timecode Connection: None

HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio

Video Input Re-Sync: On all 4 HDMI inputs

Frame Rate and Format Converters: On all 4 HDMI inputs.

HDMI Program Outputs: 1

Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection

Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

HD Video Input Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards: None

Video Sampling: 4:2:2 YUV

Color Precision: 10-bit

Color Space: Rec 709

HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion: Hardware based real time

Product Specifics

Upstream Keyers: 1

Downstream Keyers: 1

Advanced Chroma Keyers: 1

Linear/Luma Keyers: 2

Transition Keyer: DVE only

Total Number of Layers: 5

Pattern Generators: 1

Color Generators: 2

DVE with Borders and Drop Shadow: 1

Interface: Minimum monitor resolution of 1366 x 768

Audio

Audio Mixer: 6 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control

Analog Input: Unbalanced stereo

Analog Input Delay: Up to 8 frames

Input Impedance: 1.8k

Max Input Level: +6dBV

Mic Plug In Power: Available on both 3.5mm mini jack connections

Streaming

Direct Streaming: ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB'C

Recording

Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard

Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Multi View Monitoring

Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters

Multi View Video Standard: HD

Media Player

Media Players: 1

Channels: Fill and key for each Media Player

Media Pool Still Image Capacity: 20 with fill and key

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF

Control

Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software

Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel

Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only

Environmental Specifications

Operating Temperature: 5 C to 40 C (41 - 104 F)

Storage Temperature: -10 to 60 C (14 to 140 F)

Relative Humidity: 0% to 90% non-condensing

What's Included

ATEM Mini Pro

External 12V DC power supply with international socket adapters
