Blackmagic Design ATEM Mini Extreme
UPC/EAN #9338716007299
MPN #SWATEMMINICEXT
8-input live production switcher with 6 picture in picture DVEs, Fairlight audio mixer with EQ and dynamics, and direct streaming via Ethernet to YouTube Live and more
Introducing low cost, multi camera, live production with advanced broadcast features.
ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Zoom, Teams or Skype! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! ATEM Mini has a built in hardware streaming engine for live streaming via ethernet, or stream via the USB which also works like a webcam. ATEM Mini even has secret broadcast features for high end work!
Faster Video Production plus Live Streaming
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. ATEM Mini models feature a built in hardware streaming engine, which works with any streaming software so you can directly stream via ethernet to popular social media platforms! With up to 8 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more!
Self Contained Broadcast Quality Switcher

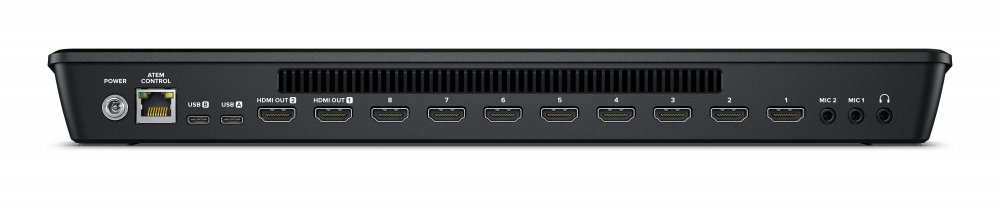

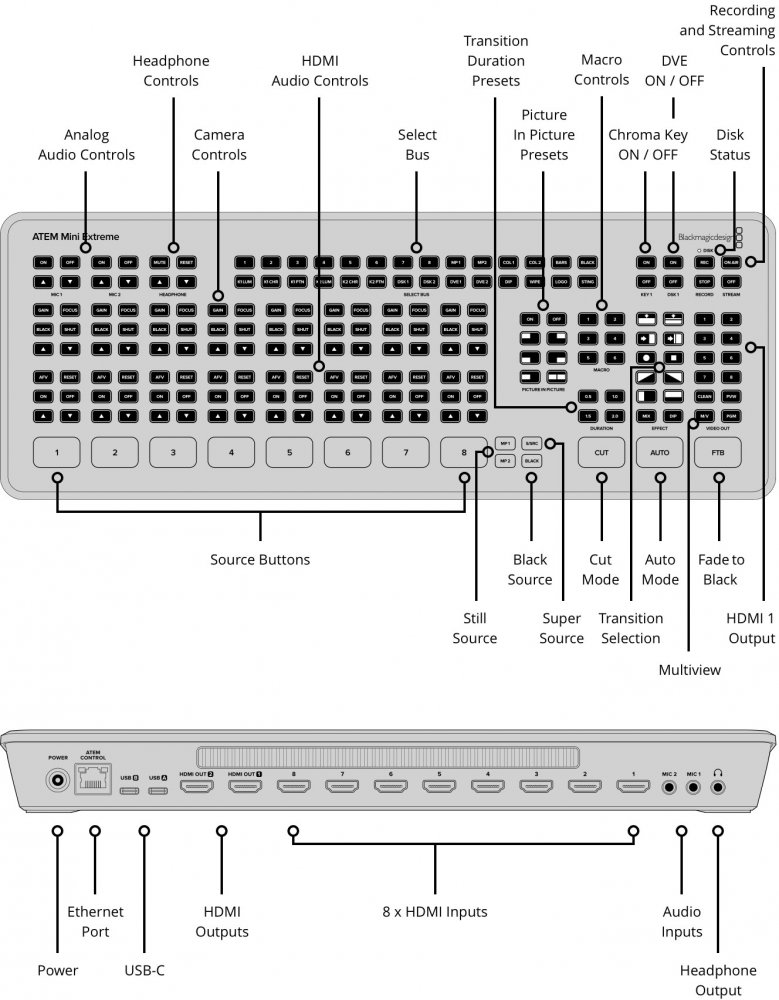

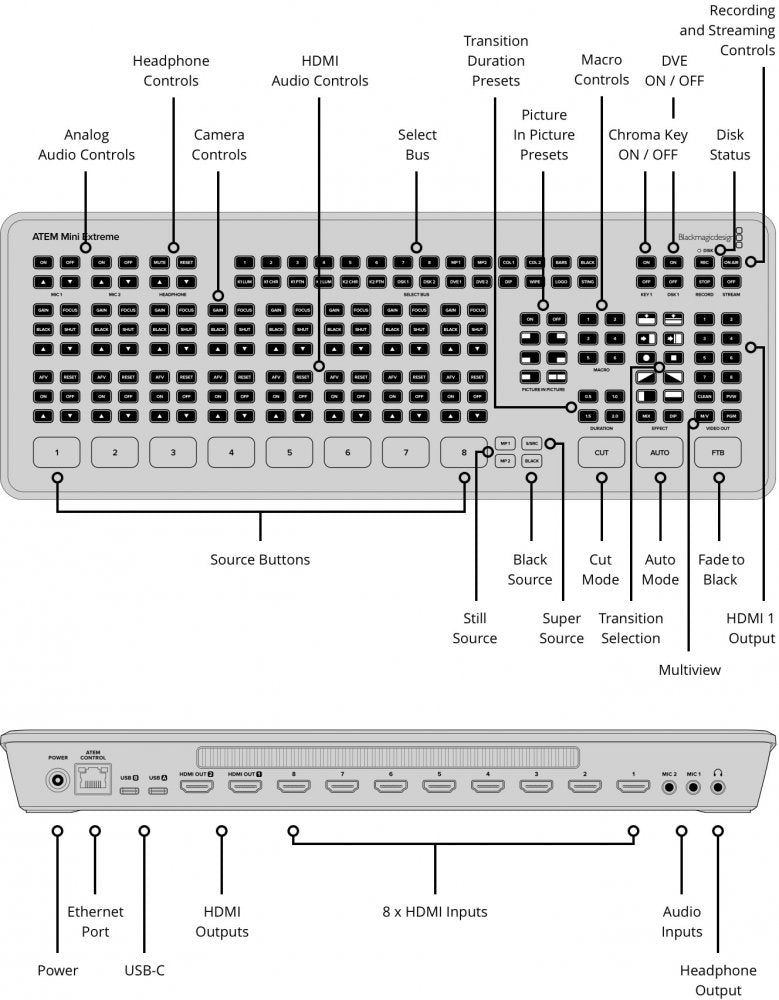

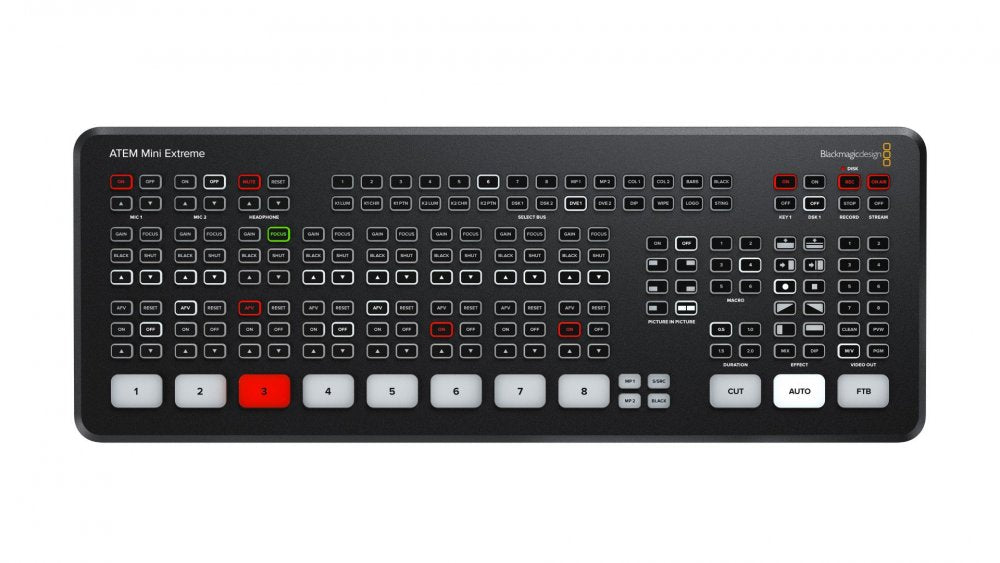

ATEM Mini's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! You also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers or even gaming consoles, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
Features
8 HDMI inputs, 2 HDMI outputs2 USB ports3.5mm headphone port for monitoringDual 3.5mm microphone inputs4 ATEM Advanced Chroma keyers6 picture in picture DVEs2 media playersMultiview with up to 16 custom programmable views
Specifications
Connections
Total Video Inputs: 8Total Outputs: 2Total Aux Outputs: 2Total Audio Inputs: 2 x 3.5mm stereo mini jackTotal Audio Outputs: 1 x 3.5mm stereo mini jackTimecode Connection: NoneHDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audioVideo Input Re-Sync: On all 8 HDMI inputsFrame Rate and Format Converters: On all 8 HDMI inputsHDMI Program Outputs: 2Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connectionComputer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
Standards
HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Ultra HD Video Standards: NoneVideo Sampling: 4:2:2 YUVColor Precision: 10-bitColor Space: Rec 709HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60HzColorspace Conversion: Hardware based real time
Product Specifics
Upstream Keyers: 4Downstream Keyers: 2Advanced Chroma Keyers: Up to 4Linear/Luma Keyers: Up to 4Transition Keyer: DVE onlyTotal Number of Layers: 9Pattern Generators: 5Color Generators: 2DVE With Borders and Drop Shadow: 2Interface: Minimum monitor resolution of 1366 x 768
Audio
Audio Mixer: 11 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain controlAnalog Input: Unbalanced stereoAnalog Input Delay: Up to 8 framesInput Impedance: 1.8kMax Input Level: +6dBVMic Plug In Power: Available on both 3.5mm mini jack connections
Streaming
ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB'C
Recording
Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external mediaVideo Recording: 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audioMedia Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system
Multi View Monitoring
Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio MetersMulti View Video Standard: HD
Media Player
Media Players: 2Channels: Fill and key for each Media PlayerMedia Pool Still Image Capacity: 20 with fill and keyMedia Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
Control
Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panelControl Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme ISO also supports direct USB'C connection. Ethernet or USB'C used for updating the softwareControl Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control ProControl Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only
Environmental Specifications
Operating Temperature:5 C to 40 C (41 - 104 F)Storage Temperature: -10 to 60 C (14 to 140 F)Relative Humidity: 0% to 90% non-condensing
What's Included
ATEM Mini Extreme ISOExternal 12V DC power supply with international socket adapters
